Stonex S10 GNSS Receiver – User Manual 15
4. S10 Operations

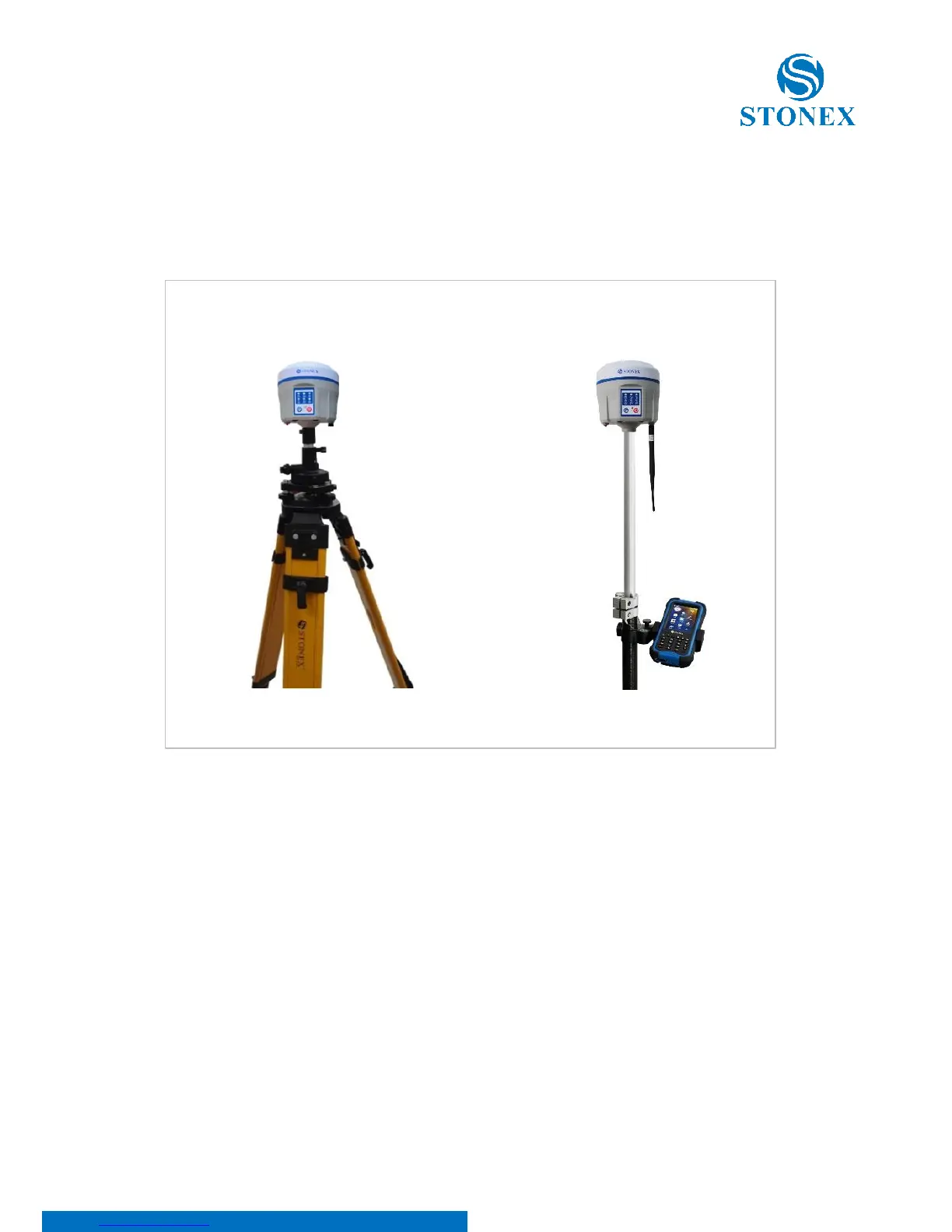

4.1. The installation of base and rover
Installation of Base
1) Once a tripod is open on the chosen base point, fix the tribrach and mount
the receiver on it.
2) Screw the transmitting radio antenna into the port “UHF”: using the 40cm
supporting pole P/N 30-350057 is suggested, in order to increase the antenna
height.
3) Switch on the receiver and select the base working mode.
