STONEX S10 - Declination (Compass) Calibration

Stonex S10 GNSS Receiver – User Manual 39

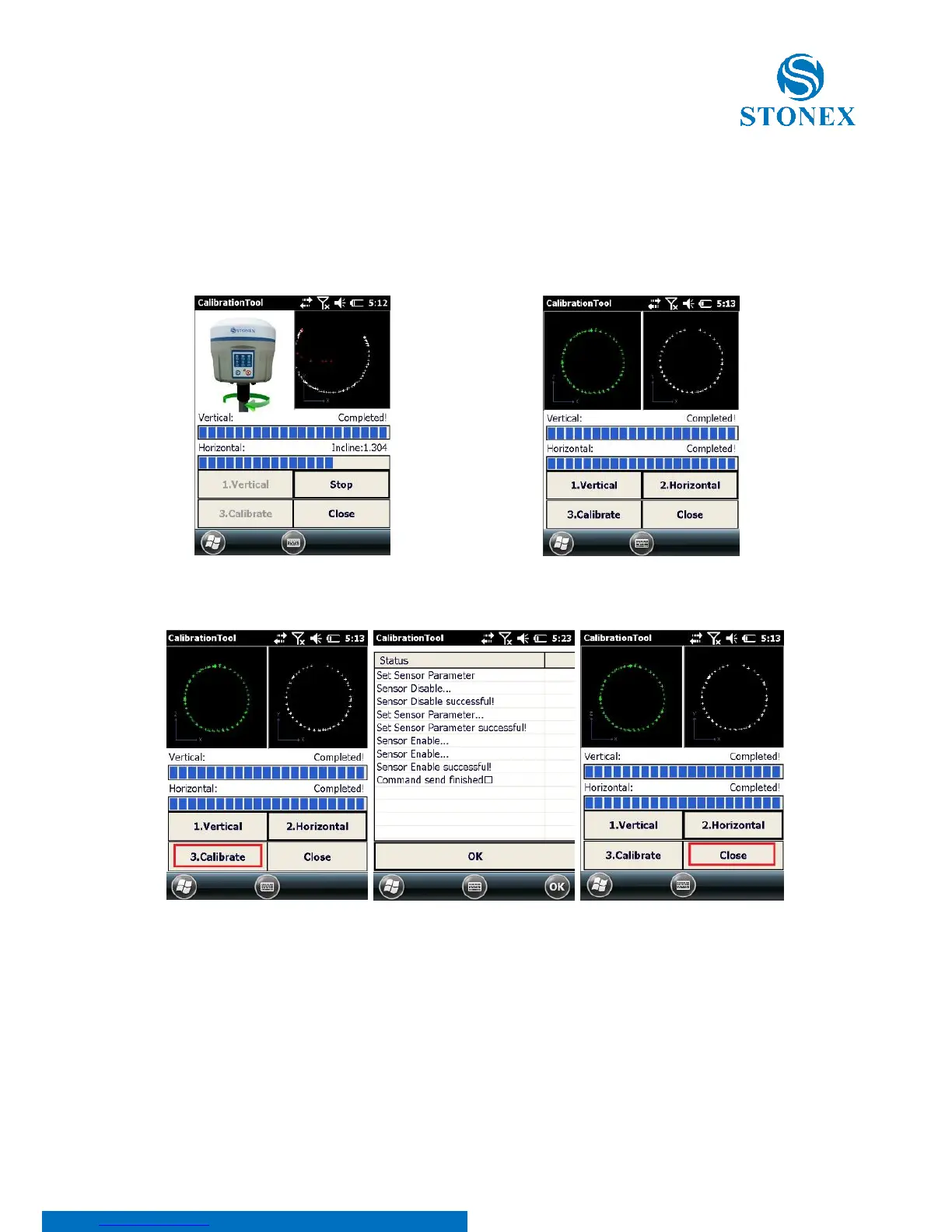

Slowly rotate the S10 (the rotation would be last from 1 to 2 minutes) as shown
on the display; check at any time that pole bubble is centered. A green circle
shows the quality of the rotation. After the rotation is completed (360°) a beep
indicates that this operation is finished.
 Points 6.1.1 and 6.1.2 DO NOT require the receiver in FIXED status.
6.1.3 Declination (compass) calibration
The Declination operation accuracy has a great influence on the accuracy of
the tilted measurements.
 Check the FIXED status of the receiver if not previously activated;
1. Click on Calibrate…
2. …and confirm the message
3. Click on Close.
