Stonex S10 GNSS Receiver – User Manual 29

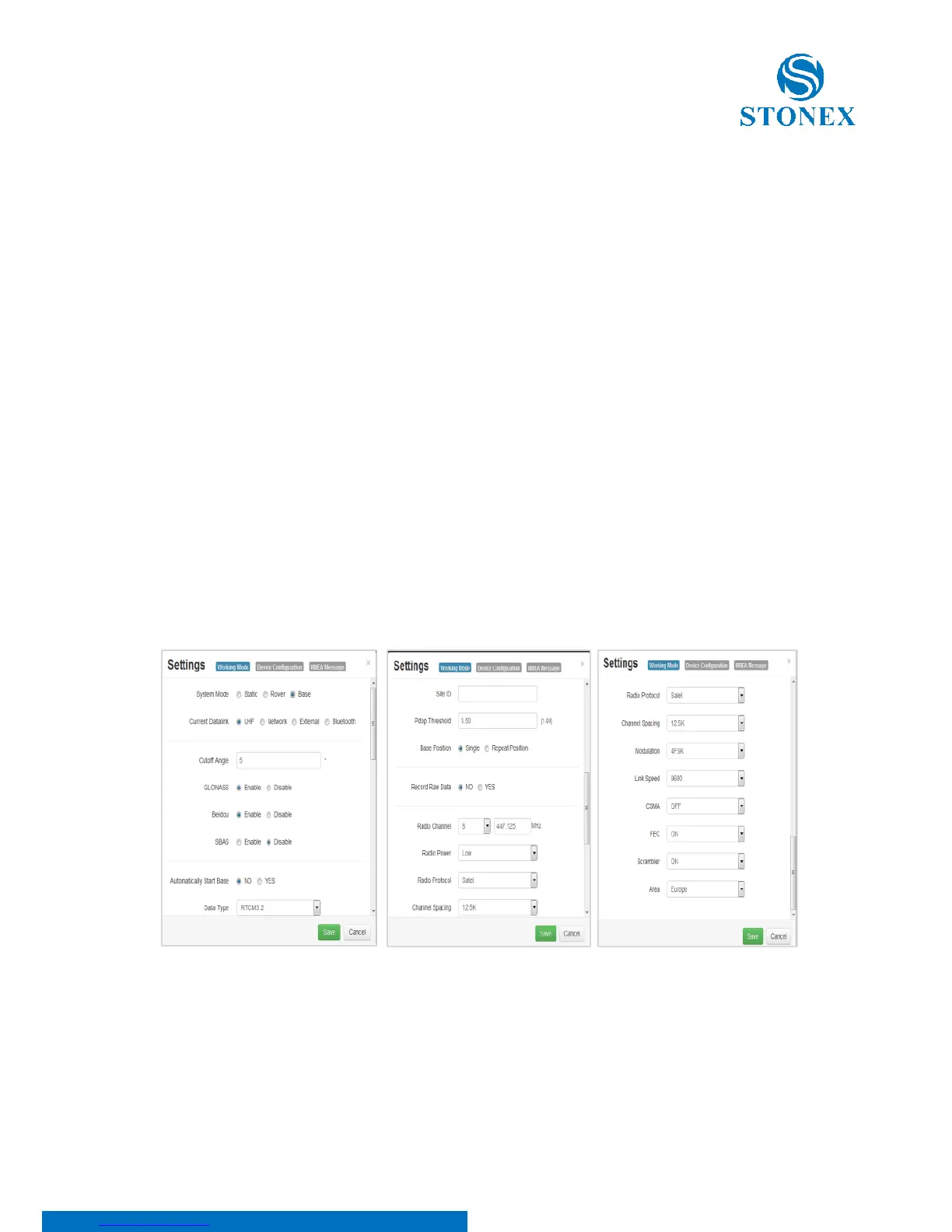

5.4. Base Mode
Used to set the receiver S10 in ‘BASE’ mode. The Base can be connected to the
rover through different data link.
5.4.1. Option UHF
For connections through UHF radio channel.
It is possible to set the automatic start of the Base (S10 Base automatically
broadcasts the differential corrections without any action by the operator ),
select the type of differential correction (RTCM3.x, RTCM2.x, CMR, etc).
Are requested:
 The name of the Base (station) point
 the max. value of PDOP allowed to record a point inside the raw data
file
 the geographical coordinates of the point where there is located the
base (function accessible by selecting the check box "Repeat
Position"
 the frequencies of radio channels.
Finally the broadcasted power and the radio protocol to use must be selected.
The following are used for advanced configuration of the radio:
 Power of broadcasting: it can be 0.5W or 2W.
 Width of the desired channel: 12.5 or 25 kHz.
 Modulation Type: Must be consistent with the protocol set.
 Selectable mode phase (GMSK) and frequency (4FSK).
