Stonex S980A GNSS Receiver – User Manual v1.0
13
2.3 Static Survey

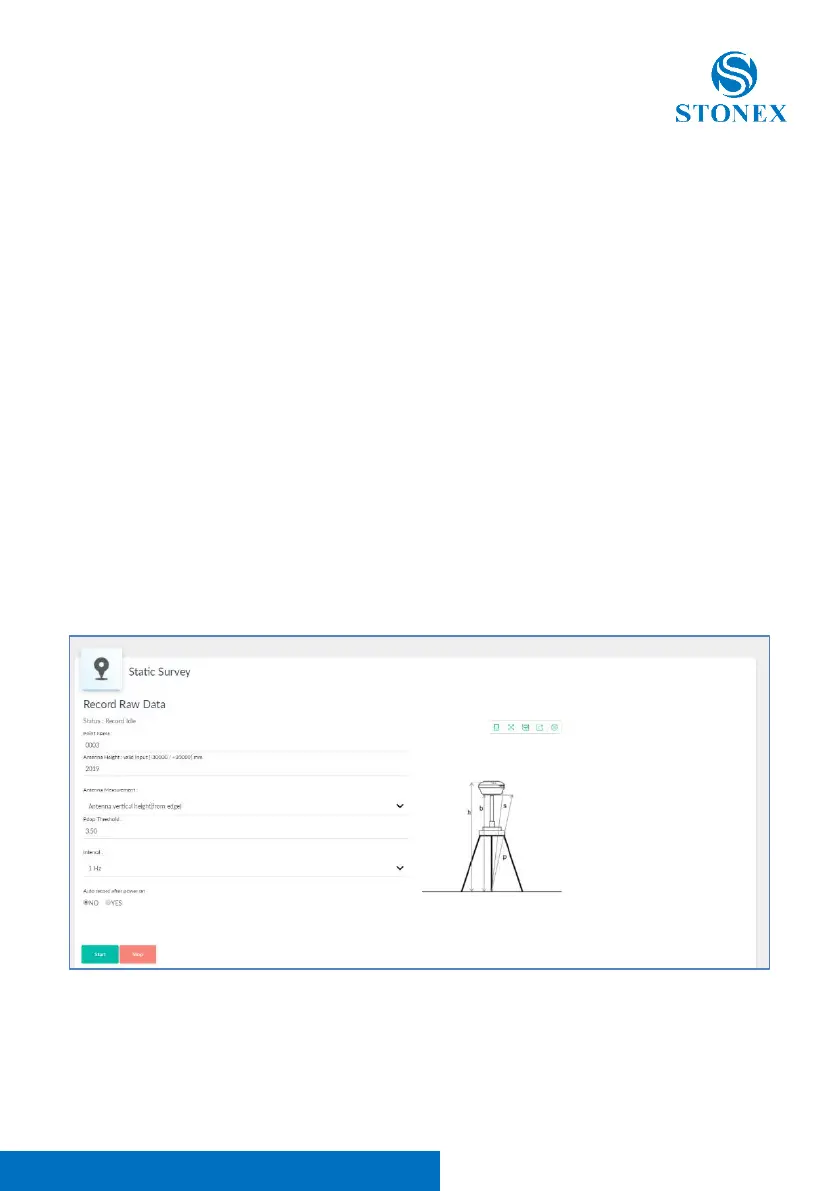

As the pictures shows, in static survey, the user can input the point name,
antenna height, PDOP threshold, antenna measurement and sample interval.
These are all the parameters that can be used in a static survey.
Antenna height options available are:
• Antenna phace center
• Antenna slant height mode
• Antenna vertical height (from edge)
• Altimeter pieces
• Antenna vertical height (from bottom)
The following picture shows the type of heights well detailed.
At last, there are two record options. If you activate auto record, it will collect
data automaticly when you power on the receiver.
