Appendix A
Control Input
The DMX512 output is a multiplexed digital control signal conforming to USITT specification
DMX512 (1990). Details of this specification are available from USITT on request.

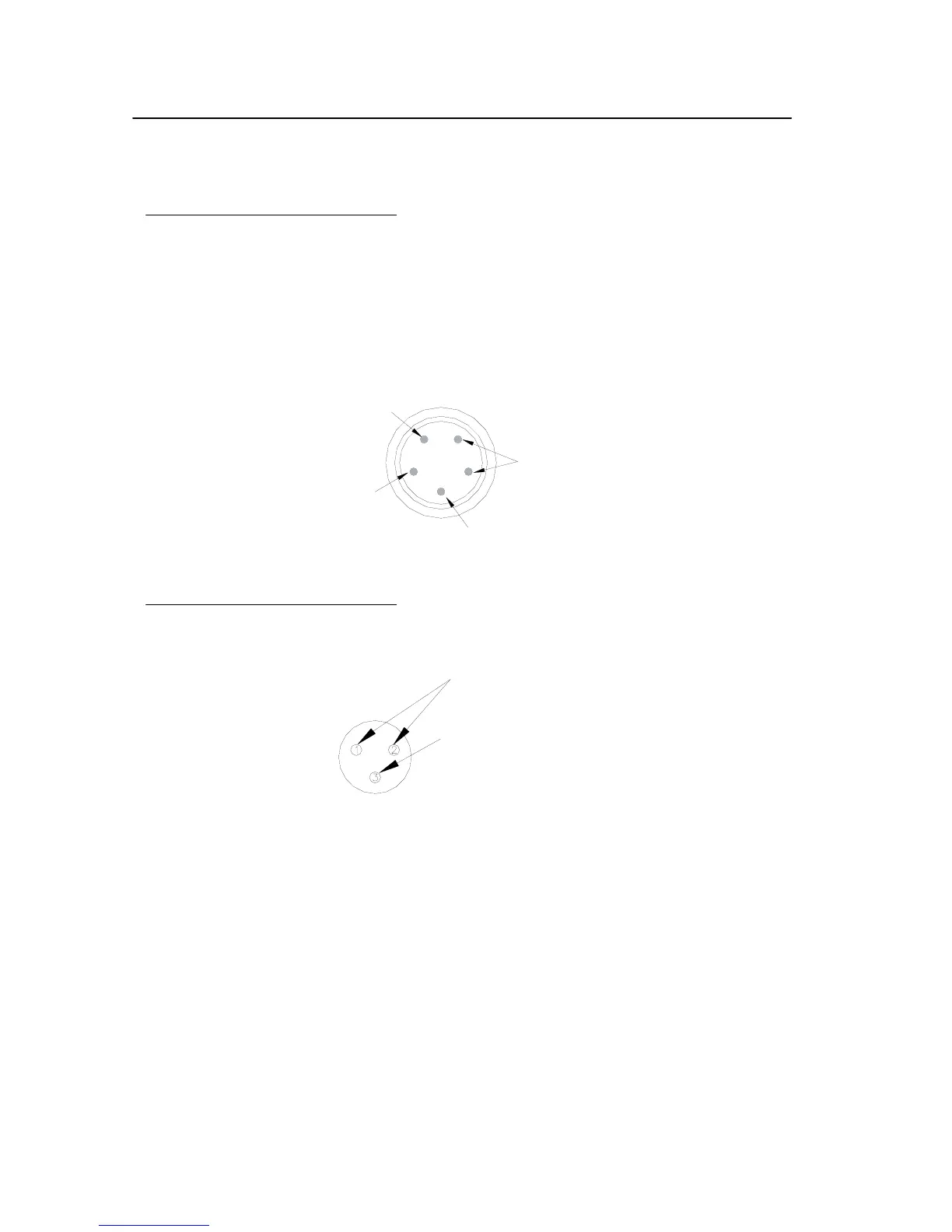

The control input is via a five-pin male XLR type connector. Pin connections are shown in
Figure 9. A five-pin female XLR connector is fitted to allow dimmers (or other DMX
equipment) to be connected together in ‘daisy chain’ fashion.
Audio Input
GROUND
SIGNAL
1
2
3
4
5
SHIELD
NOT CONNECTED
DMX -
DMX +
