5. Using a 13 mm socket wrench, remove the screws (16) securing the printer’s structural
lifting channels (2) to the shipping base retention brackets (4).

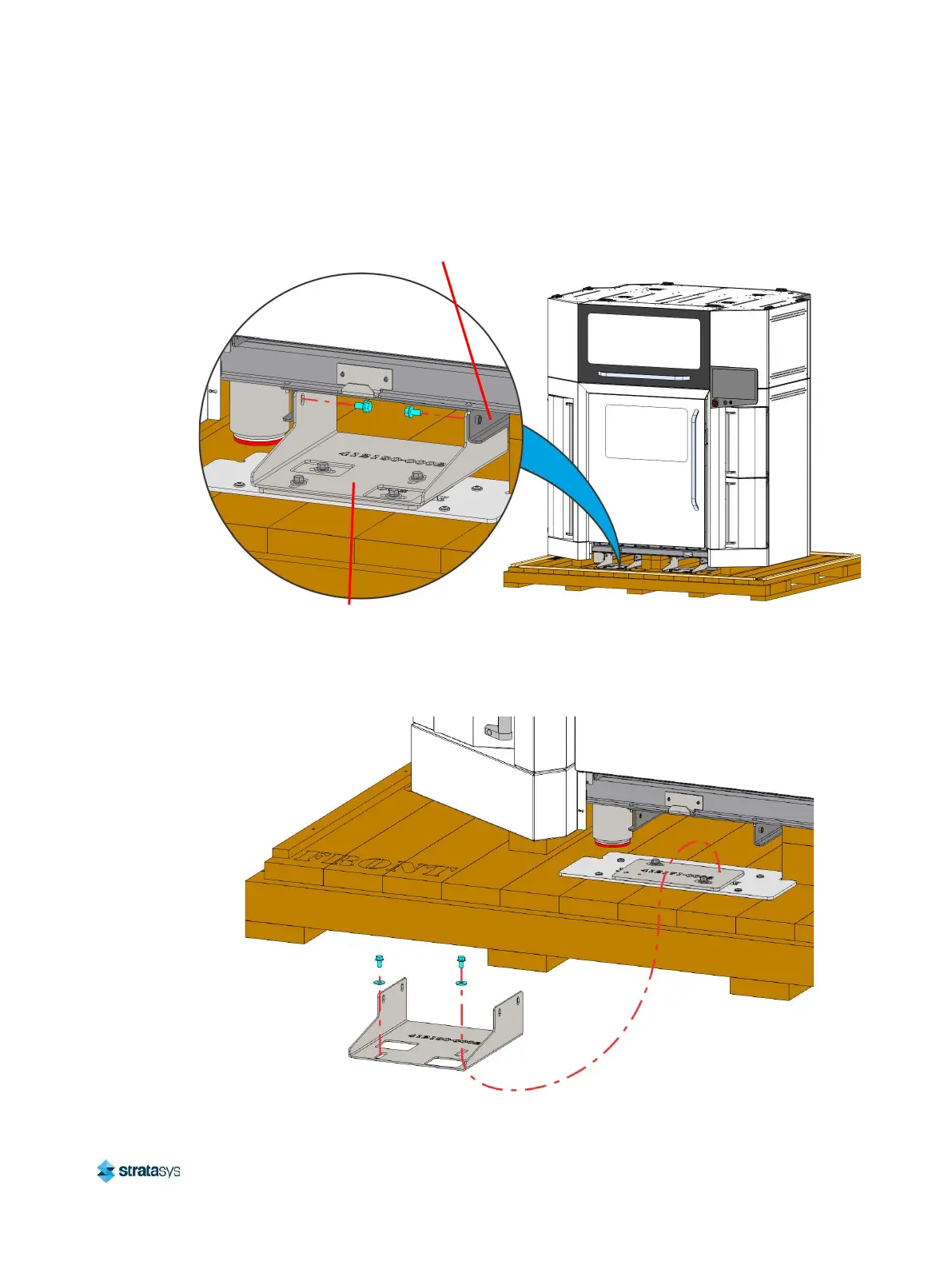

Figure 14: Removing the printer retention screws from the lifting channels
6. Using a 13 mm socket wrench, remove the screws and washers (8 sets) securing the
retention brackets (4) to the shipping base. Remove the retention brackets.
Figure 15: Removing the retention brackets
Shipping Base Retention Bracket (Qty 4)
Printer Structural Lifting Channel (Qty 2)
