Objet500 User Guide 6 Operating and Maintaining the Objet500 3DPrinter
DOC-07027 Rev.E 6-63
4. Makesurethatthebuildtrayisinplaceandclear(empty),confirmthisin
thewizardscreenandclickNext.

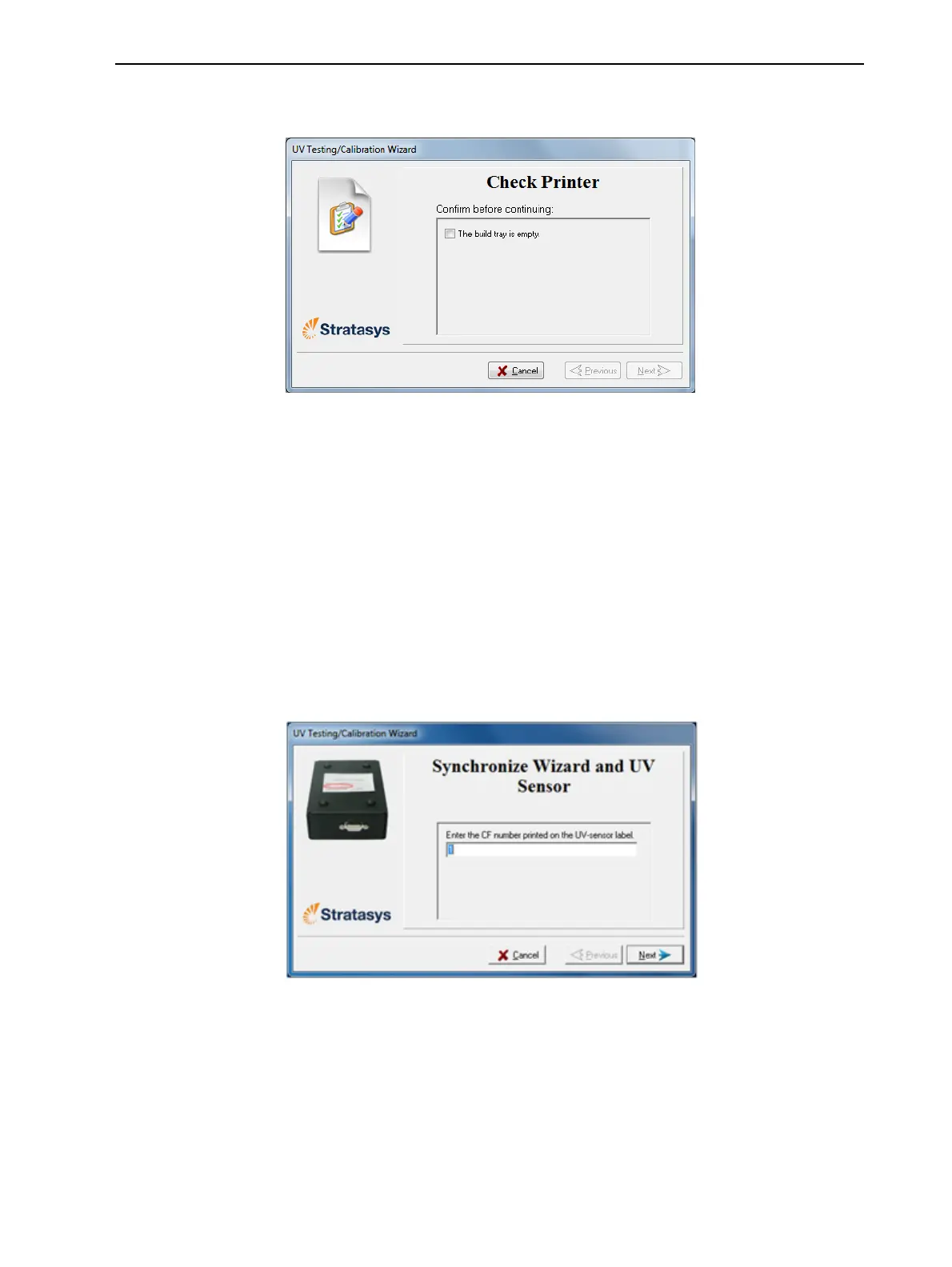

Figure6-90Printerpreparation
➢ WhenusingaStratasysUVsensorboxthatyouconnecttotheprinter
(TOL-03005-S),continuewith"UVSensorConnectedtoPrinter"below.
➢ Whenusingastand-aloneUVradiationmeter,continuewith"External
UVMeter"onpage6-65.
UVSensorConnectedtoPrinter
ThefollowingstepsapplywhenusingtheStratasysUVsensorboxthatyou
connecttotheprinter.TheydonotapplywhenusingaUVexternalradiation
measuringdevice.
1. TosynchronizethewizardandtheUVsensor,entertheCFnumberfrom
thelabelonthebackoftheUVsensorboxandclickNext.
Figure6-91UVsensorsynchronization
