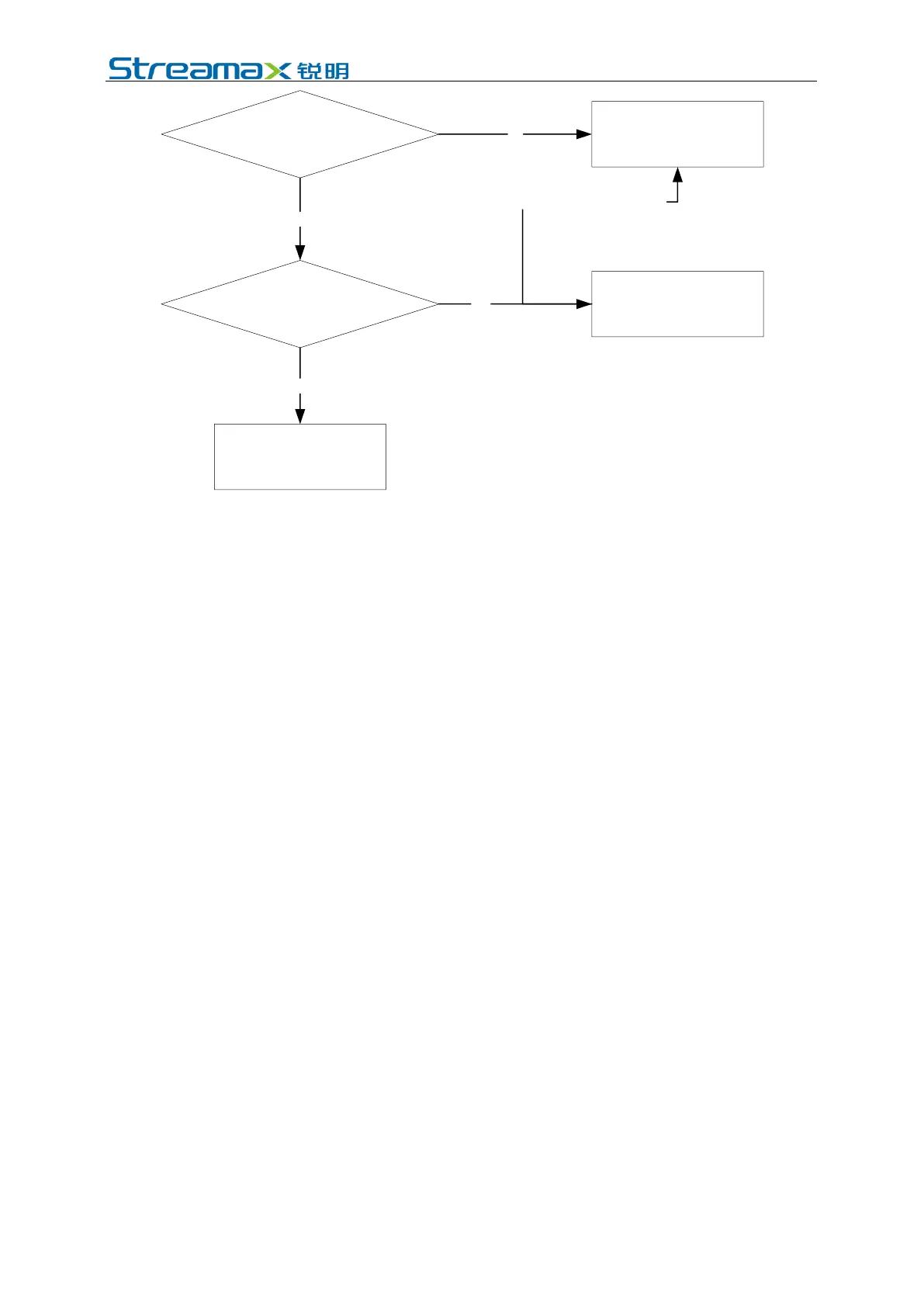

Choose countertop-mounted
CA29M
Choose side-mounted CA29M?
Airbag on A-pillar?
Choose CA29M with a glass
mounting bracket
Choose conventional A-pillar
side-mounted CA29M
Yes
No
Yes
No
Guide the user to choose the countertop-mounted type
6.1.1 Requirements for Installation Position
1. If the A-pillar camera (CA29M, the recommended model under normal
circumstances) is selected, the DMS camera shall be installed on the driver
side A pillar, with the camera side facing the driver's face.
2. Distance from the DMS camera lens to the driver's face (the above three
CA29M cameras):
3 mm camera lens: It is suitable for scenarios where the distance from the
camera lens to the driver's face is 40~80cm, and the recommended installation
distance is 50~70 cm;
4mm camera lens: It is suitable for scenarios where the distance from the
camera lens to the driver's face is 70~100 cm, and the recommended
installation distance is 70~90 cm.
3. The height of the above three DMS cameras after installation must be
lower than that of the driver’s face, and the camera lens must have a low
angle of view. In principle, the closer the DMS camera is to the instrument
panel, the larger the low angle of view will be, which is favorable. However,
the DMS camera can be installed at a higher position, so that it won't be
obstructed by the steering wheel.
For large trucks, the recommended installation height range of the DMS
camera lens on the A-pillar or the front windshield is from the highest point of
the steering wheel to 10 cm above the highest point of the steering wheel.
