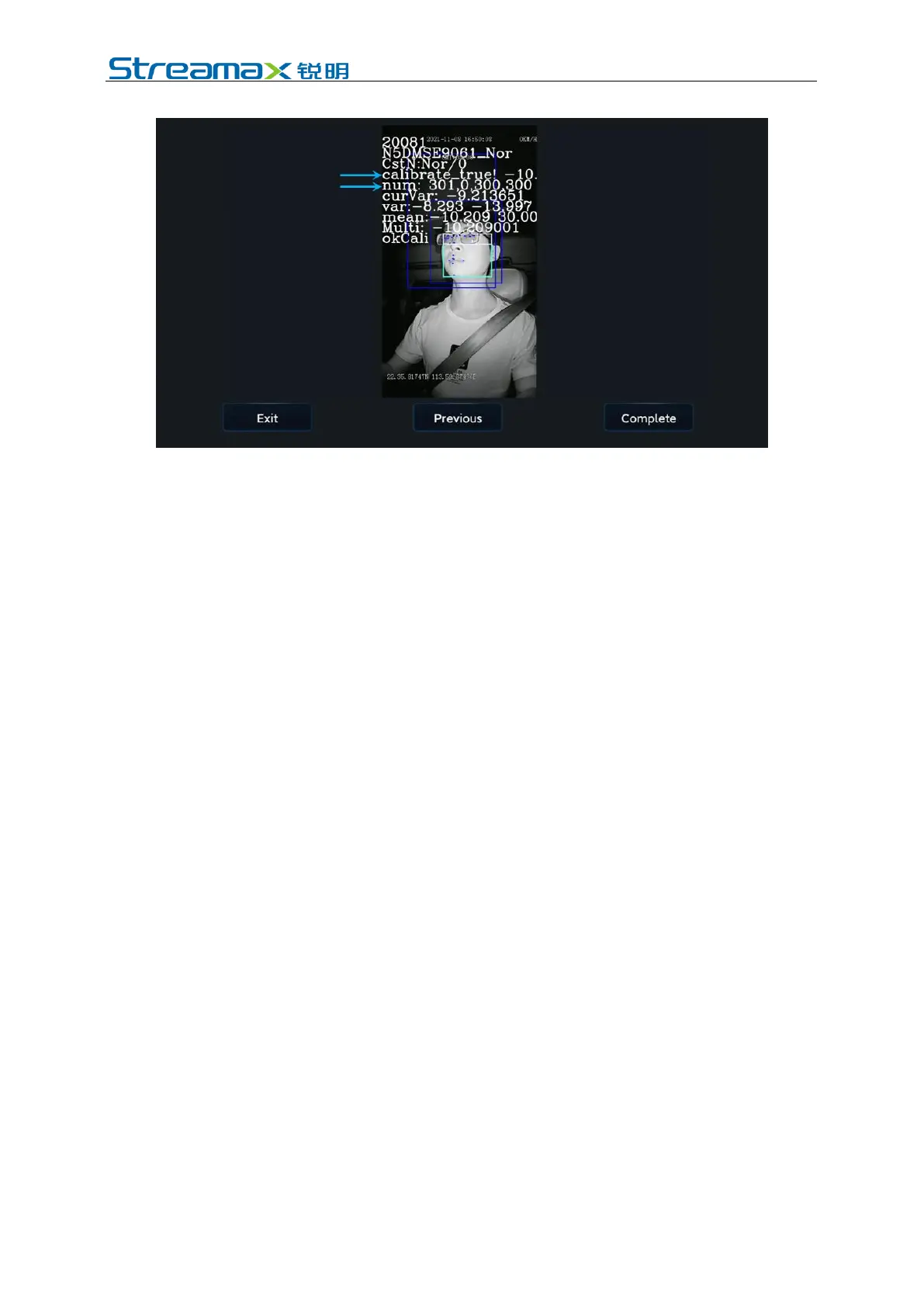

Calibration is completed:
Click Finish to complete the calibration and exit the calibration mode.
6.2 BSD Installation and Calibration
6.2.1 Top View Camera Installation and Calibration
For installation of top view cameras, namely the front-top view camera, right-top
view camera and left-top view camera, large wide-angle cameras are adopted and
installed near the front end. The cameras, through the top view angle, capture
pictures of blind spots on vehicle sides, and the AI intelligent algorithm is used to
determine whether there is a pedestrian in the blind spot.
The principles and steps of installation and calibration are the same for left and right
top view cameras.
The camera used is MiniC24-MA, and the camera installation effect refers to the
following figure.
