[Installation position]

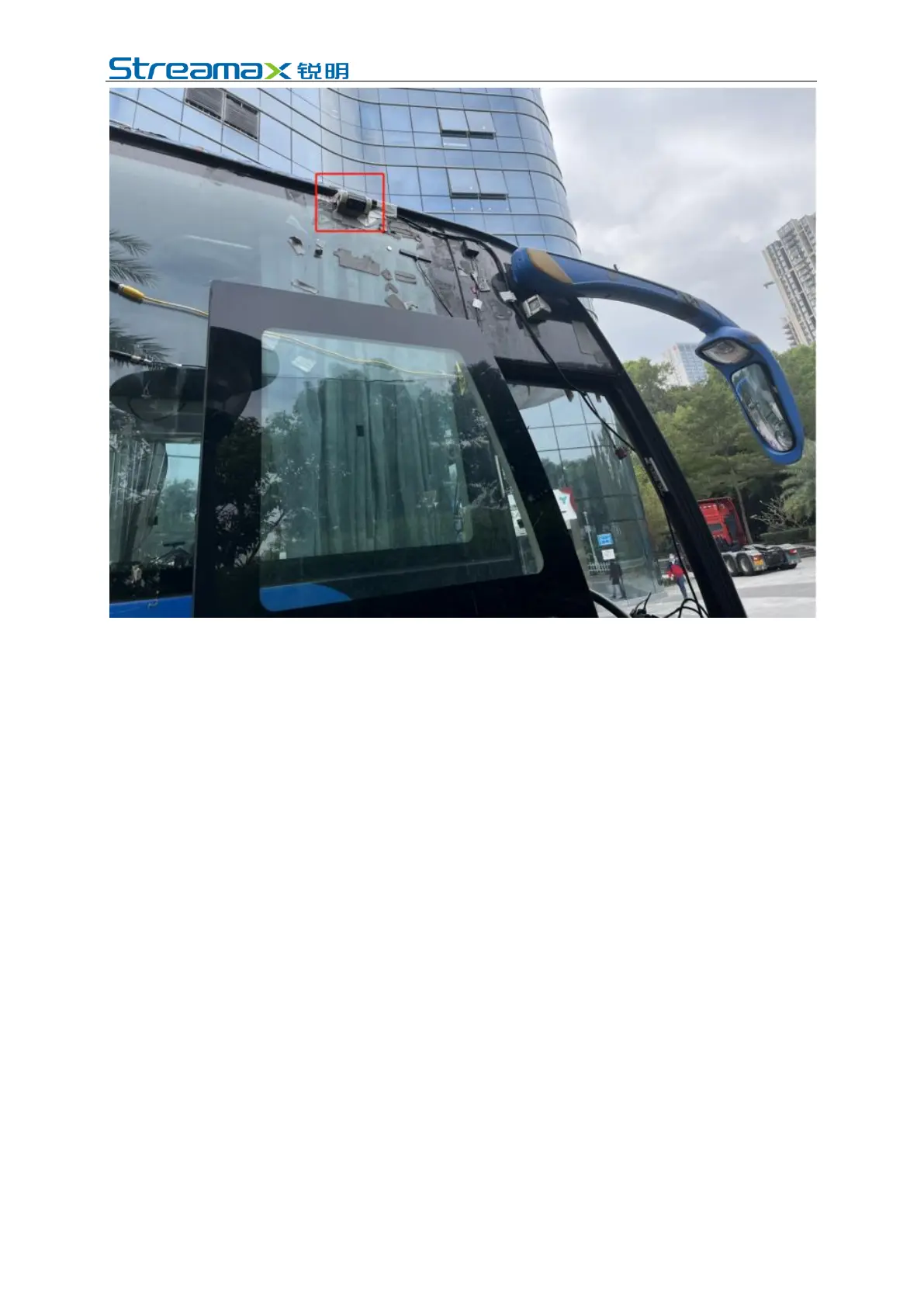

The camera shall be installed on the upper part of the front end, and the coverage
shall be 4m long on both the left and right sides, and 3m wide counting from the
line from the installation position vertically to the ground point. The specific
installation position shall be comprehensively considered according to the width of
the A-pillar of the actual vehicle, the height of the driver's seat, the vehicle type, the
rearview mirror condition, etc. For selecting the installation location, pay attention
to the following points:
1. The left and right sides of the installation position shall not be blocked by any
bulge.
2. The rearview mirrors, carriages, etc., cannot block BSD, otherwise, the camera
shall have a bracket customized, or the installation position changed.
3. The installation height shall be 210-400 cm, preferably 270-300 cm.
4. The installation location shall be finally determined based on the driver's
location and figure, which shall be selected as appropriate subject to the
realization of full coverage.
[Imaging Adjustment]
1. Rotate the ball head of the camera to adjust the screen. It is required that the
installed imaging image shall cover the pedestrian-detection area, and the area
must be located in the center of the image.
2. The lower center of the image must show a little vehicle body to ensure
coverage to the limit of the blind spot.
3. The lower edge of the image should not show too much of the vehicle body,
