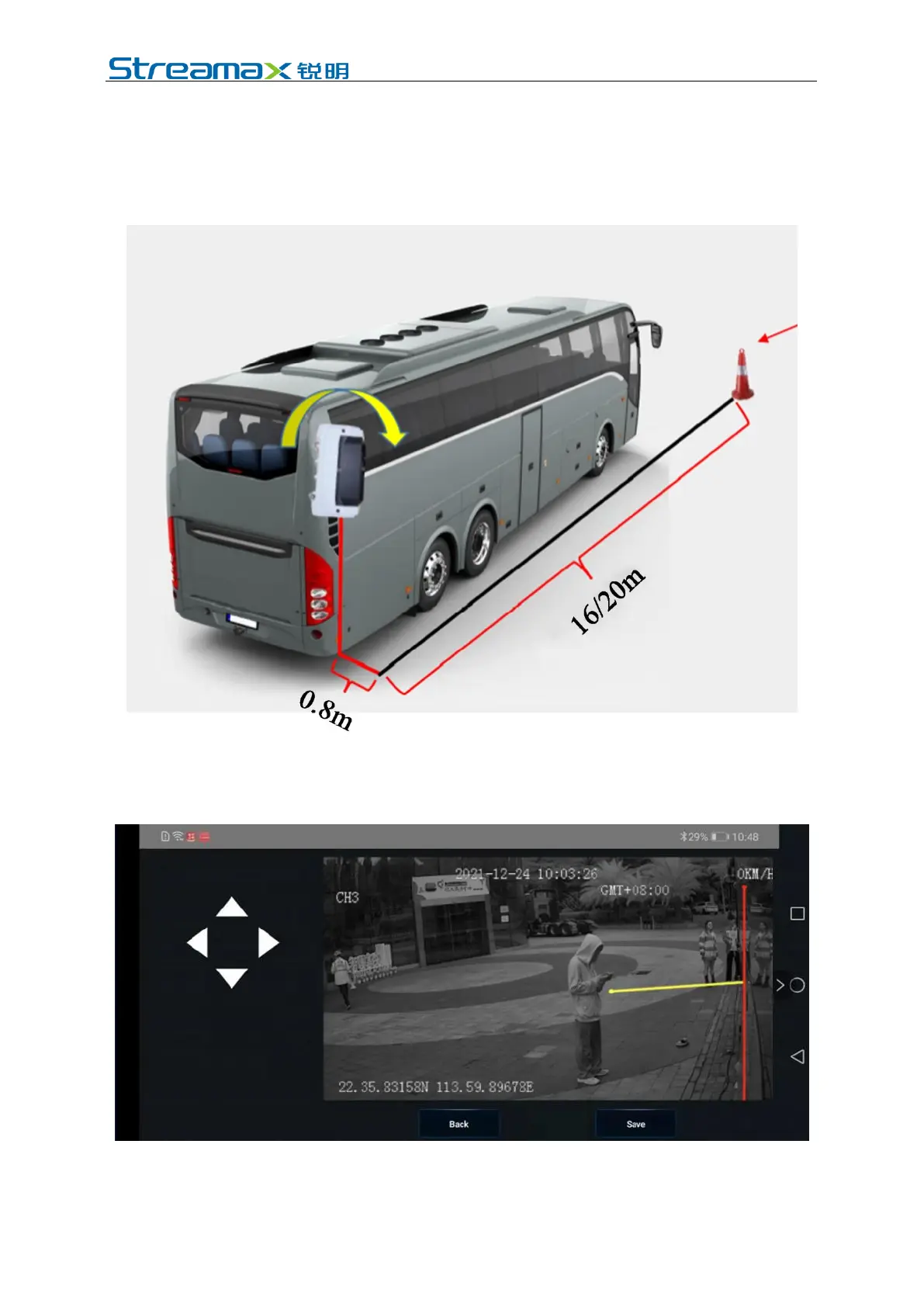

Step 6: Place the traffic cone at a location within the range of 2-3m longitudinally
distanced from the front end and 0.8m laterally distanced from the front end (the
specific location shall be determined based on the actual car situation; taking
the average height of drivers, it is suggested to sit into the vehicle to check the
size of the blind spot, and calibrate the blind spot on the viewing angle into the
screen, which shall prevail).
Make the red line stick to the left edge of the vehicle body, and the yellow line stick
to the lower edge of the traffic cone (it is the bottom of one's feet here); then, click
Save after the adjustment.
Now, the screen shows the installation height of the BSD camera, and the distance
from the BSD camera to the front end.
