7

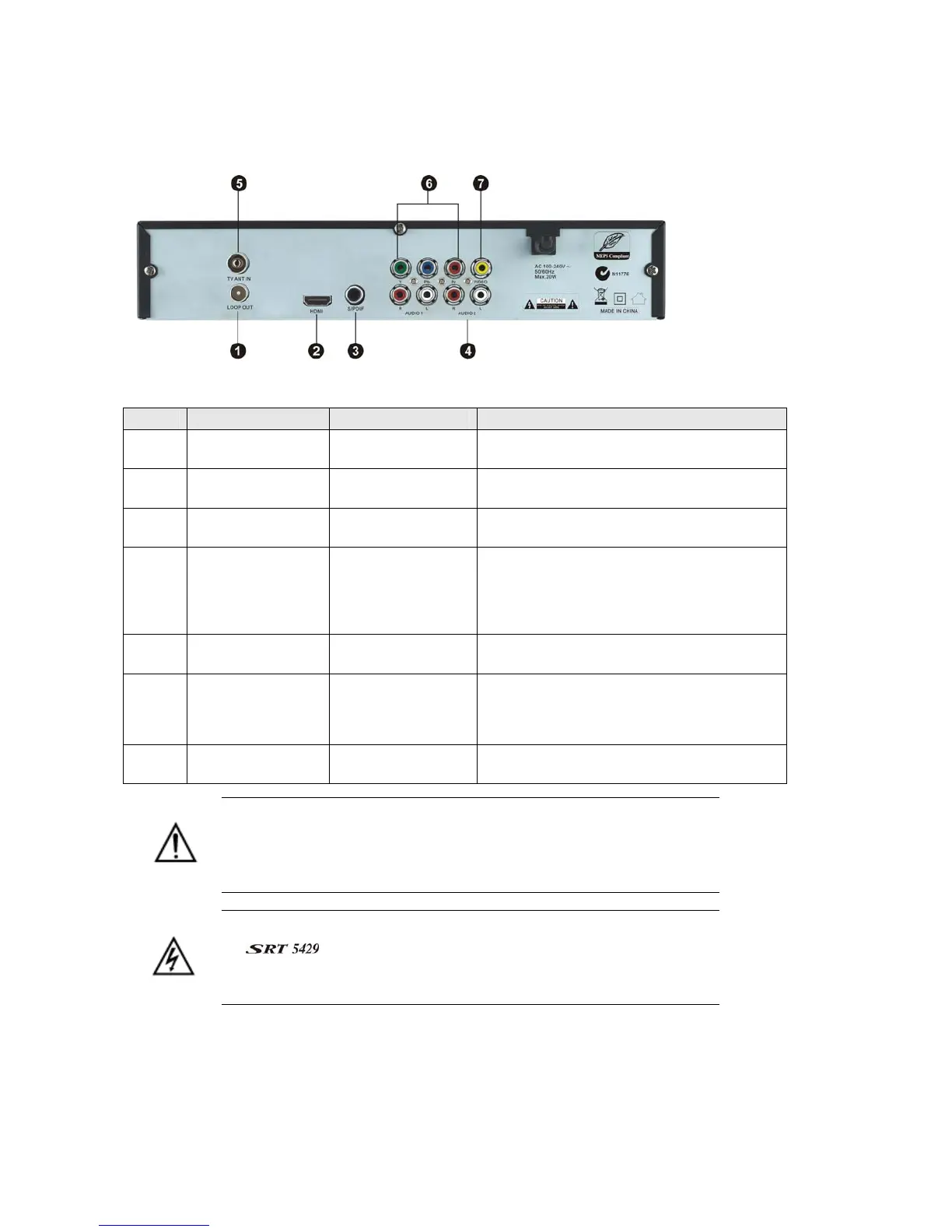

Rear panel
No. Name Connector Function
1 LOOP OUT IEC 169-24 female Loop-through output to VCR, etc.
2 HDMI HDMI cable HDMI video-and-audio connection
3 S/PDIF RCA Coaxial Digital audio output (coaxial)
4 Audio (Left and
Right)
RCA cinch
• white: left
audio
• red: right audio
Left and right audio for Component or
Composite connection
5 TV ANT IN IEC 169-24 female Input from terrestrial antenna
6 Y/Pb/Pr RCA
Component
RCA cinch
(green/blue/red)
Component connection (Y/Pb/Pr)
7 Video RCA RCA cinch( yellow) Composite video connection
、Note the presence of this symbol on the rear panel. This indicates that
important operating and maintenance instructions accompany the
product. These are set out in this manual. It is highly recommended that
you read this manual thoroughly before using the product.
To reduce the risk of electric shock, do not remove any panel of
the . Even when the unit is turned off, voltages may be present
within it that are of sufficient magnitude to constitute a risk of electric
shock.
