31
S

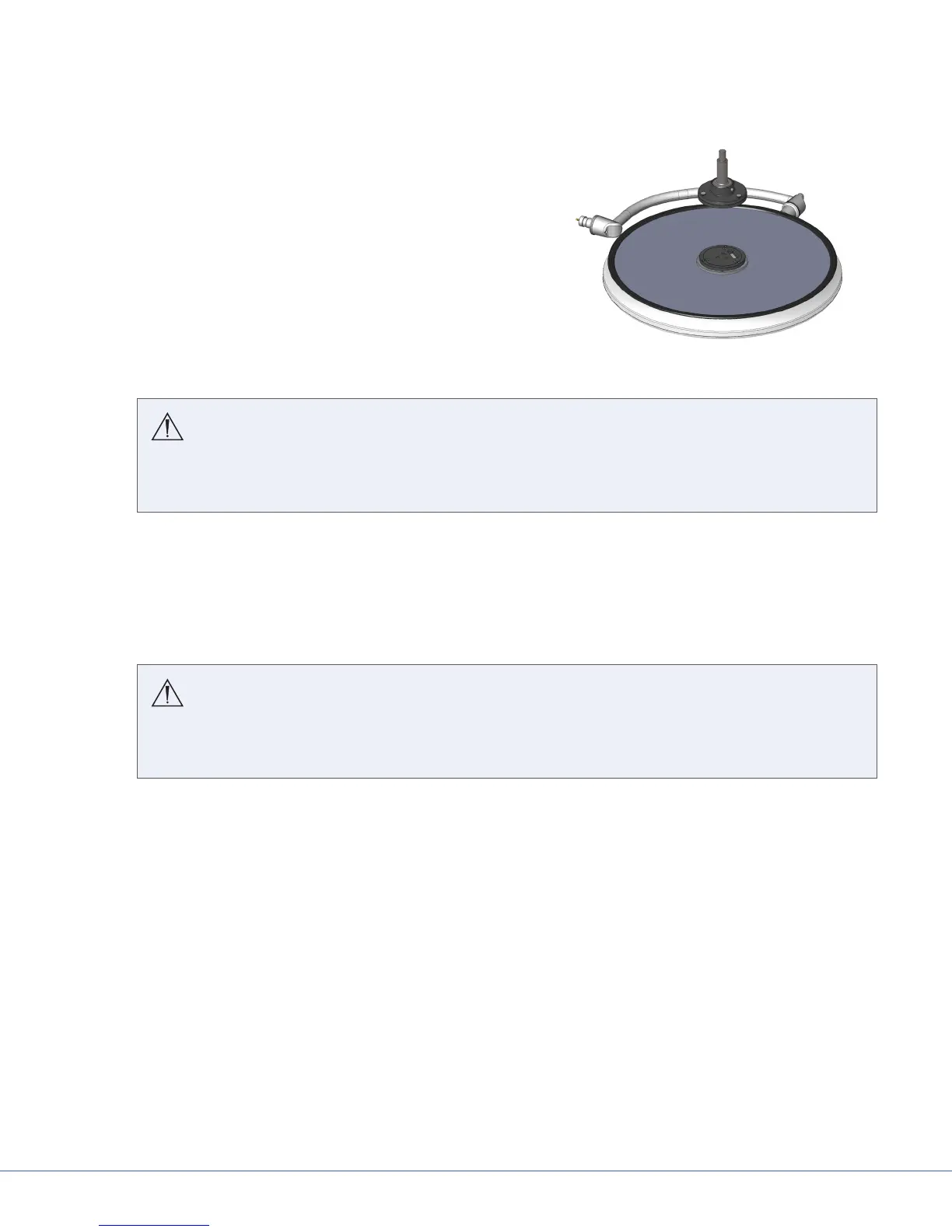

8.1.2 Replacing In-Light Camera with Weighted Light Handle
1. Invert the light head so that the camera points straight
up, perpendicular to the oor.
2. Loosen the three thumb screws securing the camera to
the light.
3. Pull the camera free from the light head.
Weighted Light Handle
Caution
When you remove the camera, the Spring Arm may drift up. Be prepared to hold it down until the
weighted light handle is secure.
4. Align the connector of the weighted light handle with that of the light head and insert it into the light
head.
5. Press the weighted light handle rmly into place, and ensure that the base of the weighted light handle
sits ush with the surface of the light.
6. Tighten the three thumb screws completely to secure weighted light handle.
Warning
If the base of the weighted light handle is not ush with the surface of the light or if the thumb
screws are not completely tightened, the weighted light handle could fall o.
8.2 HD Camera Decoder Box Installation
1. Connect the DVI cable from the decoder box to a 1080p monitor or video router (see the following
gure).
2. Connect the S-video from the light head to the decoder box using the S-Video to BNC split cable. The
BNC connection with the white cable should be connected to the decoder box. The connection with the
yellow cable is not used.
3. Connect the country-specic power cable from the decoder box to a power supply source.
