cybercool indoor chiller original instructions
Cooling medium circuit
Deventilation valves 8
Filling/drain valve c, d
Chilled water circuit
Deventilation valves 17
Filling/drain valves a, b

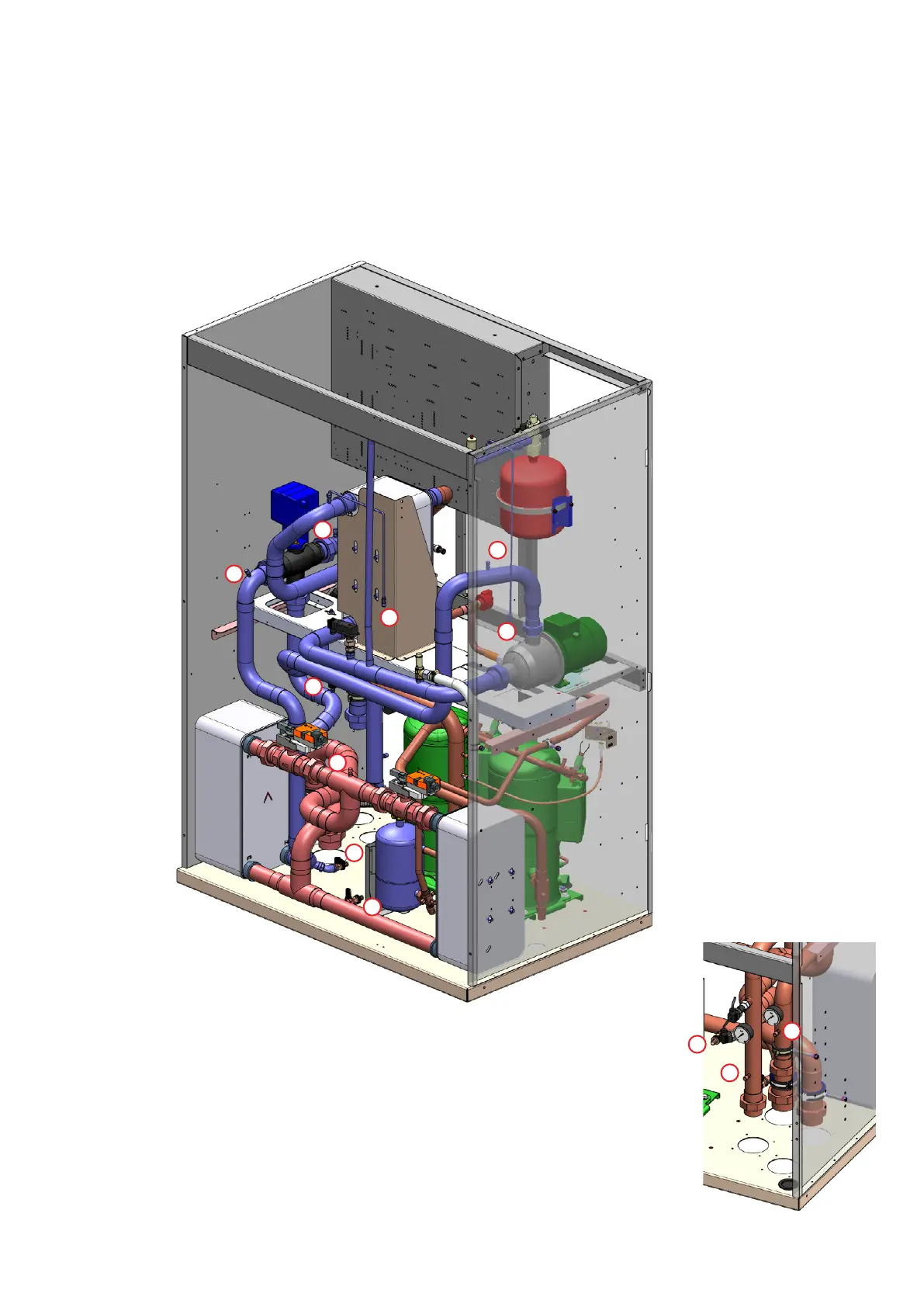

Position of deventilation- and filling/drain valves
Version GE
Front view:
Rear view:
