cybercool indoor chiller original instructions
5.2 Positioning the unit
You will need two mounting aids as shown below.
When placing the unit on a raised floor stand, this must be installed first. Refer to the instructions in the chap-
ter „Raised floor stand“.
WARNING
Risk of crushing limbs
A defective lifting device can lead to the uncontrolled fall of the chiller unit.
Do not stay under suspended loads! Wear safety boots.
Mounting aids
Pallet height
Transport with a fork lift
• transport the unit on the pallet as close as possible to
the installation site.
• keep at hand mounting aids at the left and right unit
side.
• lift the units with a fork lift by 50mm.
• remove the pallet.
• put the mounting aids at the left and right unit side.
• drop the unit.
• lift the support surface of the mounting aids at a suf-
ficient height so that the weight of the unit lies on the
mounting aids. Secure the mounting aids by belts
around the unit.
• take away the fork lift from under the unit.
• drive the unit by the mounting aids to the installation site.
• drop the unit, loosen the belts and pull away the mount-
ing aids.

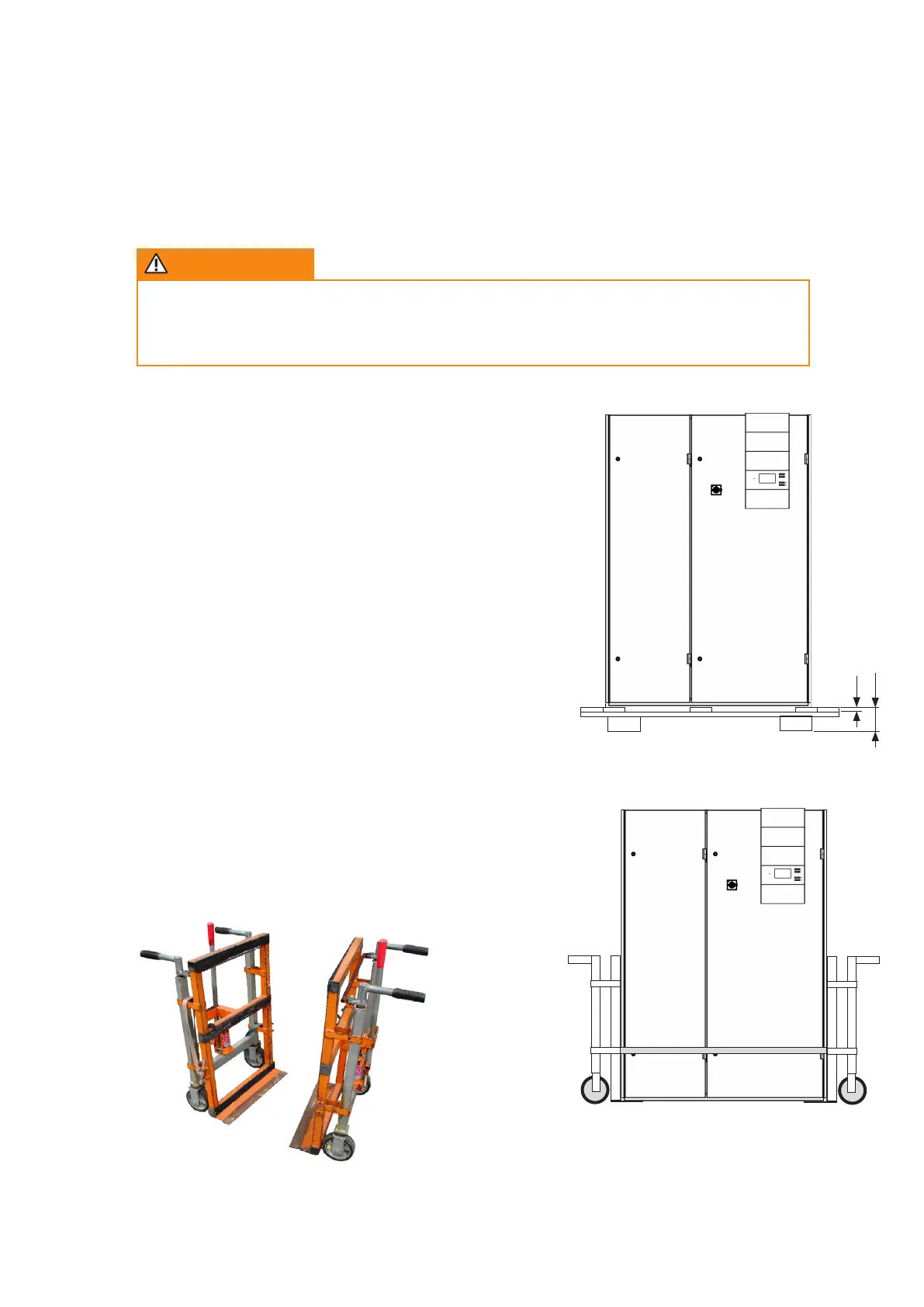

chiller transport with mounting aids
