Stulz CyberCool - 11. Options; 11.1 Raised floor stand

55
B
865 785
Baugröße 1 2
B mm 910 1360
Stützen Stk 4 4
Rechteckprofile 7040 Stk 4 4
Mafundstreifen Stk 4 4
Schrauben M830 Stk 8 8
X Z
Y
Z (min. 50)
Z (min. 800)
Z
(min. 50)
© STULZ GmbH – all rights reserved EN/09.2017/G44
cybercool indoor chiller original instructions
11. Options

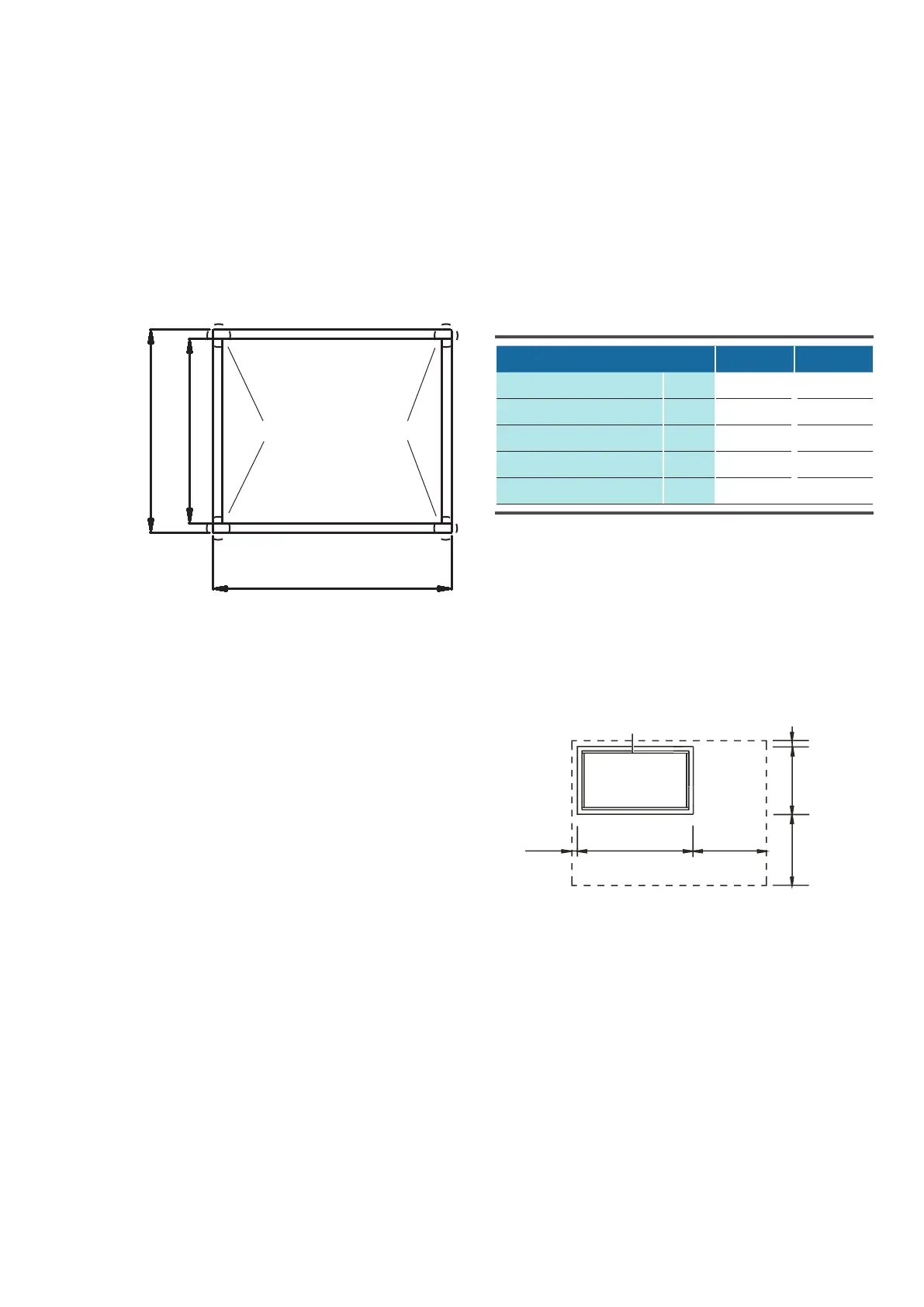

11.1 Raised floor stand
The floor stand is used to adjust the height of the chiller to the existing raised floor and consists of an encir-
cling rectangular profile of galvanized steel with adjustable screw sockets. Anti vibration compound is recom-
mended between concrete floor and base plate.
Locating the supports
Cabinet size
B mm
Supports n°
Rectangular profiles 7040 n°
Mafund strips n°
Screws M830 n°
Mounting
Raised floor stand
X/Y = Opening in raised floor
Z = Limit of distance
• Aconcretefoundationisrecommendedinthe
area of the raised floor supports.
• Iftheoorstandisplacednearawall,aminimum
distance of 50 mm must be respected. The gap
between wall and floor stand must be closed by
tin stripes.
• Choosethedimensionsoftheopeningsinthe
raised floor (X and Y) 10 mm longer than the
raised floor stand dimensions.
• Closethejointwithacontinuousseal.
• Theraisedoorcutting(notch)shouldat
least be 15° and must not have any contact
totheraisedoorstand,whichcouldresultin
bone-conduction.
• Installtheraisedoorsupportsonvibration
dampening material (Mafund plate) (do not screw
down the supports!).
• Priortoinstallationofthechiller,installtheraised
oor7mmhigherthantheraisedoorplates,as
the mafund plates are compressed by the weight
of the chiller.
