Stulz CyberCool - Page 56

56
H
min
— H
max
Hmin — Hmax
[mm]
995 — 1045
895 — 945
795 — 845
695 — 745
595 — 645
495 — 545
355 — 405
270 — 320
EN/09.2017/G44 © STULZ GmbH – all rights reserved
cybercool indoor chiller original instructions

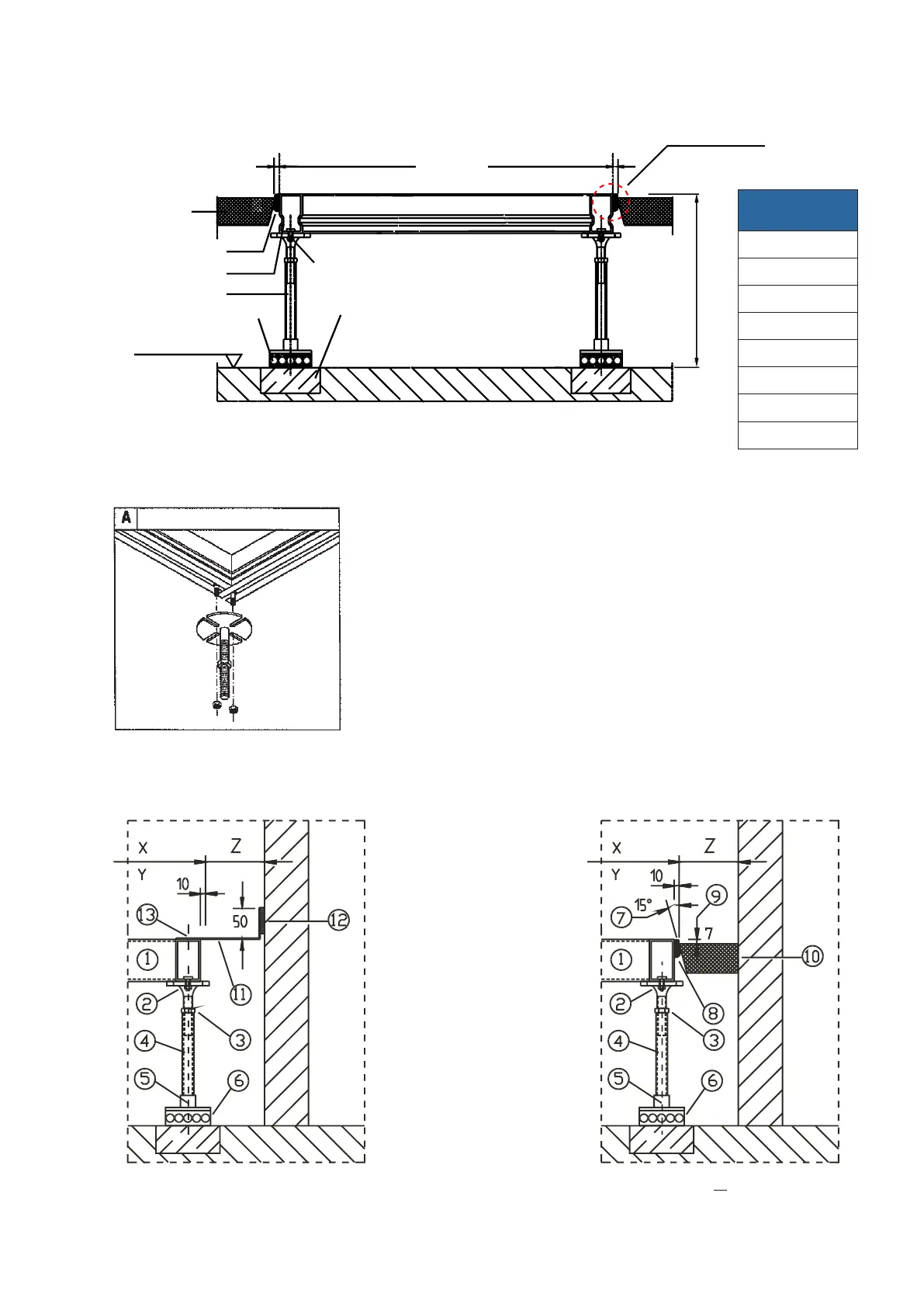

Connecting the bars (View from below)
AngleConnection
Raised floor connection
fordetails,seenextpage
Hammer head screw M8  30
Recommended concrete
foundations (no floor finish)
Raised floor
Raised floor stand
Continuousseal
Raised floor support
Mafund plate
Upper edge of
rough floor
Unit width
General design of the raised foor stand
when distance Z > 100 mmwhen distance Z < 100 mm
Detail of raised floor connection
Raised floor stand
Adjustable support plate
Adjusting nut
Support pipe
Support base
Mafund plate
Raised floor cut out angle
Continuoussealprole
(use closed-cell material only)
Before unit installation
Raised floor plate
Angled bracket
Permanentlyelasticseal
Fixing
1
2
3
4
5
6
7
8
9
10
11
12
13
