29
Modell 221 421 661 841 981
Druckleitung 16 22 28 28 35
Flüssigkeitsleitung 16 16 22 22 28
© STULZ GmbH – all rights reserved EN/09.2017/G44
cybercool indoor chiller original instructions
5.3 Connection of the piping
5.3.1 Refrigerant piping
To design the piping between the chiller and the condenser follow the instructions in chapter "2. Refrigerant
piping" of document "General-DX". This document is available in the e-Stulz area.

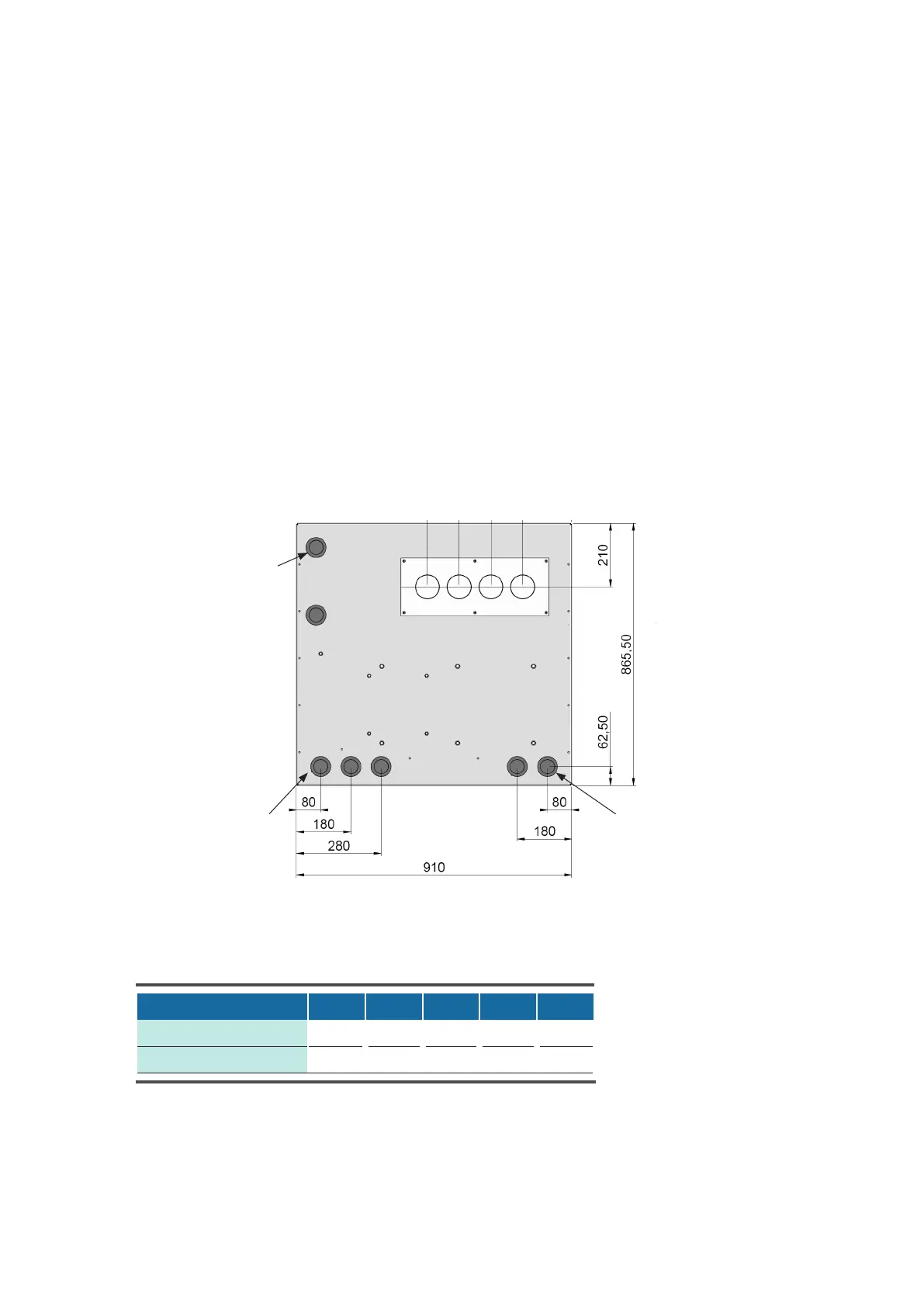

5.3.1.2 Position of the refrigerant connections
5.3.1.1 Design
Discharge line
Liquid line
Connection diameter of refrigerant lines in mm
Unit rear side
Top view
Pressure line
Liquid line
safety valve drain
