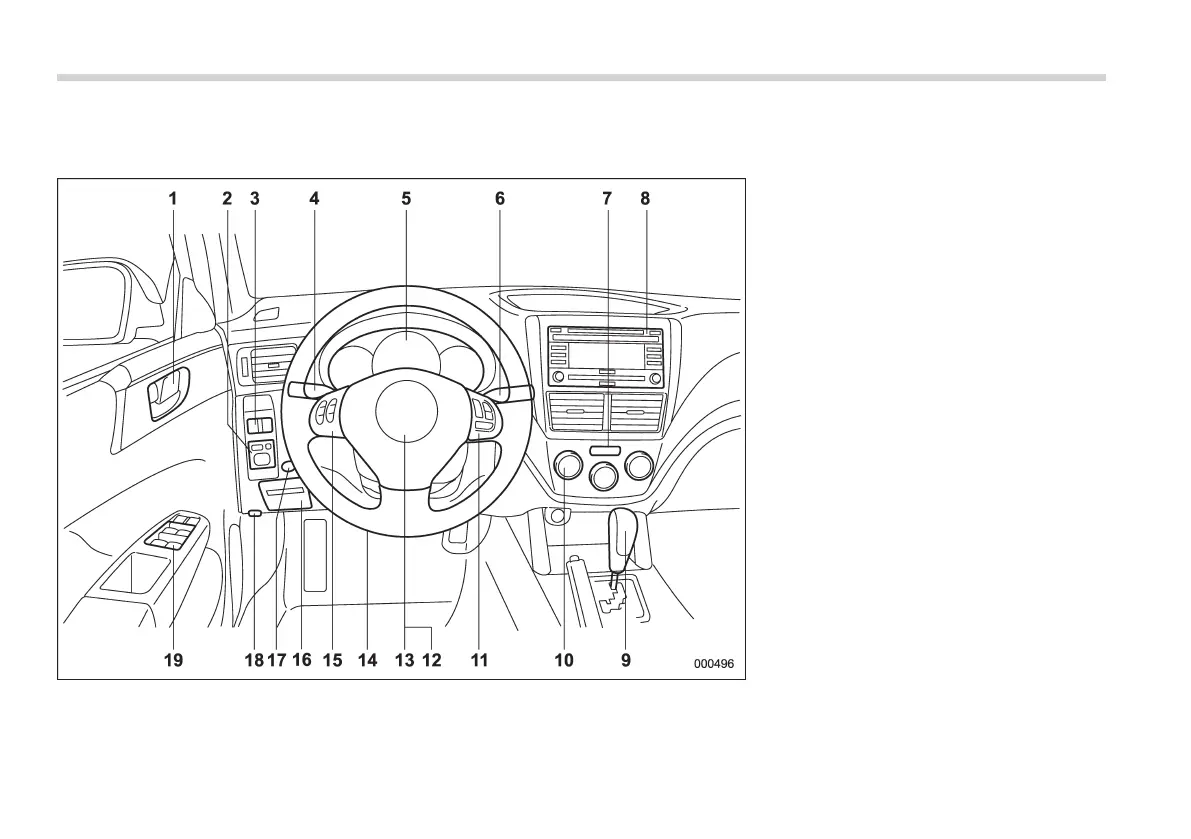

& Instrument panel
! Left-hand drive vehicles
1) Door locks (page 2-4)
2) Outside mirror switch (page 3-47)
3) Illumination brightness control
(page 3-35)
4) Light control lever (page 3-33)
5) Combination meter (page 3-11)
6) Wiper control lever (page 3-39)
7) Hazard warning flasher switch
(page 3-10)
8) Audio (page 5-1)
9) Shift lever (MT) (page 7-14)/
Selector lever (AT) (page 7-18)
10) Climate control (page 4-1)
11) Cruise control (page 7-38)
12) Horn (page 3-49)
13) SRS airbag (page 1-37)
14) Tilt/telescopic steering (page 3-49)
15) Audio control buttons (page 5-23)
16) Fuse box (page 11-51)
17) Vehicle Dynamics Control OFF switch
(page 7-34)
18) Hood lock release knob (page 11-11)
19) Power windows (page 2-32)
