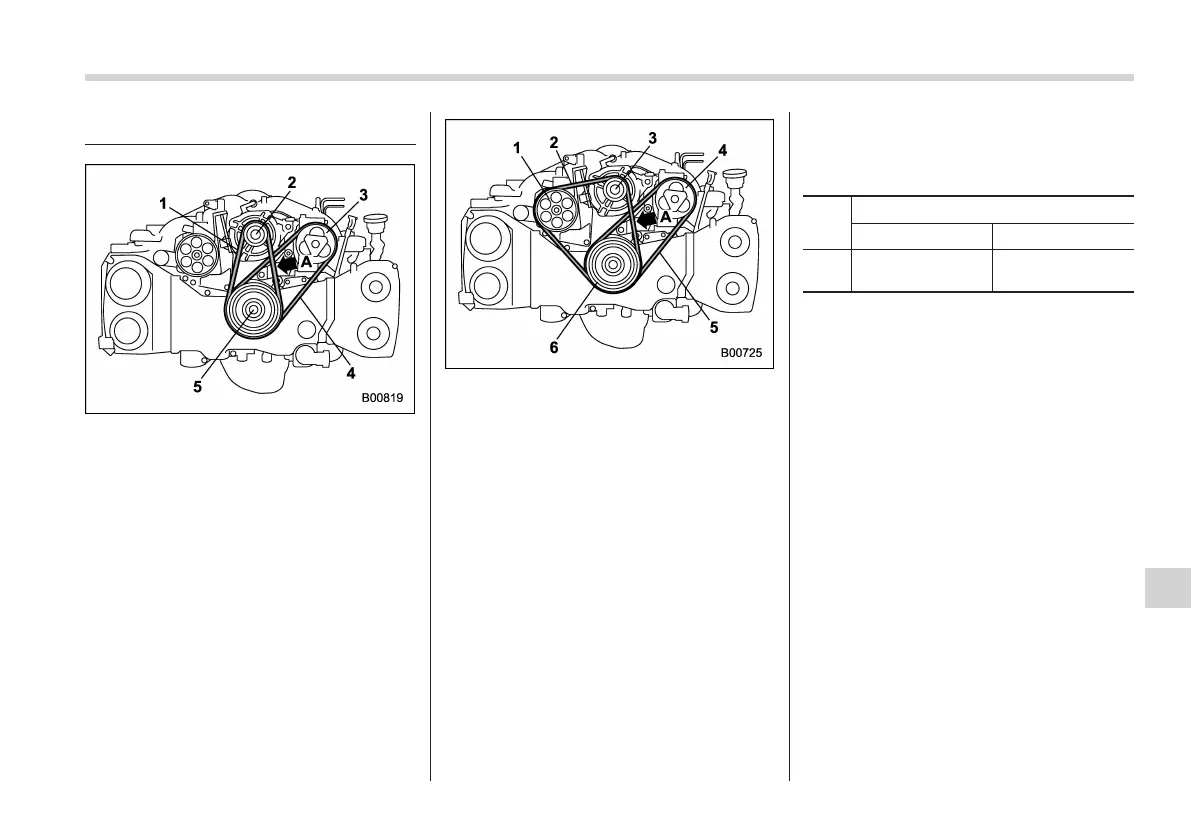

Drive belts
2.0 L models
1) Front side belt
2) Alternator
3) Air conditioner compressor pulley
4) Rear side belt
5) Crank pulley
A) 98 N (10 kgf, 22 lbf)
Except 2.0 L models
1) Power steering pump pulley
2) Front side belt
3) Alternator
4) Air conditioner compressor pulley
5) Rear side belt
6) Crank pulley
A) 98 N (10 kgf, 22 lbf)
The alternator, power steering pump, and
air conditioner compressor depend on
drive belts. Satisfactory performance re-
quires that belt tension be correct.
To check the tension of the front side belt,
place a straightedge (ruler) across two
adjacent pulleys (alternator and crank
pulley) and apply a force of 98 N (10 kgf,
22 lbf) midway between the pulleys by
using a spring scale. Belt defl ection
should be the amount specified. If the
front side belt is loose, cracked, or worn,
we recommend that yo u contact your
SUBARU dealer.
mm (in)
Deflection
New belt Used belt
A
7.0 – 9.0
(0.28 – 0.35)
9.0 – 11.0
(0.35 – 0.43)
The rear side belt is a stretch-type belt,
therefore the deflection and tension do not
need to be checked. If there are cracks or
wear confirmed on the belts and a
squeaking sound is heard from them, we
recommend that you contact your
SUBARU dealer.
Maintenance and service 11-25
