Subaru Forester - Fuses and circuits; Main fuse

Black plate (387,1)
一般Model "A8140GE-A" EDITED: 2007/ 12/ 13

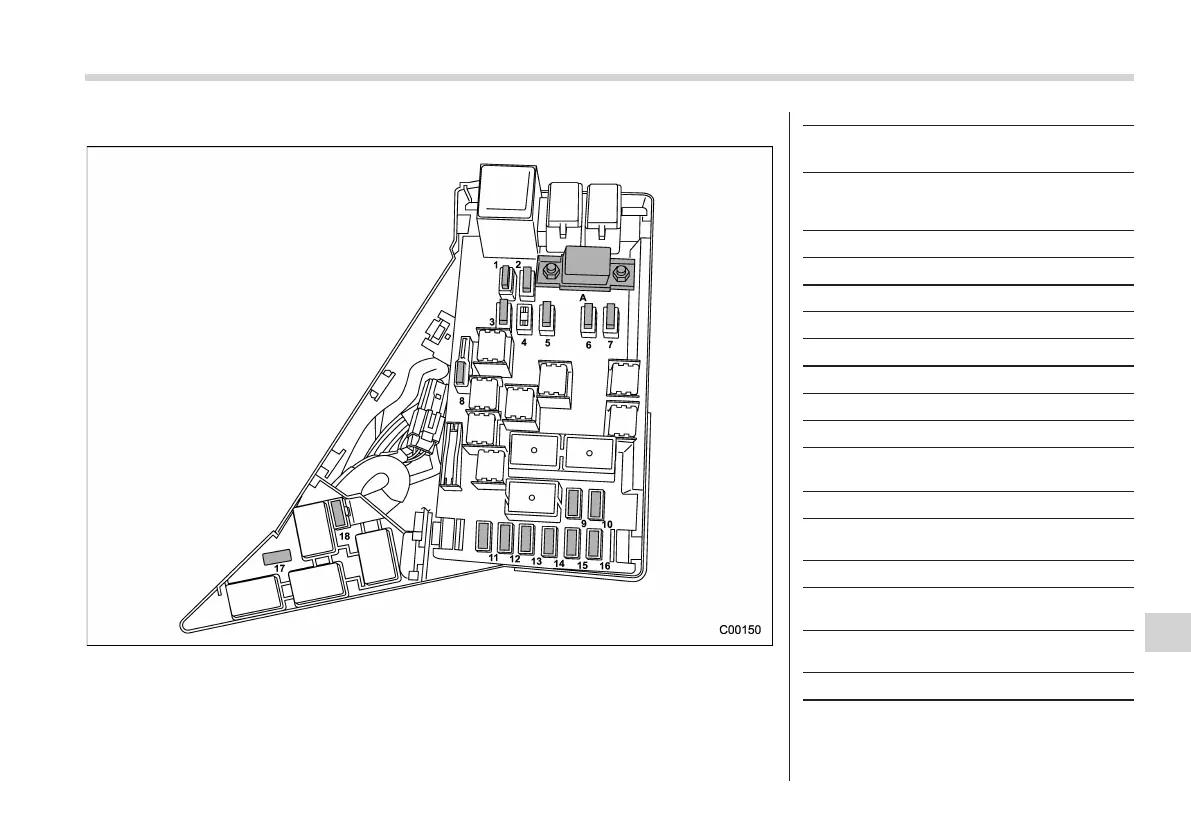

& Fuse panel located in the engine compartment
A) Main fuse
Fuse
panel
Fuse
rating
Circuit
1 30A
. ABS unit
. Vehicle dynamics con-
trol unit
2 25A
. Main fan
3 25A
. Sub fan
4
Empty
5
10A
. Audio
6
30A
. Headlight (low beam)
7 15A
. Headlight (high beam)
8 20A
. Back-up light
9 15A
. Horn
10 25A
. Rear window defogger
. Mirror heater
11 15A
. Fuel pump
12 10A
. Automatic transmission
control unit
13 7.5A
. Engine control unit
14 15A
. Turn and hazard warn-
ing flasher
15 15A
. Tail and illumination re-
lay
16 7.5A
. Alternator
Specifications
