4-10 Climate control
switch in the “ON” position. The fan speed
control dial is used to select the AUTO
(automatic control) mode or to select the
desired fan speed. The dial’s positions
and their functions are as follows:
OFF: The fan does not operate.
AUTO: The fan speed is adjusted auto-
maticallyinaccordancewiththeair
temperature inside and outside the pas-
senger compartment, the intensity of sun-
light, and other factors. SUBARU recom-
mends using the AUTO position.
Other positions: The fan speed can be
adjusted in 7 steps.
NOTE
With the fan speed control dial in the
AUTO position and the air flow control
dial in the “
”, “ ”,or“ ” position,
the fan does not operate during engine
warm-up until the engine coolant tem-
perature exceeds approximately 508C
(1228F).

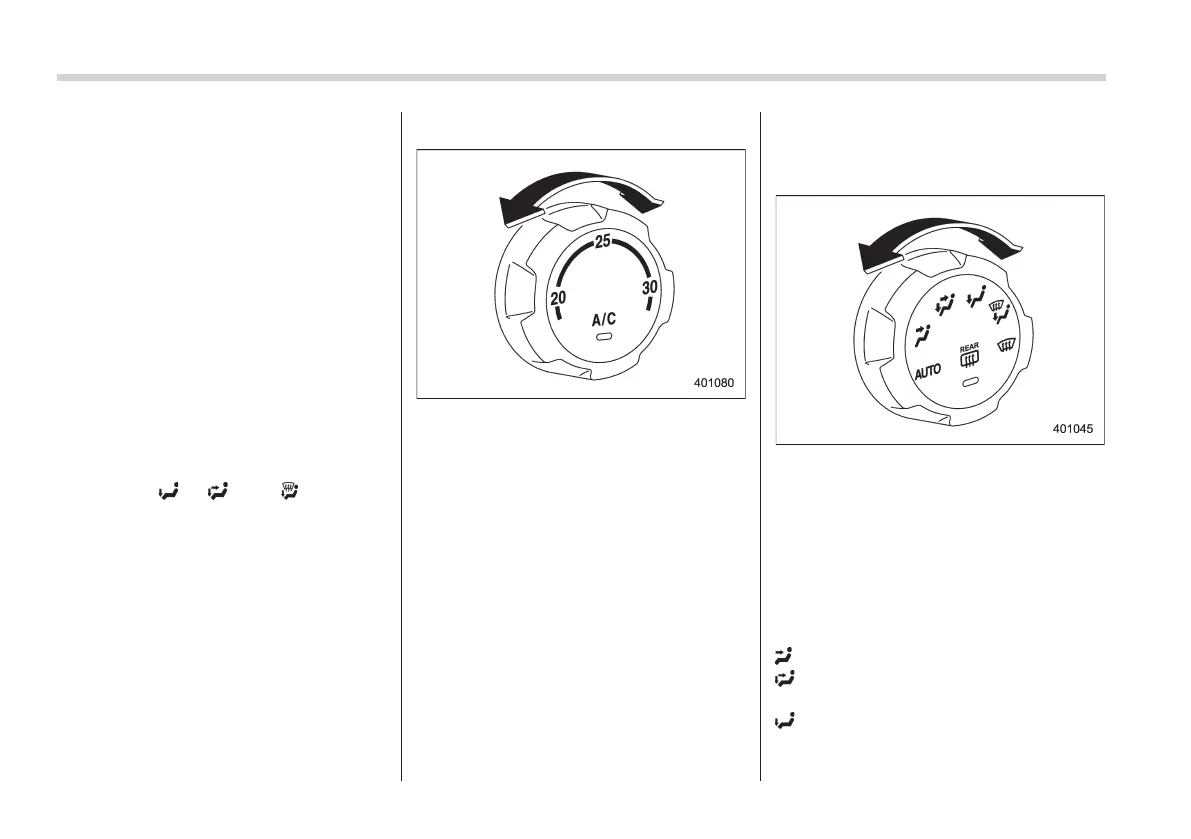

& Temperature control dial
This dial is used to set the desired interior
temperature. With the dial set to your
desired temperature, the system automa-
tically adjusts the t emperature of air
supplied from the outlets such that the
desired tempera ture is ach ieved and
maintained.
If the dial is turned fully counterclockwise,
the system gives maximum cooling per-
formance. If the dial is turned fully clock-
wise, the system gives maximum heating
performance.
NOTE
The controllable t emperature range
that is indicated on the dial differs by
vehicle model. It is a range of 20 to
308C (68 to 868F) on some models, but
17 to 278 C (63 to 818F) on other models.
& Air flow control dial
This dial has the following six positions.
The outlets from which air is supplied in
each position are as follows:
AUTO: The air flow control is adjusted
automatically in accordance with the air
temperature inside and outside the pas-
senger compartment, the intensity of sun-
light, and other factors. SUBARU recom-
mends using the AUTO position.
: Instrument panel outlets
: Instrument panel outlets and foot
outlets
: Foot outlets and windshield defroster
outlets (relatively little air from windshield
defroster outlets)
