1-54 Seat, seatbelt and SRS airbags

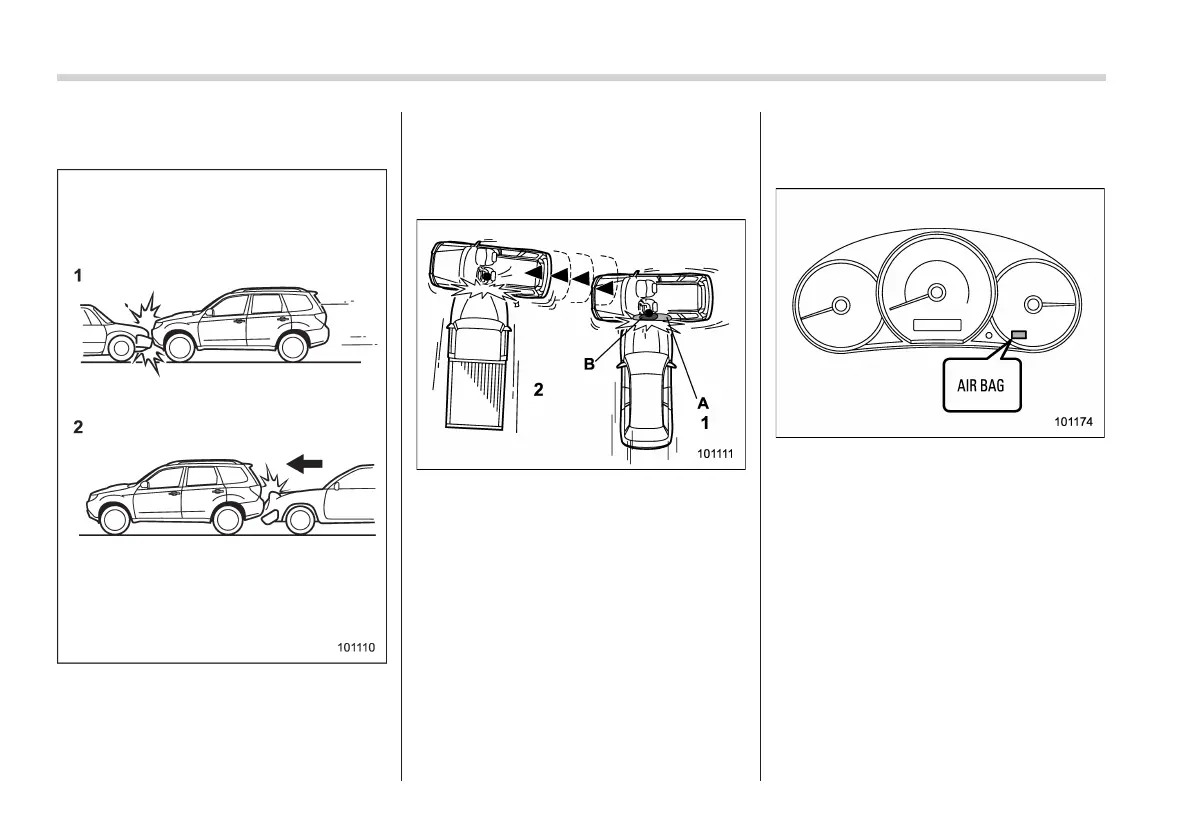

! When will the SRS side airbag and
SRS curtain airbag not deploy?
1) The vehicle is involved in frontal collision
with another vehicle (moving or station-
ary).
2) The vehicle is struck from behind.
The SRS side airbag and SRS curtain
airbag are b asically not designed to
deploy if the vehicle is involved in a frontal
collision or is struck from behind. Exam-
ples of such accidents are illustrated.
1) First impact
2) Second impact
A) SRS curtain airbag
B) SRS side airbag
In an accident where the vehicle is struck
from the side more than once, the SRS
side airbag and SRS curtain airbag deploy
only once on the first impact.
Example: In the case of a double side
impact collision, first with one vehicle and
immediately followed by another from the
same direction, once the SRS side airbag
and SRS curtain airbag are activated on
the first impact, they will not be activated
on the second.
& SRS airbag system monitor
A diagnostic system continually monitors
the readiness of the SRS airbag system
(including front sea tbelt pretensioners)
while the vehicle is being driven. The
SRS airbag system warning light “AIR-
BAG” will show normal system operation
by illuminating for approximately 6 sec-
onds when the ignition switch is turned to
the “ON” position.
The following components are monitored
by the indicator.
. Front sub sensor (right-hand side)
. Front sub sensor (left-hand side)
. Airbag control module (including im-
pact sensors)
