Black plate (229,1)
Model "A8140GE-A" EDITED: 2007/ 12/ 13

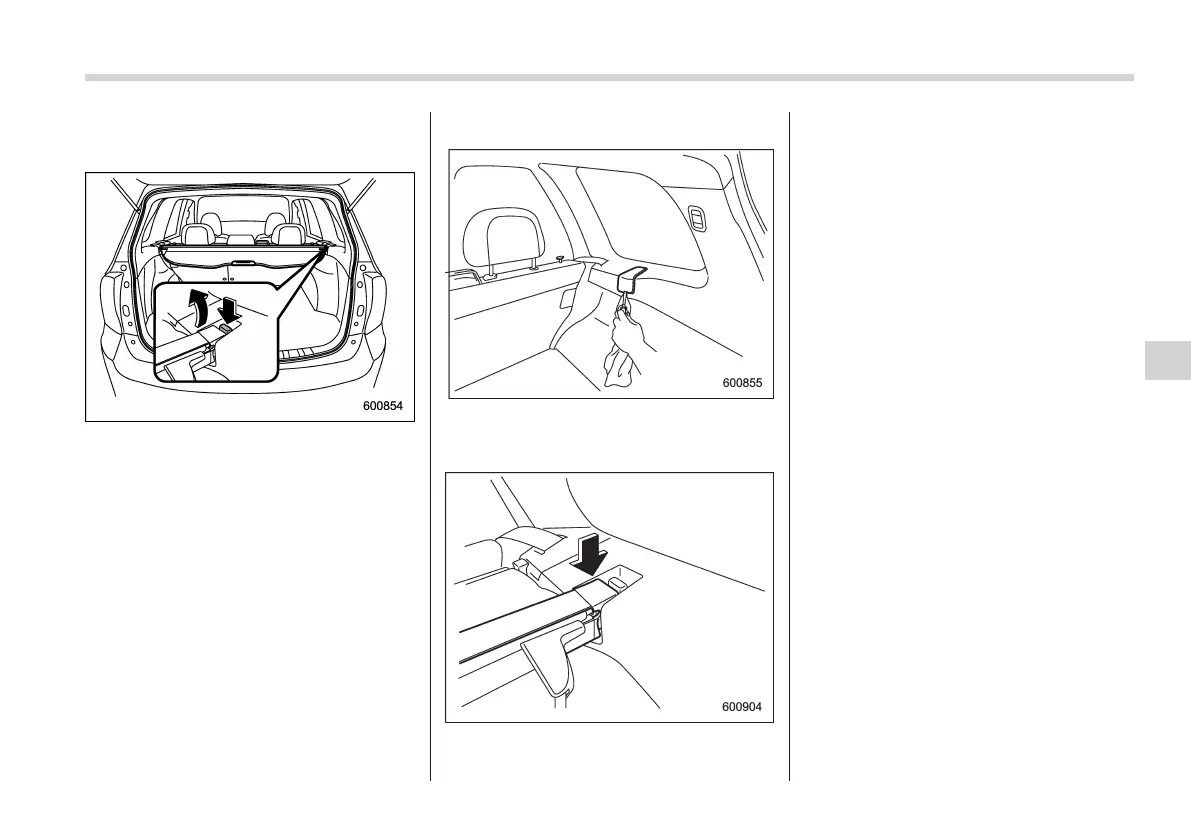

& To remove the cover
1. Rewind the cover.
2. Push the switch that is next to the right
end of the cover housing.
3. Take it off the retainer.
& To install the cover housing
1. Remove the cover of the retainers by
prying on the edge with a flat-head
screwdriver.
2. Insert the projections located on both
ends of the sleeve into the recesses of the
retainers.
Interior equipment 6-15
6
