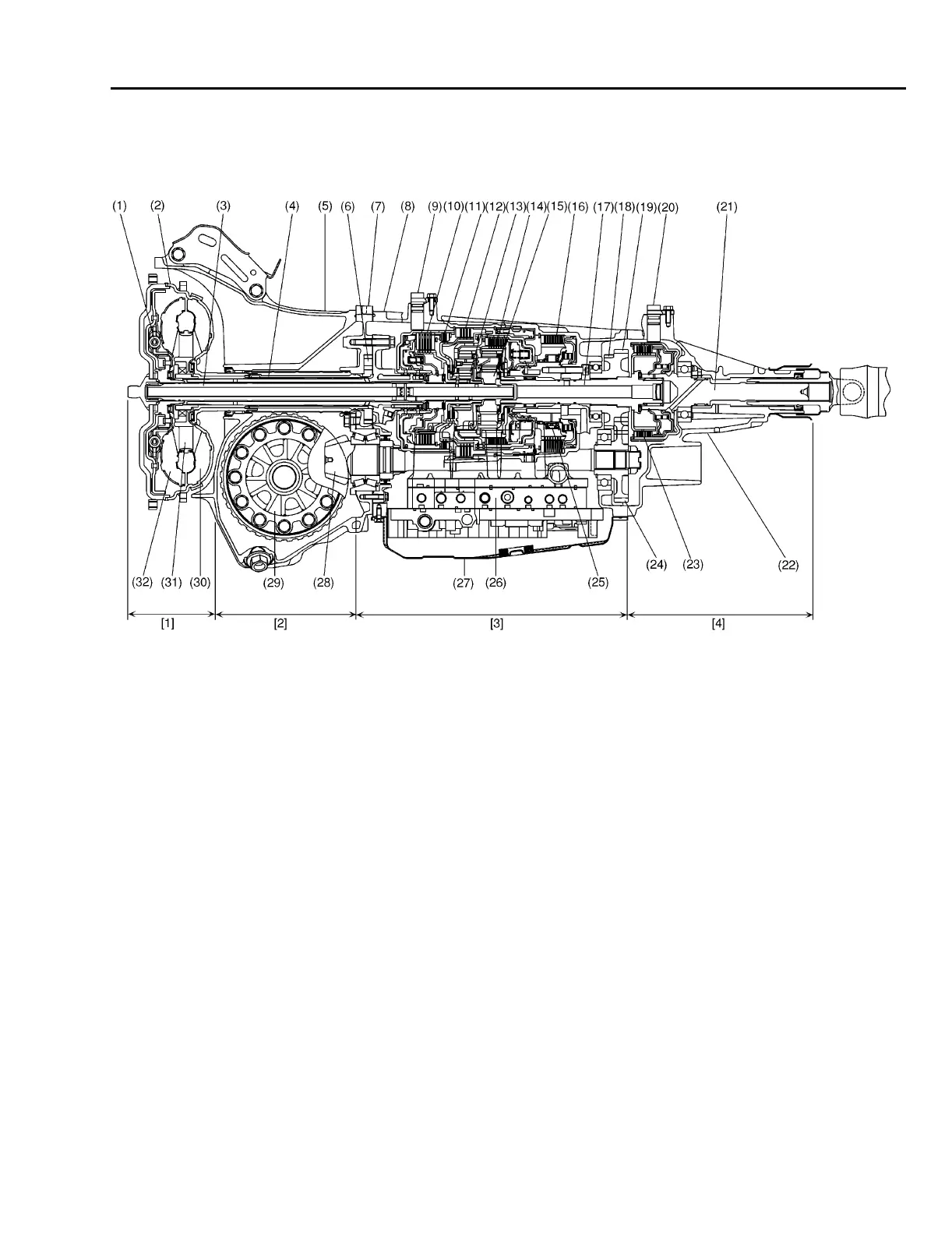

C: CROSS SECTIONAL VIEW
1. MPT MODELS
(1) Lock-up damper (9) Torque converter
turbine speed
sensor
(17) Reduction drive
shaft
(25) One-way clutch [1] Torque converter
clutch section
(2) Torque converter
clutch
(10) High clutch (18) Parking gear (26) Hydraulic control
valve
(3) Input shaft (11) Reverse clutch (19) Reduction drive
gear
(27) Oil pan [2] Final reduction
section
(4) Oil pump drive
shaft
(12) 2-4 brake (20) Rear vehicle
speed sensor
(28) Drive pinion shaft
(5) Torque converter
clutch case
(13) Front planetary
gear
(21) Rear drive shaft (29) Hypoid drive gear [3] Automatic
transmission
section
(6) Oil pump (14) Low clutch (22) Extension case (30) Impeller
(7) Oil pump housing (15) Rear planetary
gear
(23) Transfer clutch (31) Stator [4] Transfer section
(8) Transmission
case
(16) Low & reverse
brake
(24) Reduction driven
gear
(32) Turbine
