Subaru LEGACY 2002 - Page 282

Automatic Transmission
GENERAL
AT-6

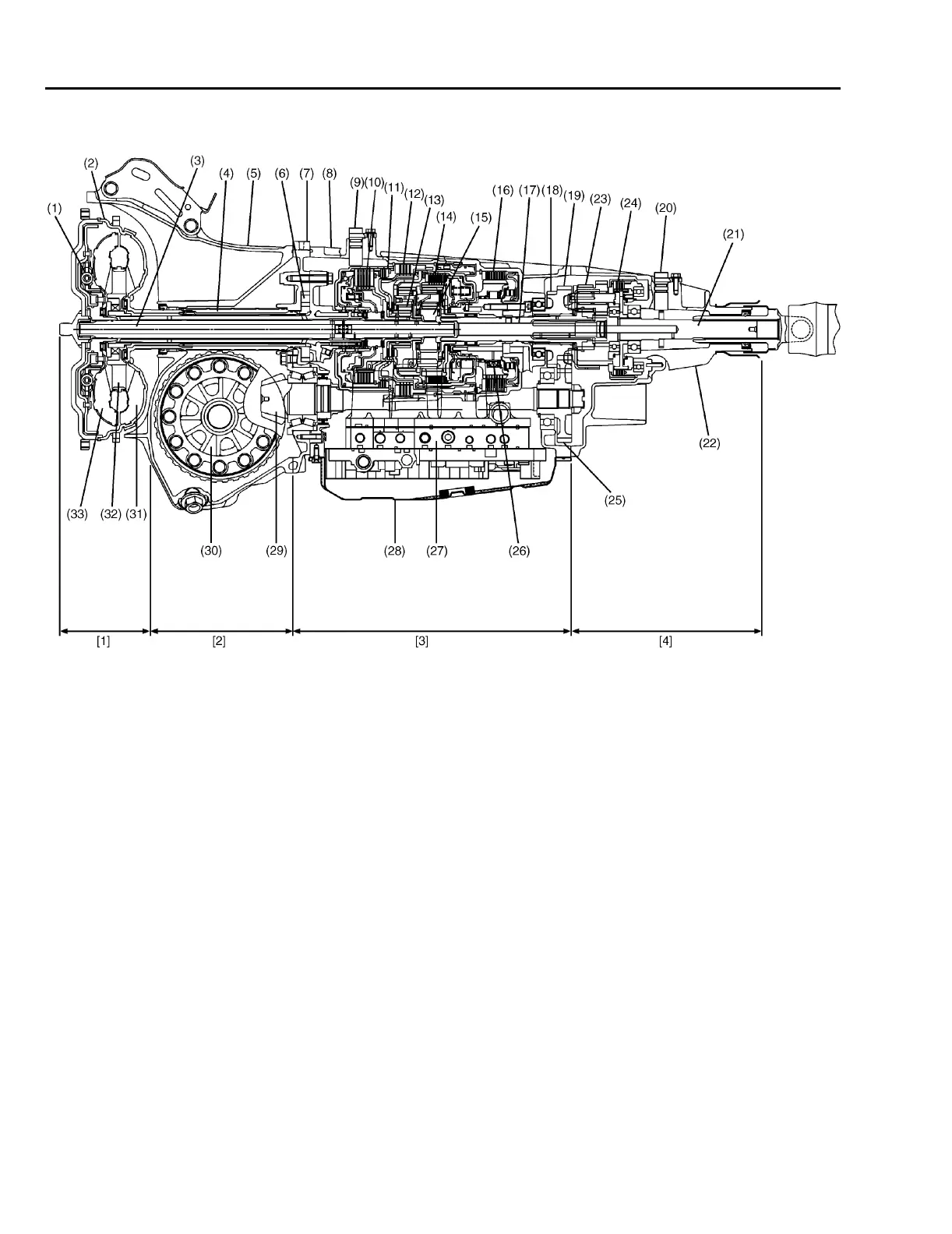

2. VTD MODELS
(1) Lock-up damper (10) High clutch (19) Reduction drive
gear
(28) Oil pan [1] Torque converter
clutch section
(2) Torque converter
clutch
(11) Reverse clutch (20) Rear vehicle
speed sensor
(29) Drive pinion shaft
(3) Input shaft (12) 2-4 brake (21) Rear drive shaft (30) Hypoid drive gear [2] Final reduction
section
(4) Oil pump drive
shaft
(13) Front planetary
gear
(22) Extension case (31) Impeller
(5) Torque converter
clutch case
(14) Low clutch (23) Center
differential
(32) Stator [3] Automatic
transmission
section
(6) Oil pump (15) Rear planetary
gear
(24) Multi-plate clutch
(LSD)
(33) Turbine
(7) Oil pump housing (16) Low & reverse
brake
(25) Reduction driven
gear
[4] Transfer section
(8) Transmission
case
(17) Intermediate
shaft
(26) One-way clutch
(9) Torque converter
turbine speed
sensor
(18) Parking gear (27) Hydraulic control
valve
H3H0743A
