Brakes
FRONT AND REAR DISC BRAKES
BR-3

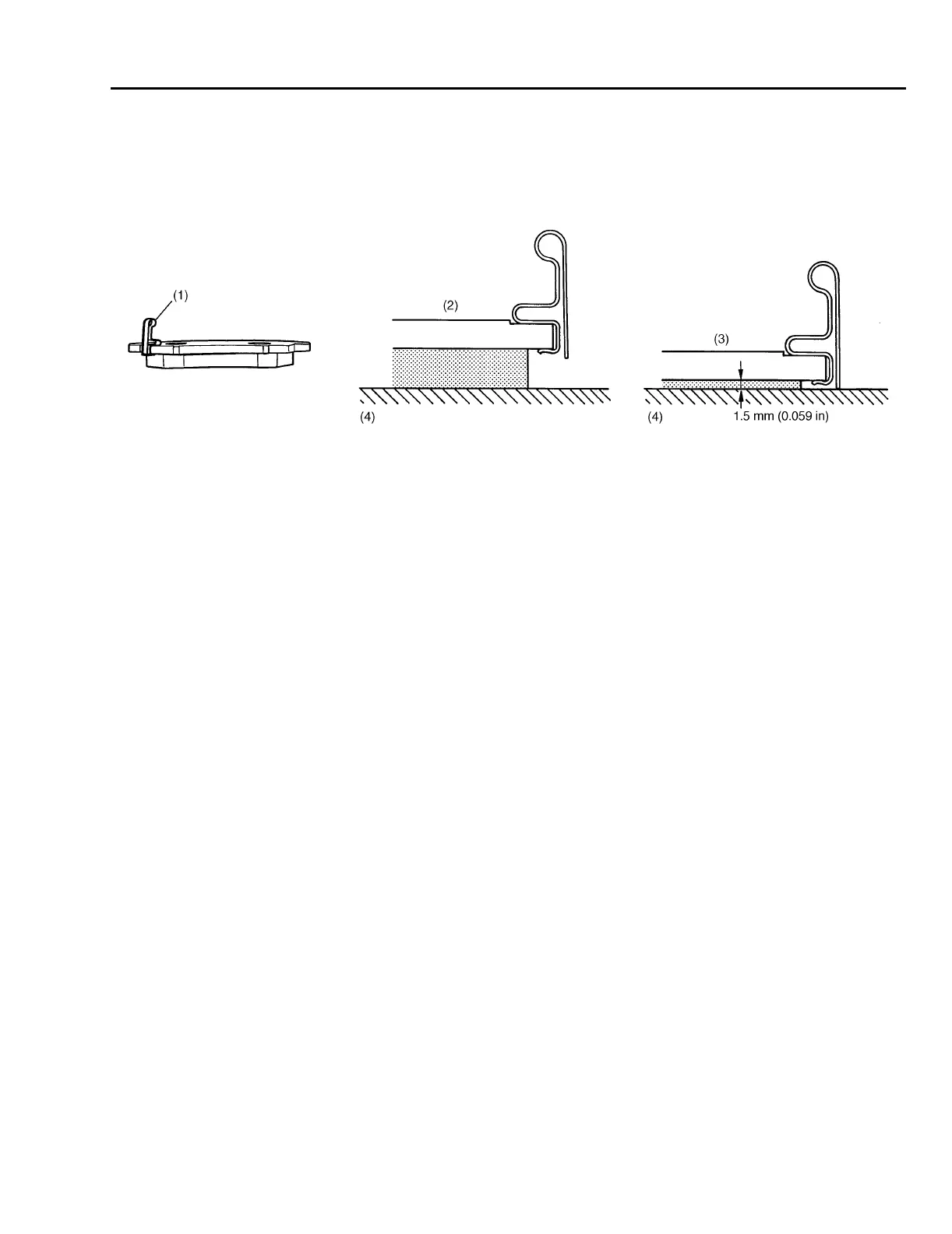

A: PAD WEAR INDICATOR
A wear indicator is provided on the inner disc brake pads. When the pad wears down to 1.5 mm
(0.059 in) the tip of the wear indicator comes into contact with the disc rotor, and makes a squeak-
ing sound as the wheel rotates. This alerts the driver to the situation.
B: FRICTIONAL MATERIAL OF BRAKE PADS
The brake pads materials do not contain any asbestos which is harmful to human body.
(1) Wear indicator (3) Worn pad
(2) New pad (4) Disc rotor
H4H1056B
