Brakes
MASTER CYLINDER
BR-4
2. Master Cylinder
! There is a brake fluid reservoir tank on the master cylinder. The reservoir is completely sealed
for extended service life of the brake fluid.

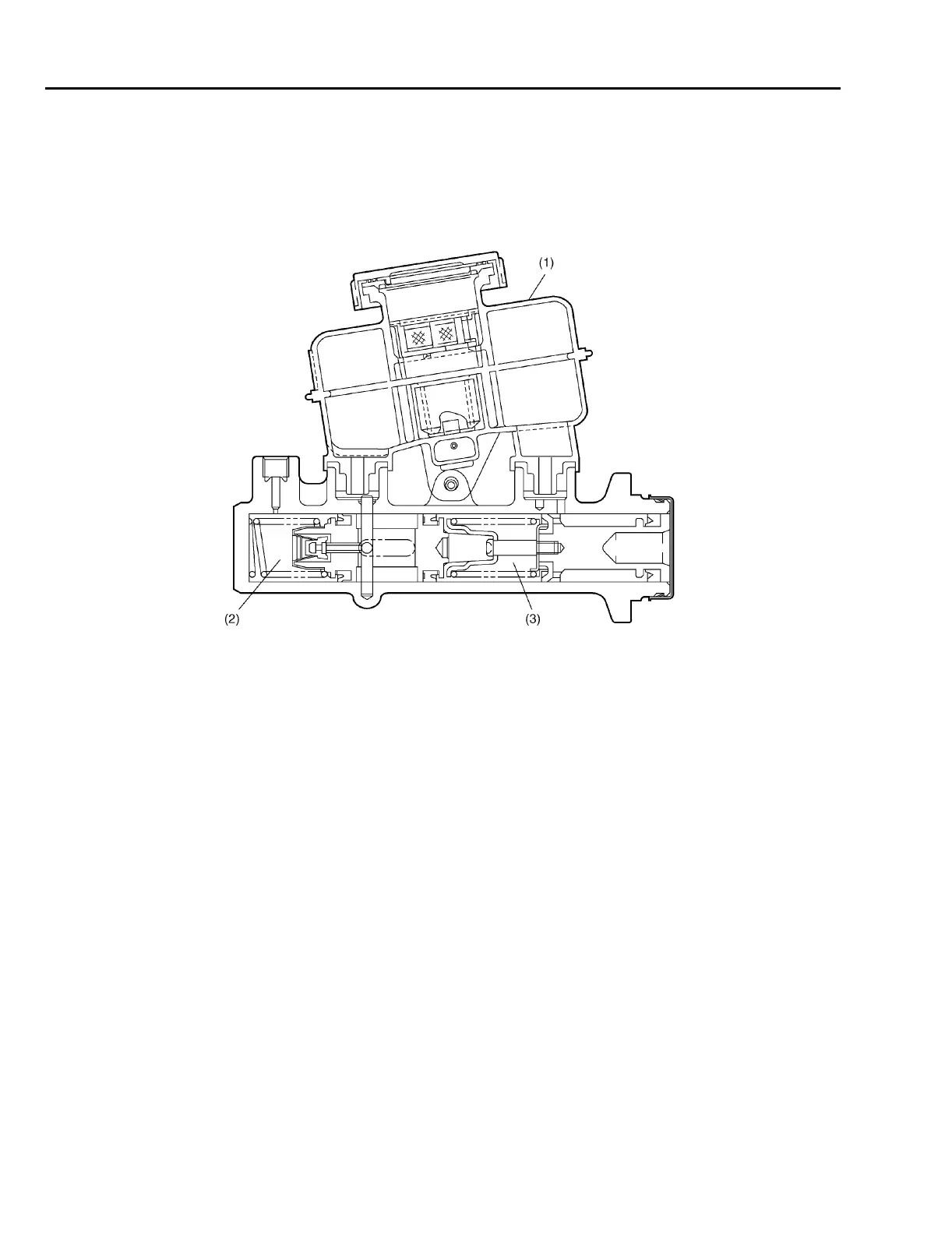

ABS model
(1) Reservoir tank
(2) Secondary hydraulic chamber (chamber S)
(3) Primary hydraulic chamber (chamber P)
B4H1934C
