Fuel Injection (Fuel System)
SENSORS AND SWITCHES
FU-28
G: VEHICLE SPEED SENSOR
1. MT VEHICLES
! The vehicle speed sensor is mounted on the transmission.
! The vehicle speed sensor generates a 4-pulse signal for every rotation of the front differential
and send it to the ECM and the combination meter.

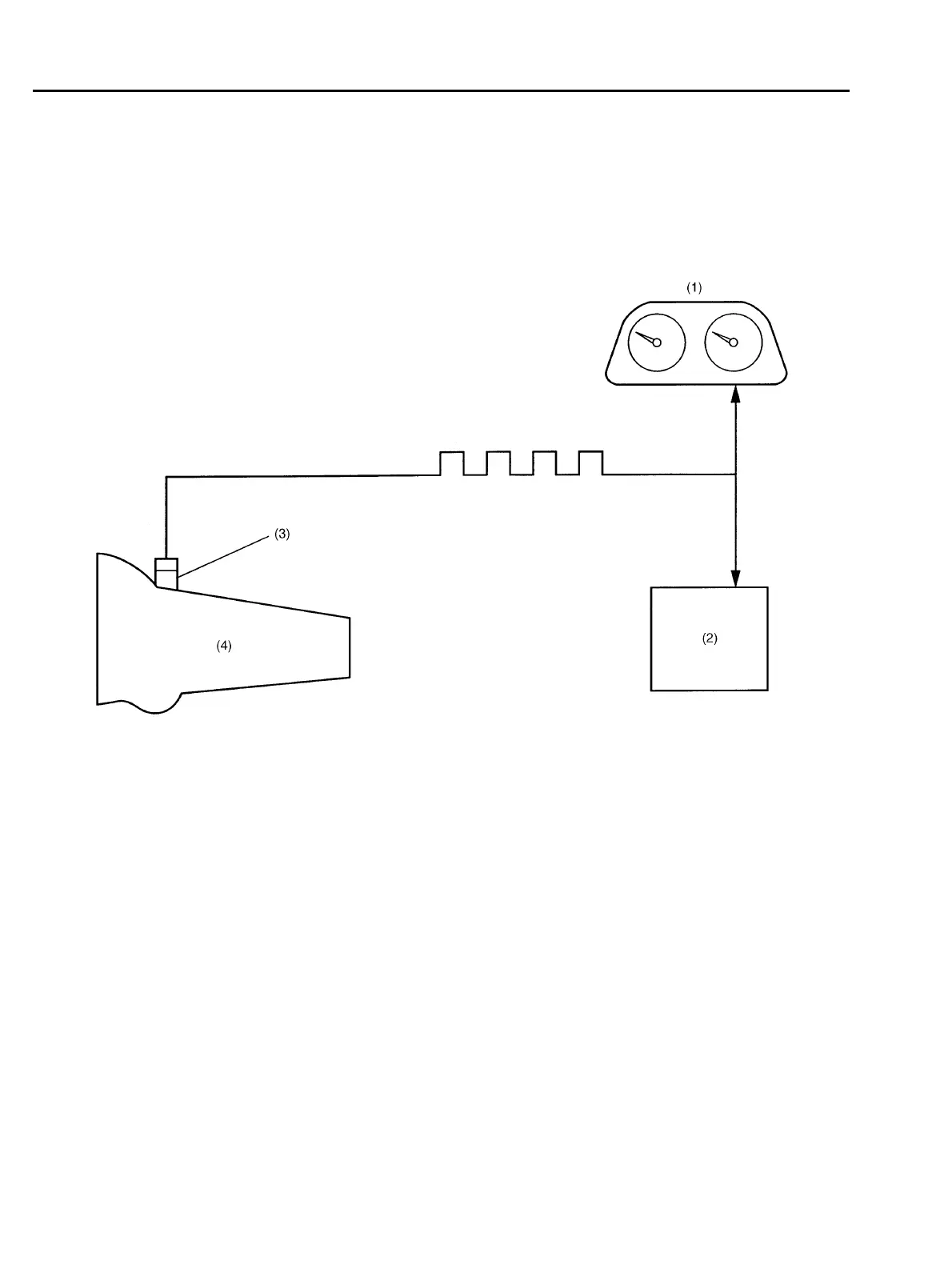

(1) Combination meter
(2) ECM
(3) Vehicle speed sensor
(4) Transmission
B2H2458C
