Fuel Injection (Fuel System)
SENSORS AND SWITCHES
FU-29
2. AT VEHICLES

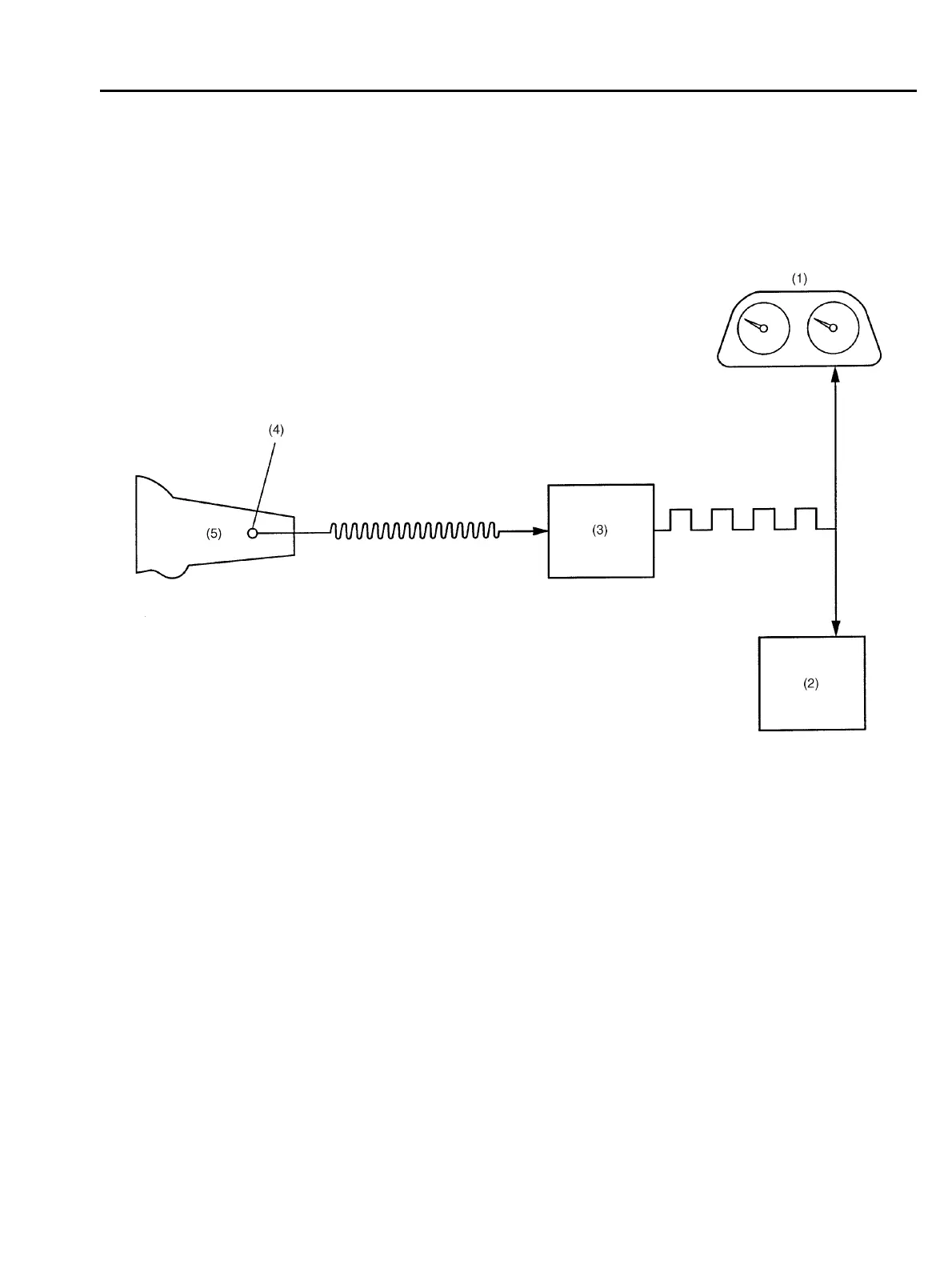

! The vehicle speed sensor is mounted on the transmission.
! The vehicle speed sensor generates a 16-pulse signal for every rotation of the front differential
and send it to the transmission control module (TCM). The signal sent to the TCM is converted
there into a 4-pulse signal, and then sent to the ECM and the combination meter.
(1) Combination meter
(2) ECM
(3) TCM
(4) Vehicle speed sensor
(5) Transmission
B2H2459B
