Assembly & Installation
27
Fastir and Fastir Plus Cord Connections

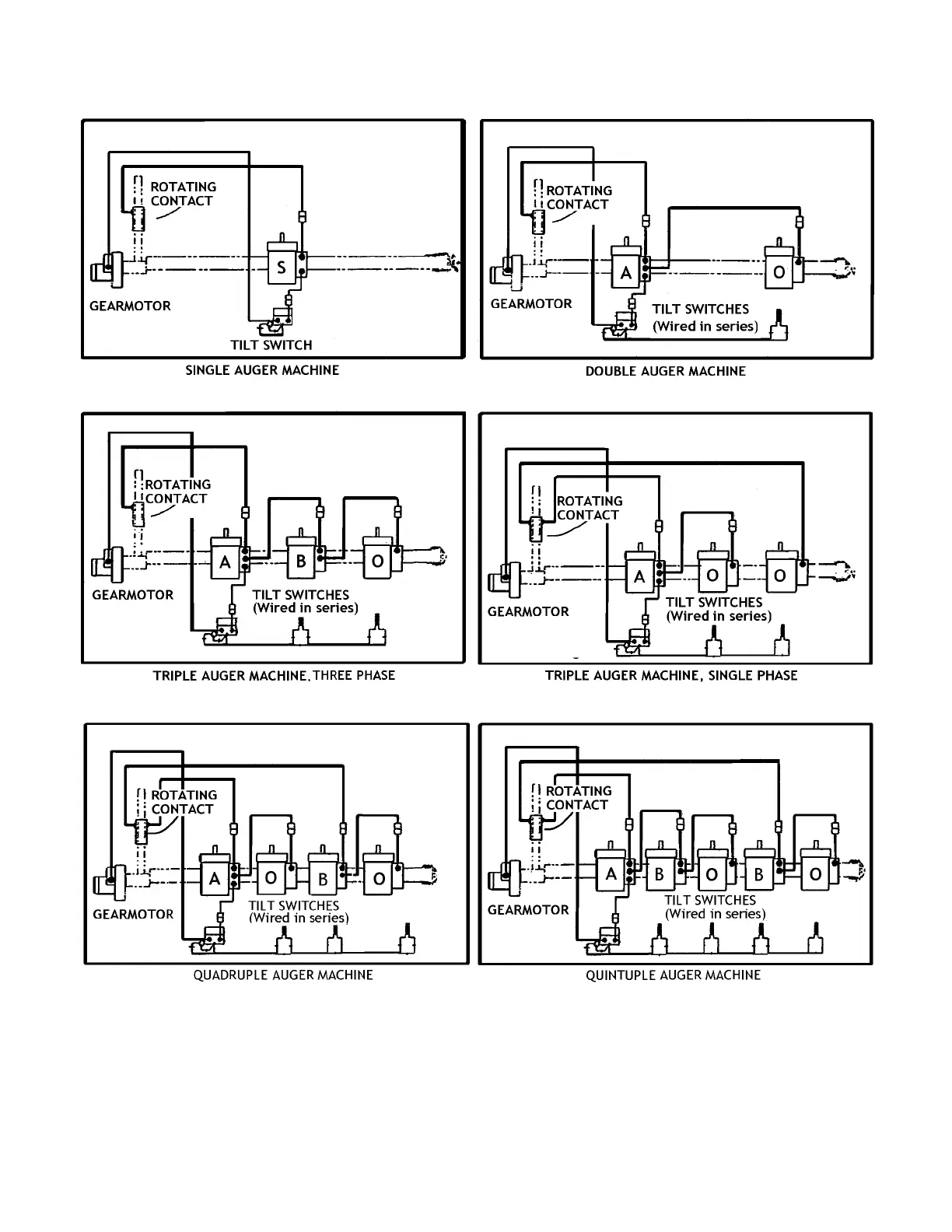

Figure 30 - Motor and Tilt Switch Cord Connection Diagrams
Note: Above diagrams are for machines with 230V motors. 460V units are wired directly and have no plugs.
