Sukup Fastir - Wrap-Around Carriages

Fastir Parts Assembly Manual
57
III. Wrap-Around Carriages

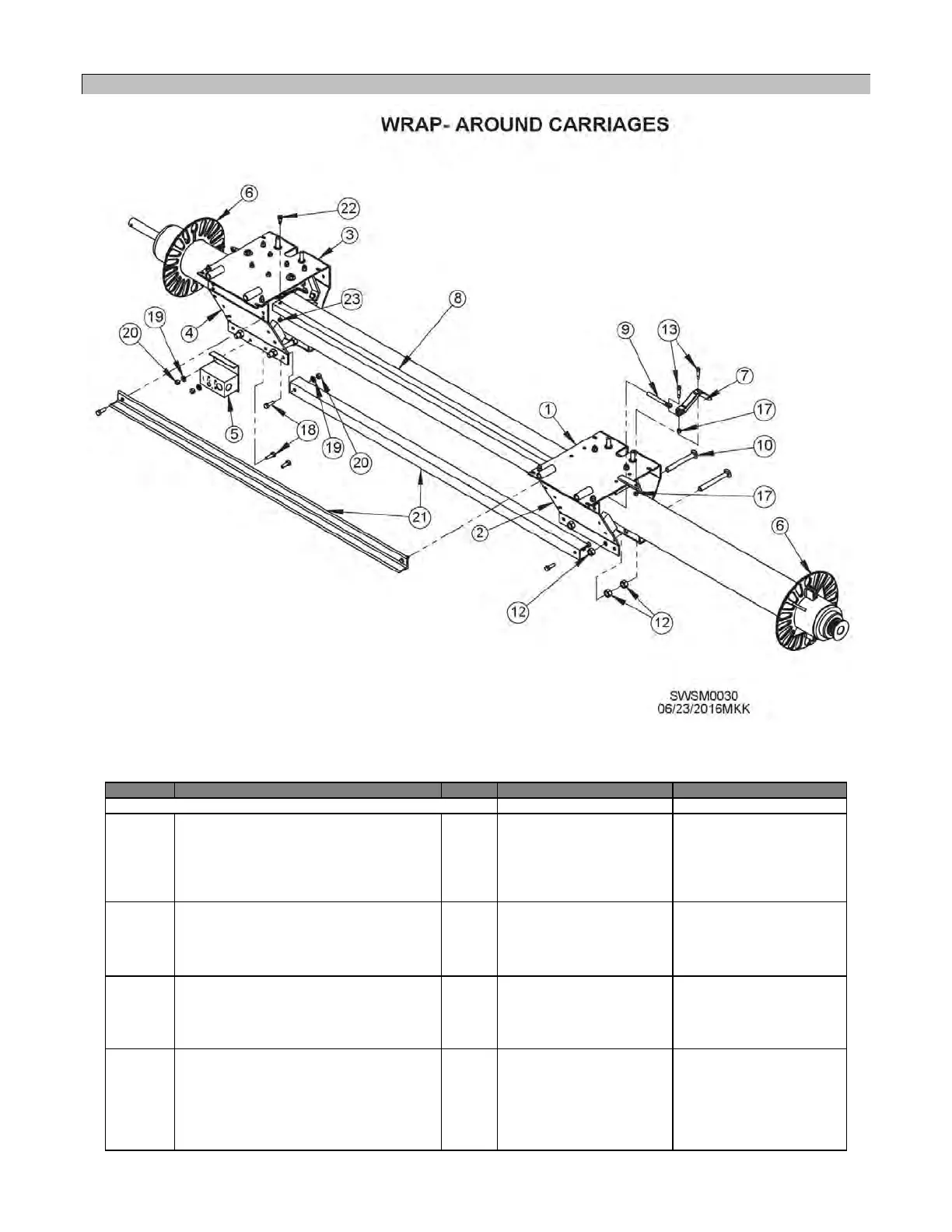

Figure 57 - Wrap-Around Carriage, Exploded View
Table 25 - Wrap-Around Carriage Parts List
Ref #
Description
Qty
Comp. #
Comp. #
Crosstubes 4-1/2”
Crosstubes 5-1/2”
Satellite Carriage, assembled
1
A8502
A6135
1
Satellite Body
1
A5696
A6105
2
Satellite Wing
1
A5697
A6111
Primary Carriage, assembled
1
A8501
A6130
3
Primary Body
1
A5693
A6100
4
Primary Wing
1
A5694
A6110
5
Junction Box
1
A8139
A8139
6
Complete Reversing Plate Assy w/ hardware
2
A8034
A8049
Reversing Carriage Plate, (1/2 plate)
4
A80342
A8060
7
Toggle Arm
1
A8505
A8505
8
Reversing Rod
1
Specify machine size
Specify machine size
9
Bolt, Hanger
1
A8550
A8550
10
Bolt, Carriage,
4
J07592
J07611
11
Lockwasher, 1/2”
4
J1215
J1215
12
Nut, Hex, 1/2”
12
J1040
J1040
13
Shoulder Bolt, 5/16”, 3/4”, 1/4-20 thread
2
J0521
J0521
17
Locknut, 1/4-20, PLT, Nylon
2
J0992
J0992
18
Bolt, 5/16” x 1”
6
J0527
J0527
19
Lockwasher, 5/16”
6
J1205
J1205
20
Nut, Hex 5/16”
6
J1002
J1002
21
Tie Bar
2
Specify machine size
Specify machine size
22
Shoulder Bolt, 8 mm, 10, 6 mm thread
1
J0538
J0538
23
Locknut, 6 mm, Nylock
1
J0998
J0998
