Assembly & Installation
III. Installing Stabilizer Arm Kit
(Stabilizer arm kit is standard with Fastir units ordered after 2007.)

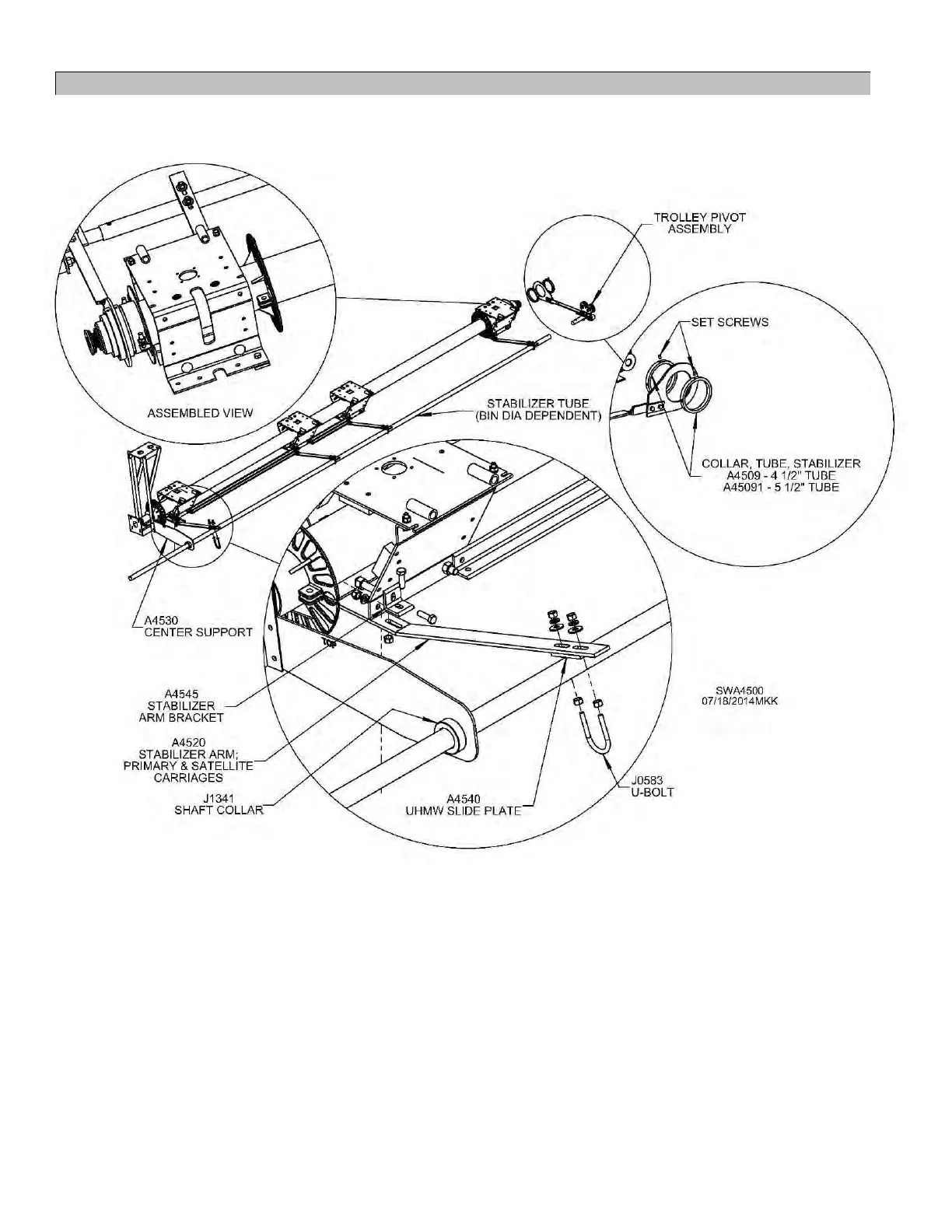

Figure 14 - Stabilizer Arm Assembly on Quad Unit
10 Installation of stabilizer arm requires that
brackets be attached to all carriages (primary,
satellite, and, if present, stationary outside
carriages). All three types of carriages use the
same brackets, which are supplied by Sukup
Manufacturing Co.
11 Bolt center support to center hanger using 2 3/8”
holes in center hanger. Ensure bottom of center
support is flush with bottom of center hanger
assembly. Word “TOP” is etched on center
support (A4530) to aid in positioning.
12 Attach stabilizer arm brackets to primary and
satellite carriages on opposite sides of auger.
13 Adjust U-bolts on stabilizer tube so they are
loose enough to allow primary and satellite
carriages to slide freely.
14 Assemble trolley assembly as described on
page 20 and shown in Figure 15.
