Sukup Fastir - Electrical Junction Box Assembly

Fastir Parts Assembly Manual
64
VII. Electrical Junction Box Assembly

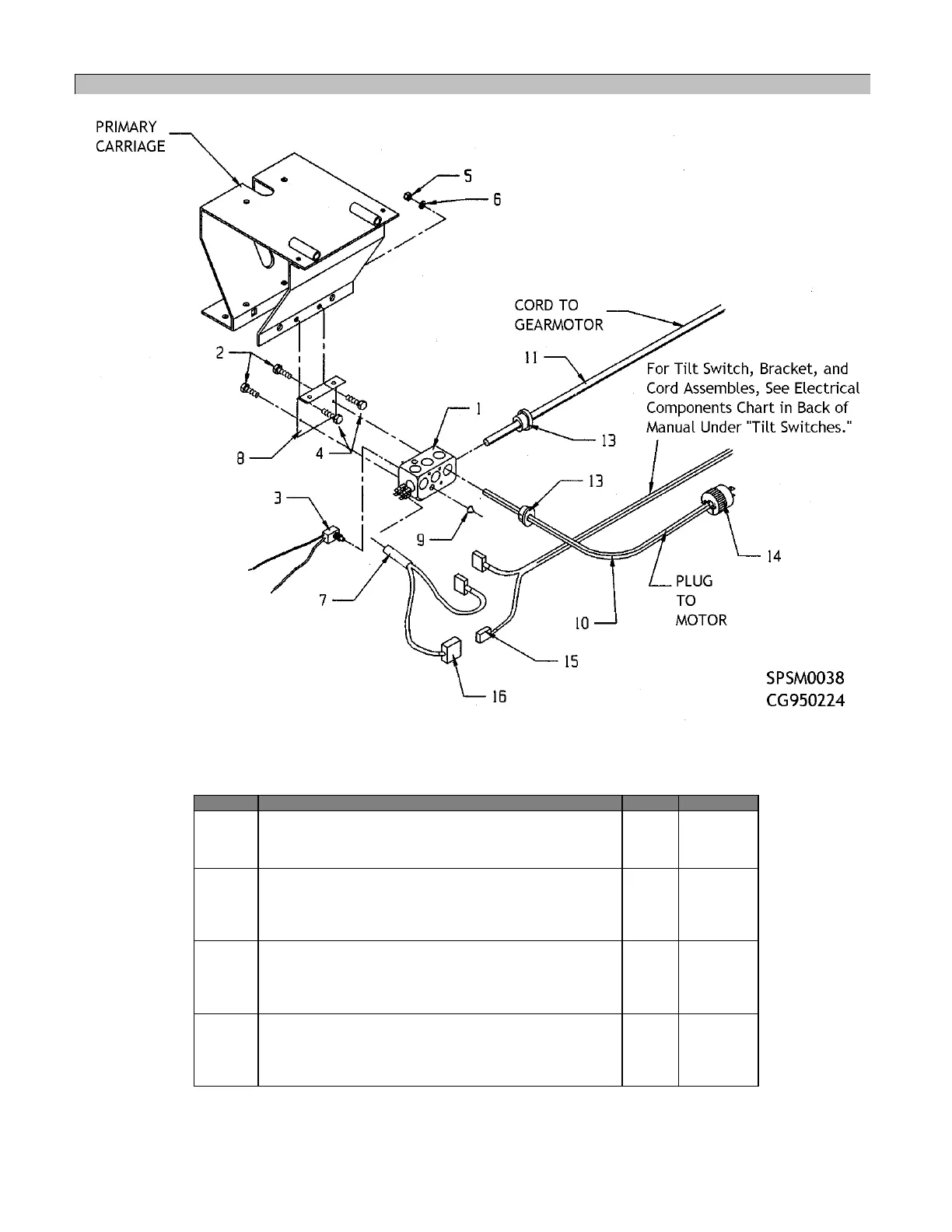

Figure 61 - Electrical Junction Box Assembly, Exploded View
Table 29 - Electrical Junction Box Assembly Parts List
Ref #
Description
Qty
Comp #
Junction switch box, w/15’4” CD & MT PLT
A8140
Junction switch box, w/17’10” CD & MT PLT
A8141
Junction switch box, w/20’4” CD & MT PLT
A8142
Junction switch box, w/22’4” CD & MT PLT
A8143
1
Electric Box
1
A8139
2
Screw #6-32 x 1/4”
2
J0455
3
Push Button (normally open)
1
J4485
4
Bolt, 5/16”- 18 x 1”
2
J0527
5
Nut, 5/16”- 18
2
J1002
6
Lockwasher, 5/16”
2
J1200
7
Tilt Switch w/connector
1-5
A5445
8
Mounting plate Electric Box
1
A8081
9
Switch cover, push button
1
J4500
10
Power Cord (18-3) 16” w/Plug
1
A5350
11
*Gearmotor Cord only 18-3
1
K6551
13
Heyco Bushing, 7-K-2
2
J5040
14
Plug 2474 3-prong male
1
J3715
15
Female Spade, 4 x 293
J3826
16
Male Spade, 4 x 292
J3822
* When ordering this part, machine size, number of down
auger, and/or cord lengths must be specified to match proper
parts.
