Sukup Fastir - Center Hanger Assembly

Fastir Parts Assembly Manual
56
II. Center Hanger Assembly

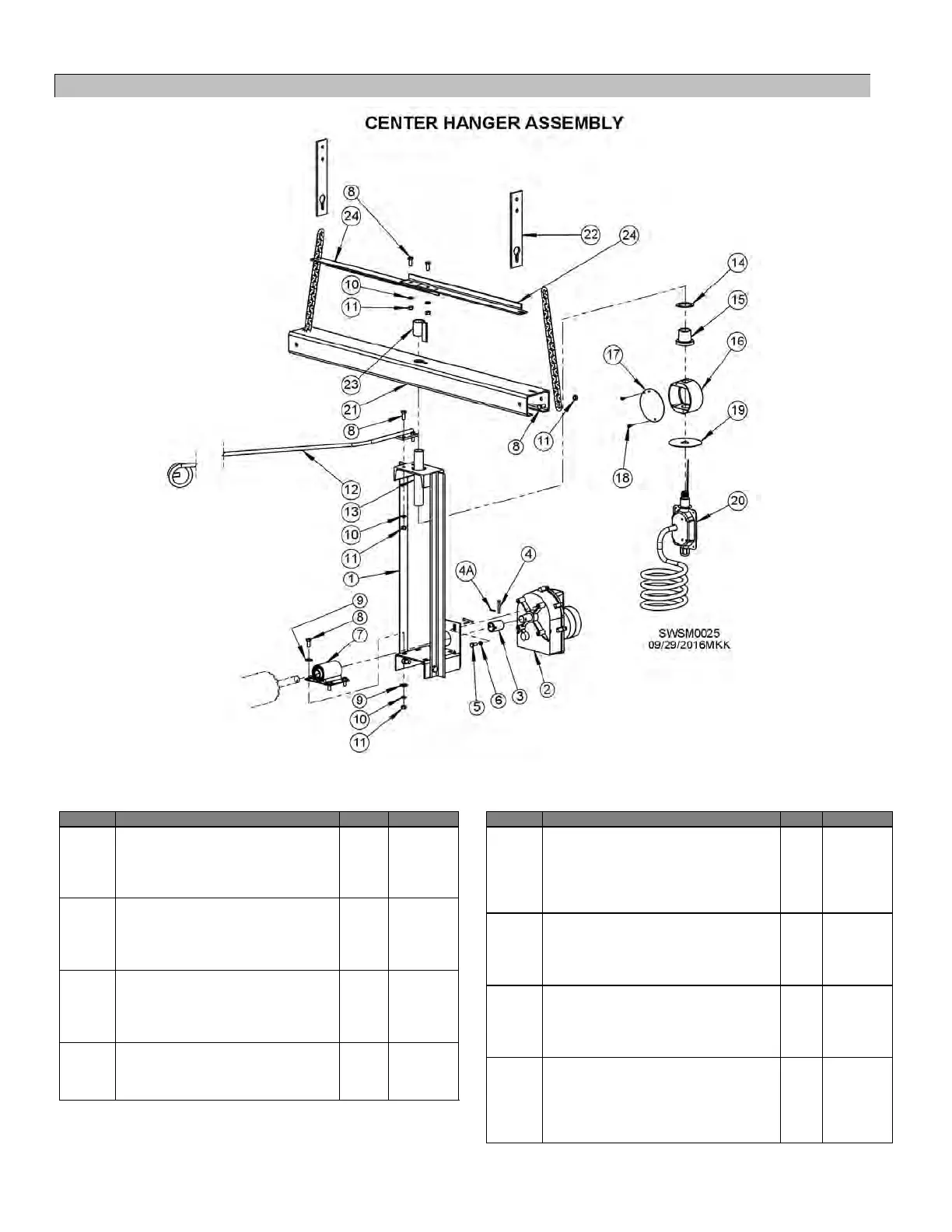

Figure 56 - Center Hanger Assembly, Exploded View
Table 24 - Center Hanger Assembly Parts List
Ref. #
Description
Qty
Comp.#
Ref. #
Description
Qty
Comp.#
1
Offset Center Hanger (Fastir)
1
A7504
13
Hanger Pipe 8” x 1” 18’-24’2”
1
A5603
2
H.D. Gearmotor 230V
1
A5319
Hanger Pipe 24” x 1” 27’-27’10”
A5604
3
Tube Coupler, 1” ID
1
A5318
Hanger Pipe 32” x 1” 29’-31’
A5605
4
Clevis Pin, 1/4” x 1-3/4” PLTD
2
J1538
Hanger Pipe 48” x 1” 33’-37’
A5607
4A
Cotter Pin, 1/16”x 3/4” PLTD
2
J1419
Hanger Pipe 72” x 1” 39’-42’
A5606
5
Bolt, 5/16”- 18 x 3/4” GR5
4
J0520
Hanger Pipe 96” x 1” 48’-49’3”
A5608
6
Lockwasher, 5/16”
4
J1200
14
Brass Washer
1
A5601
7
Pillow Block w/ 1” brgs
1
A5649
15
Cast Bushing
1
A5602
* Pillow Block w/ 1-1/4”
A5651
16
Cast Electric Junction Box
1
A5612
Center Brg for Pillow Block 1”
J0030
17
Junction Box Cover
1
A5658
* Center Brg for Pillow Block 1-1/4”
J0039
18
Screw, 10-32,1/2”, SHW HD Self Tap.
3
J0478
Snap Ring for Pillow Block 1”
2
J3597
19
Drip Plate
1
A5611
* Snap Ring for Pillow Block 1-1/4”
2
J35982
20
Rotating Contact
1
8
Bolt, 3/8” -16 x 1” GR5
8
J0606
(see separate breakdown for size)
9
Flatwasher, 3/8”
4
J1117
21
Channel Hanger
1
A4827
10
Lockwasher, 3/8”
8
J1205
22
Hanger, 11” large stirring machine
2
A7509
11
Nut, 3/8”- 16
8
J1020
23
Coupling w/ tab
1
A56101
12
Cord Hanger
1
A5609
24
Chain Spreader Bar Kit - optional
1
A5635
Cord Hanger, extra long
A5598
(kit includes hardware & instructions)
* 40' and larger bins
25
Chain, 4-1/2’ (Bins up to 22’)
2
A4823
Chain, 5-1/2’ (Bins 22’1” to 34’)
2
A4824
Chain, 6-1/2’ (Bins 34’5” on up)
2
A4825
