Sukup Fastir - Gearmotor

Fastir Parts Assembly Manual
67
X. Gearmotor

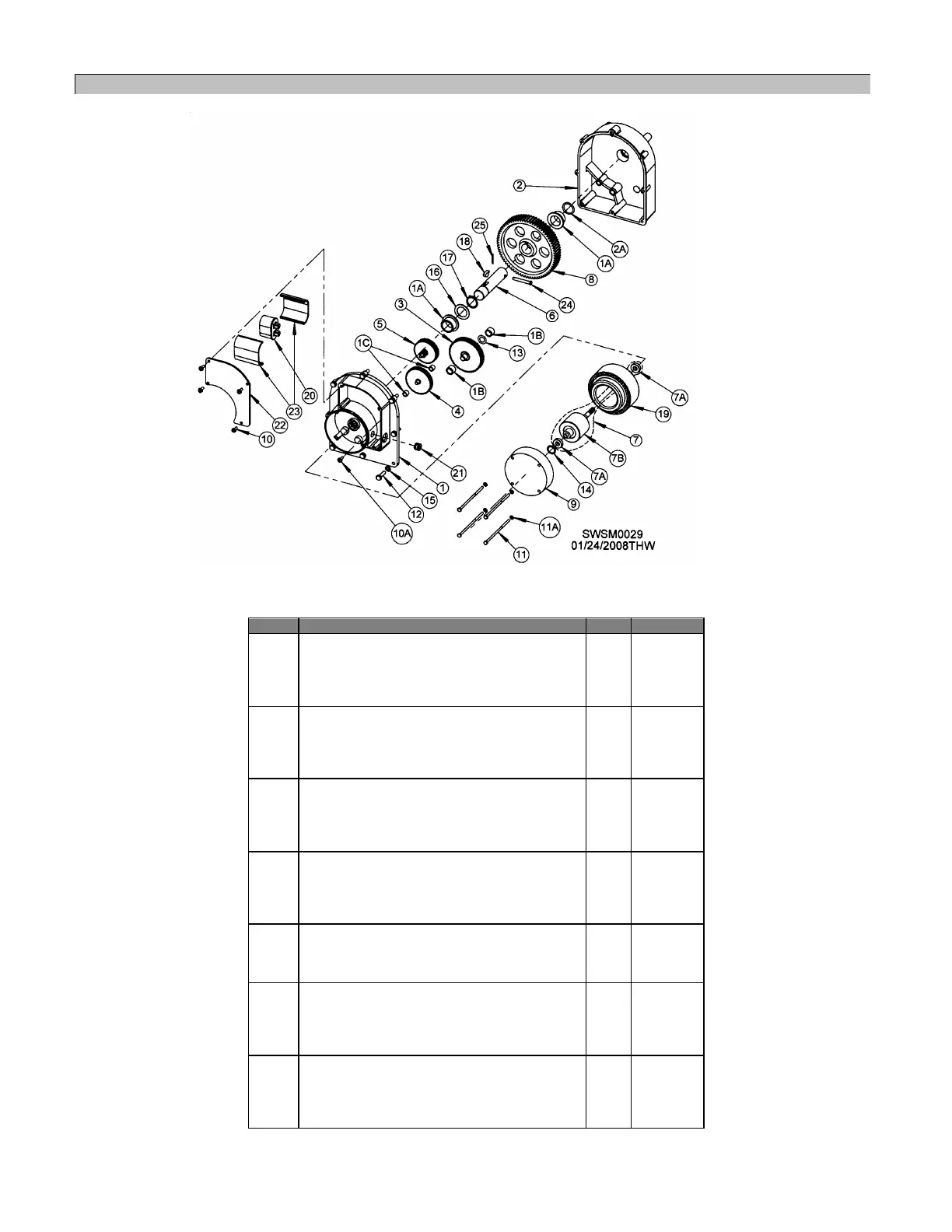

Figure 64 - Gearmotor, Exploded View
Table 32 - Gearmotor Parts List
Ref #
Description
Qty
Comp #
Gearmotor, HD, 230V, Reg, w/ Capacitor
1
A5319
1
Case, Top, w/ Junction Box & Bushings
1
A5301-01
1A
Bushing, #1 Shaft
2
J3500
1B
Bushing, #2 Shaft
2
J3505
1C
Bushing, #3 Shaft
2
J3510
2
Case, Bottom, Casting Machined
1
A5302-01
2A
O Ring, 214, .984ID x .139C/S
1
J3540
3
Gear, #2, (Steel, 65 Teeth w/Pinion)
1
A5292
4
Gear, #3, (Steel, 61 Teeth)
1
A5293
5
Gear, #4, (Fiber, 72 Teeth)
1
A5306
6
Shaft, Output, HD Gearmotor, 1” x 4.75” L
1
A5308
7
Armature & Shaft, 230V. w/ bearings
1
A5310L
7A
Bearing, .375” ID, .875” OD
2
J0015
7B
Rotor w/ shaft 115 & 220V
1
J3666
8
Gear, #1, (Large Metal, 72 Teeth)
1
A5321
9
Cover, Field, End Bell
1
A5325
10
Screw, #10-32, ½”
5
J0478
10A
Screw, #10-32, ½" (Painted green for 'ground')
1
J0478
11
Screw, #10-32, 4.50, PLT, HHMS
4
J0500
11A
Washer, Lock, #10, Int Tooth, PLT
4
J1191
12
Screw, ¼” -20, 1”, PLT, GR5, HHCS
8
J0508
13
Flatwasher, .875” OD, .505, .010
1
J1150
14
Wafer Spring Washer, WO-855, .010
1
J1160
15
Lockwasher, 1/4”, Split
8
J1195
16
Bushing, Machine, 1”- 18 Ga.
1
J1266
17
Snap Ring, 1.00, 5100-100, Truarc
1
J3585
18
Key, Half-moon, HD, .25” x .75” (806)
1
J3600
19
Stator, Grmt., 230V, HD (93)
1
J3626
20
*Capacitor, 5MFD, 370V
1
J4930
21
Grommet, Rubber, #2335, 1/4” x 5/8”
1
J4971
22
Casting, Gearmotor, Elec. Box Cover
1
K5436
23
Foam, 2 ½" x 3 ½"
2
A5327
24
Pin, Clevis, ¼" x 1 ¾", PLTD
1
J1538
25
Pin, Cotter, 1/16 x ¾, PLT
1
J1419
* Capacitor comes installed in gearmotor at factory.
