Sukup Fastir - Reversing Mechanism Assembly

Fastir Parts Assembly Manual
65
VIII. Reversing Mechanism Assembly

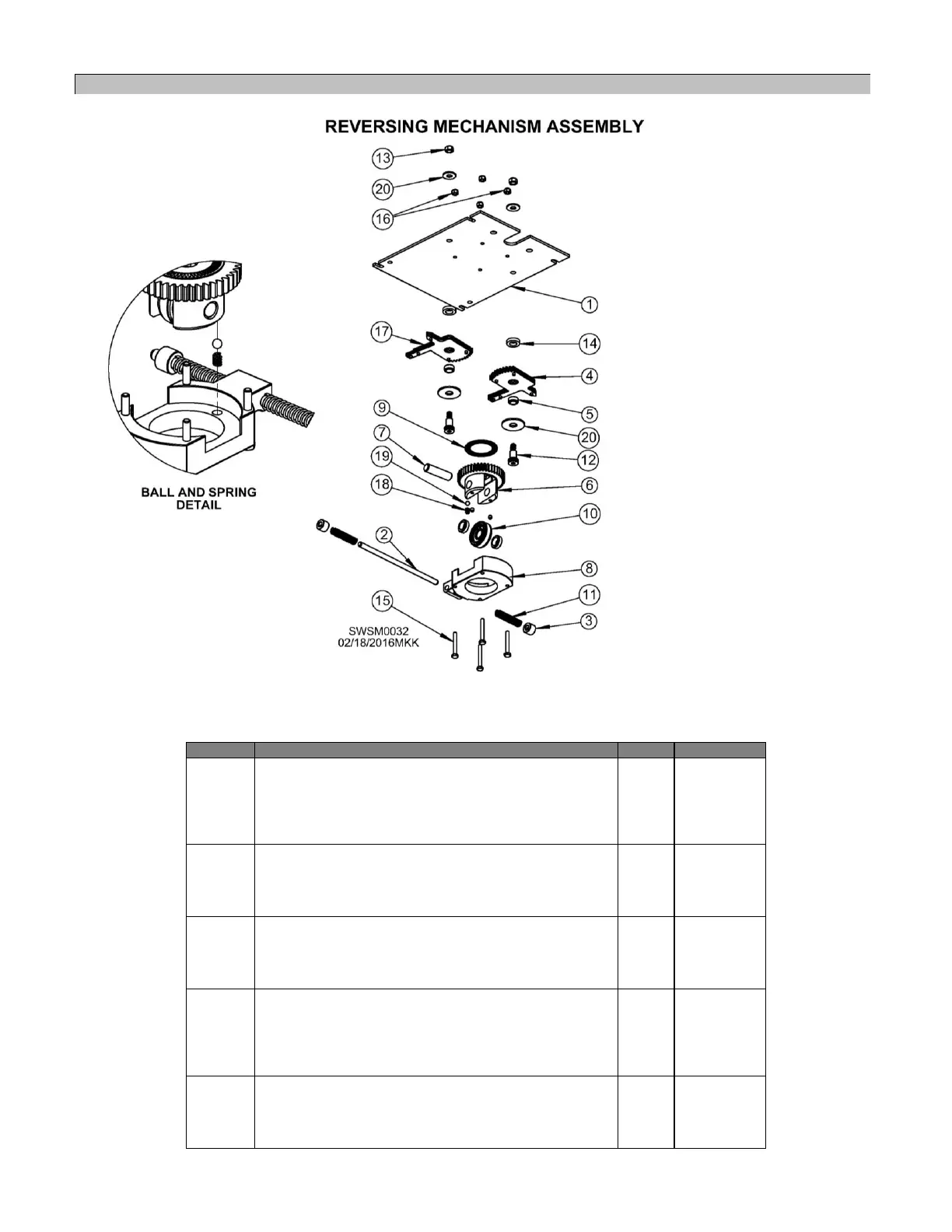

Figure 62 - Reversing Mechanism Assembly, Exploded View
Table 30 - Reversing Mechanism Assembly Parts List
Ref #
Description
Qty
Comp #
1
Plate Reversing Carriage
1
A5693
2
Reversing Rod 8-1/4” long (Prior to 2010/06)
1
A8059
Reversing Rod 8-5/8” long (2010/06 and later)
1
A80593
3
Shaft Collar 3/8”
2
J1319
4
Toggle Gear
1
A80453
5
Bushing, 1/2” x 3/4” x 5/8”
2
J00823
6
Directional Gear
1
A8043
Set Screws 1/4” x 1/4”
2
J1074
7
Pin, 2-3/8” long
1
A8044
8
Housing
1
A8042
9
Thrust Bearing
1
J0058
10
* Knurled Drive Bearing (Replacement for J0057)
1
A80691
(Complete with Bushings)
Knurled Bearing
1
A8069
Bushing, .339
2
A8074
Snap Ring, 1.5652 TRC
1
J3696
11
Compression Spring LC063GH11 (Prior to 2010/06)
2
J2348
Compression Spring LC063GH13M (2010/06 and later)
2
J23489
12
Bolt, 1/2”- 13 x 1-1/2” - GR5
2
J07229
13
Nut, 1/2” - 13, Center Lock Jam
2
J1025
14
Machine Bushing, 1/2” - 18 Ga.
2
A85075
15
Bolt, 1/4”-20 x 2” GR5
4
J05134
16
Lock Nut, 1/4”-20
4
J0992
17
Reversing Gear
1
A80452
18
Spring, Comp, 5/16” OD x .54” long
1
J2363
19
Ball, Steel, 5/16”
1
J3308
20
Flatwasher, 3/8, PLT
2
J1117
