2.2.5.5 Analog SD MPEG2 Encoding Card
Analog SD MPEG2 Encoding Card provides the video input interface of 75ΩBNC, and
provides audio input interface as the phoenix printed circuit board terminals of MINI
COMBICON (MC) socket and plug, plug direction parallel with conductors axial. Analog

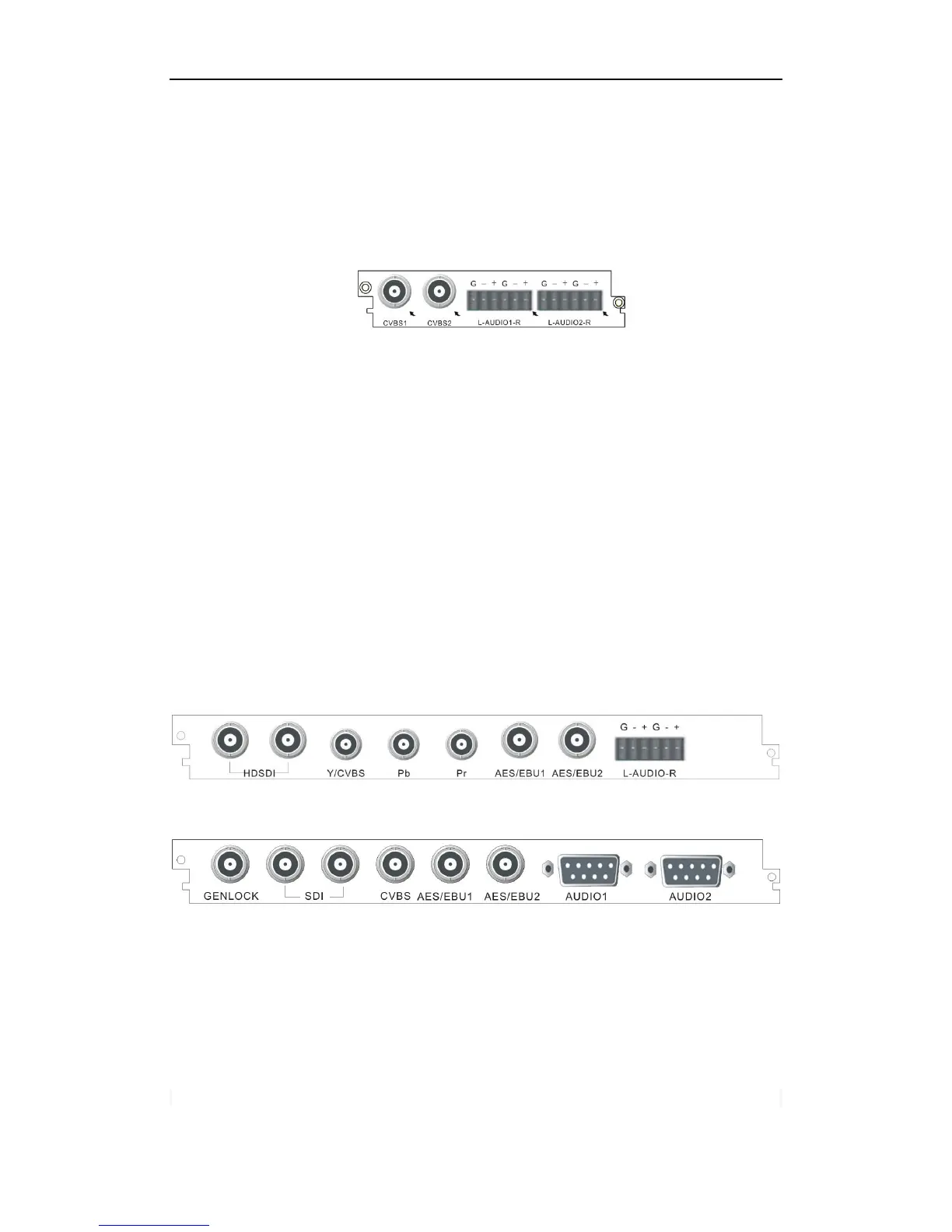

SD MPEG2 Encoding Card is shown in Fig. 2-9.
Fig. 2-9 Analog SD MPEG2 Encoding Card
2.2.5.6 HD 422 Decoding Card
HD 422 Decoder Card has two types hardware 2.0 as Fig. 2-10, hardware 3.2 as Fig.
2-11.
Hardware 2.0 provides two HD-SDI digital video output interfaces, one group of analog
video output interfaces CVBS / YPbPr , 2 AES / EBU digital audio output interfaces, and
also an analog audio (balanced) output interface with the interface of phoenix printed
circuit board terminal MINI COMBICON (MC) type socket.
Hardware 3.2 provides one GENLOCK frame synchronization signal input interface, two
HD-SDI digital video output, an CVBS analog video output interface, two AES / EBU
digital audio output interfaces, 2 audio output interfaces with DB-9 (male), which contains
an analog balanced audio and an digital balanced audio.
Fig. 2-10 HD 422 Decoding Card (hardware 2.0)
Fig. 2-11 HD 422 Decoding Card (hardware 3.2)
2.2.5.7 4-frequency DVB-S2 Demodulation Receiving Card
4-frequency DVB-S2 Demodulation Receiving Card provides four RF input interfaces for
DVB-S/S2 standard RF signal reception, Fig. 2-12 shows 4-frequency DVB-S2
Demodulation Receiving Card.
