SUMAVISION TECHNOLOGIES EMR3B User Manual

SUMAVISION EMR Operation Introduction
32 /53
5.2.5 4-frequency DVB-T2 Demodulation Receiving Card
4-frequency DVB-T2 Demodulation Receiving Card provides 4 RF input interfaces, for
DVB-T/T2 standard RF signal reception. The WEB Network Management System can be
used to search the current status information and set receiving parameters of 4-frequency
DVB-T2 Demodulation Receiving Card, as shown in the following figure:

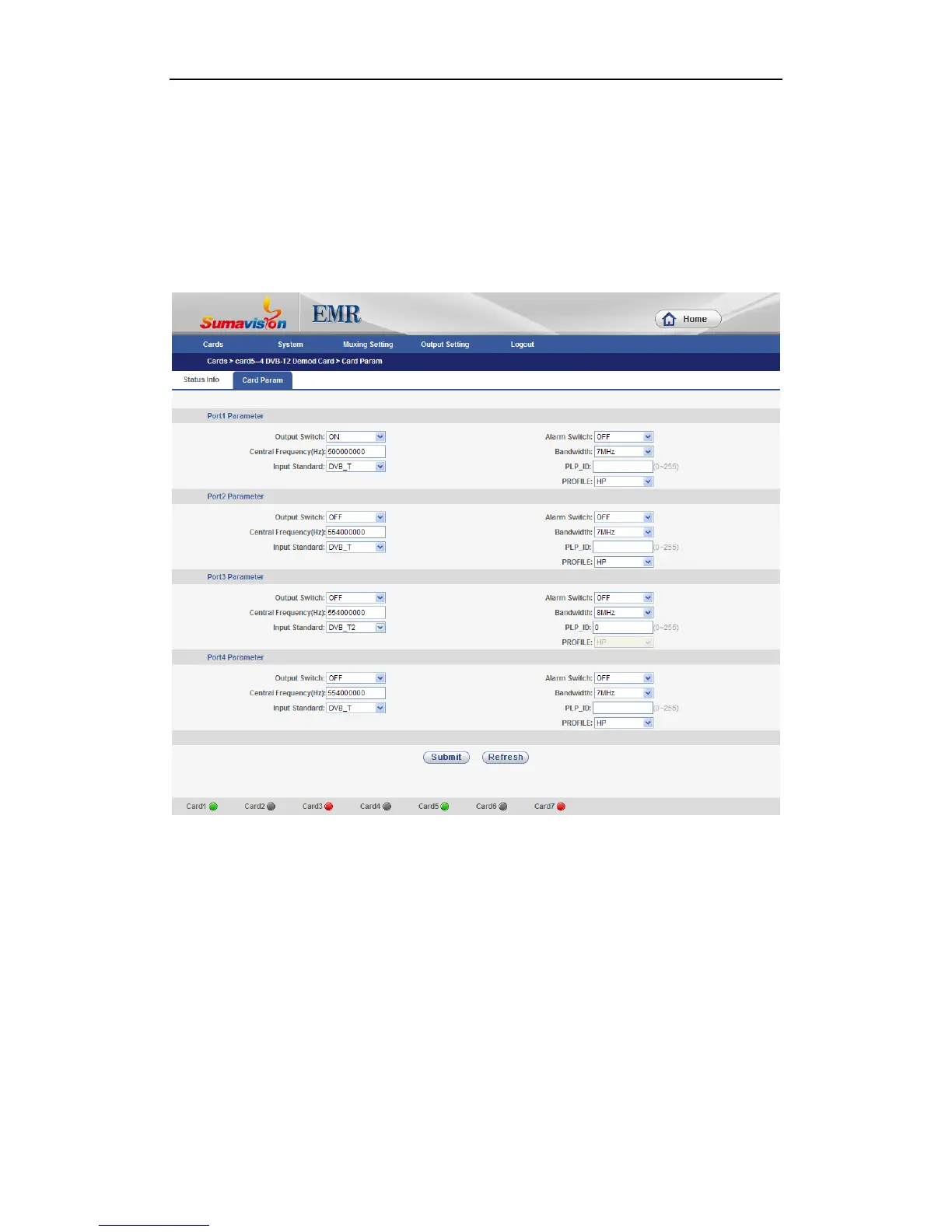

WEB Network Management Screen
5.2.6 Analog SD MPEG2 Encoding Card
Analog SD MPEG2 Encoding Card can encode 2 analog programs, including video and
audio, into TS format. The WEB Network Management System can be used to search the
current status information and set receiving parameters of Analog SD MPEG2 Encoding
Card, as shown in the following figure:

SUMAVISION TECHNOLOGIES EMR3B Specifications

General

Brand	SUMAVISION TECHNOLOGIES
Model	EMR3B
Category	Network Router
Language	English
