SUMAVISION TECHNOLOGIES EMR3B User Manual

SUMAVISION EMR Operation Introduction
51 /53
Annex A

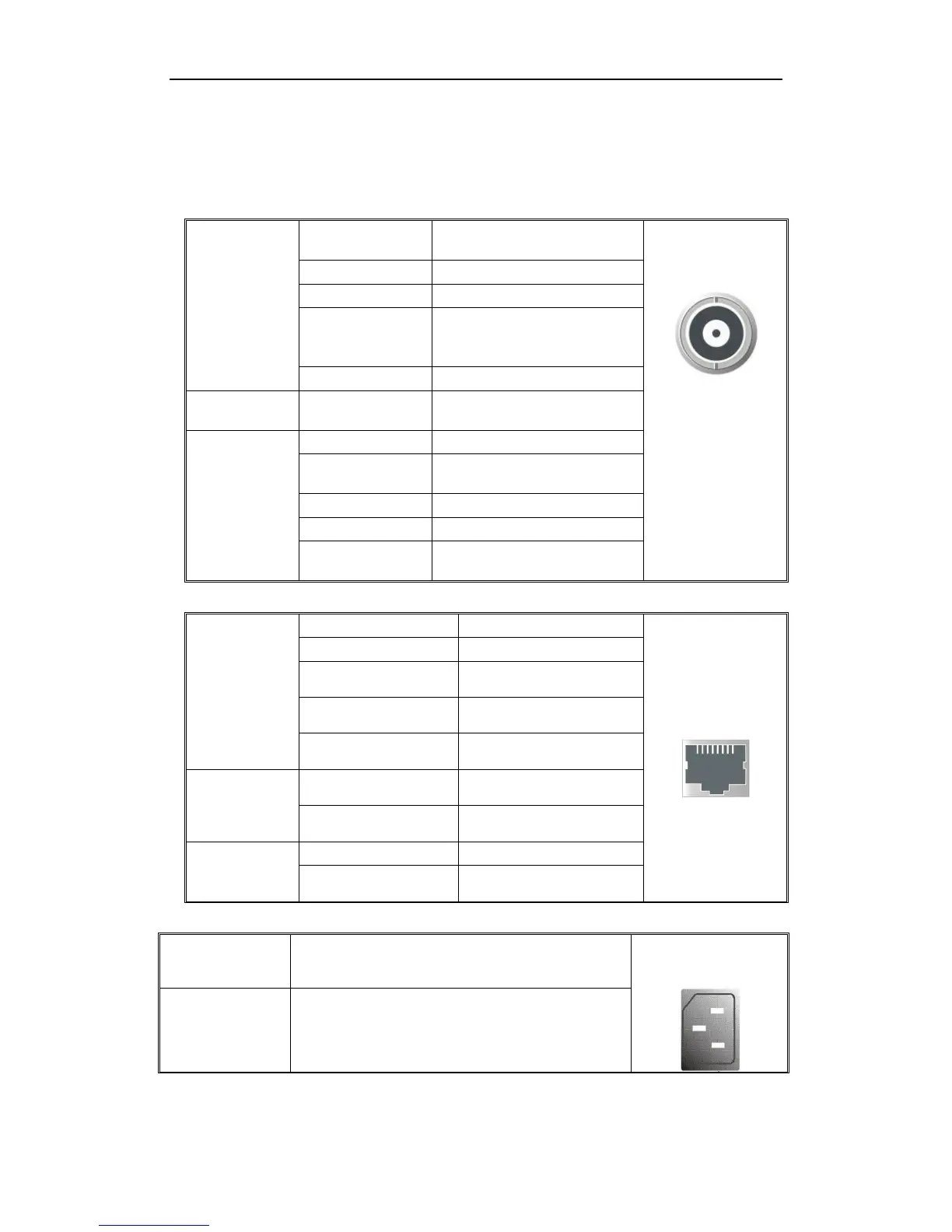

Table 8-5 Parameters of input/output ASI interface
Electrical
characteristics
Normal
impedance
75Ω
Its appearances
can be shown as
the figure below:
Frequency range
0-2GHz
Voltage rating
500 VRMS (Sea-level Max.)
Dielectric
withstand
voltage
1500 VRMS (Sea-level Min.)
VSWR
1.5 (Max)
Material
characteristics
Main part and
metal fittings
Nickel plating
Mechanical
characteristics
Insertion force
Max. acrotorque 2.5 lbs
Pullout force
Maximum axial tensile force
3 lbs
Nut pulling force
Min. 100 lbs
Centric pin thrust
Min. 6 lbs
Durability
More than 500 times
drawing
Table 8-6 Ethernet interface connector parameters
Electrical
characteristics
Maximum current
2 amps
Its appearances
can be shown as
the figure below:
Insulation resistance
5000 megohms
Signal pin DC
resistance
30 milli-ohms @100 mA
Metal shell shielding
force
Min. 20dB (20-200MHz)
Applicable ambient
temperature
-50～+105 ℃
Material
characteristics
Signal pin contact
surface plating
Metal shell, tin-plated
Filler
UL90V-0 retardant
thermoplastic
Mechanical
characteristics
Durability
750 times
Insertion/pullout
force
Max. 5 lbs
Table 10-3 Power Socket Parameters
GB 1002-1996
Types, basic parameters and dimensions of
single phase plugs and socket-outlets for
household and similar purposes
Its appearances can
be shown as the
figure below:
GB 2099.1-1996
Plugs and Socket-outlets for Household and
Similar Purposes － Part1: General
Requirements

SUMAVISION TECHNOLOGIES EMR3B Specifications

General

Brand	SUMAVISION TECHNOLOGIES
Model	EMR3B
Category	Network Router
Language	English
