SUMAVISION EMR Operation Introduction
37 /53

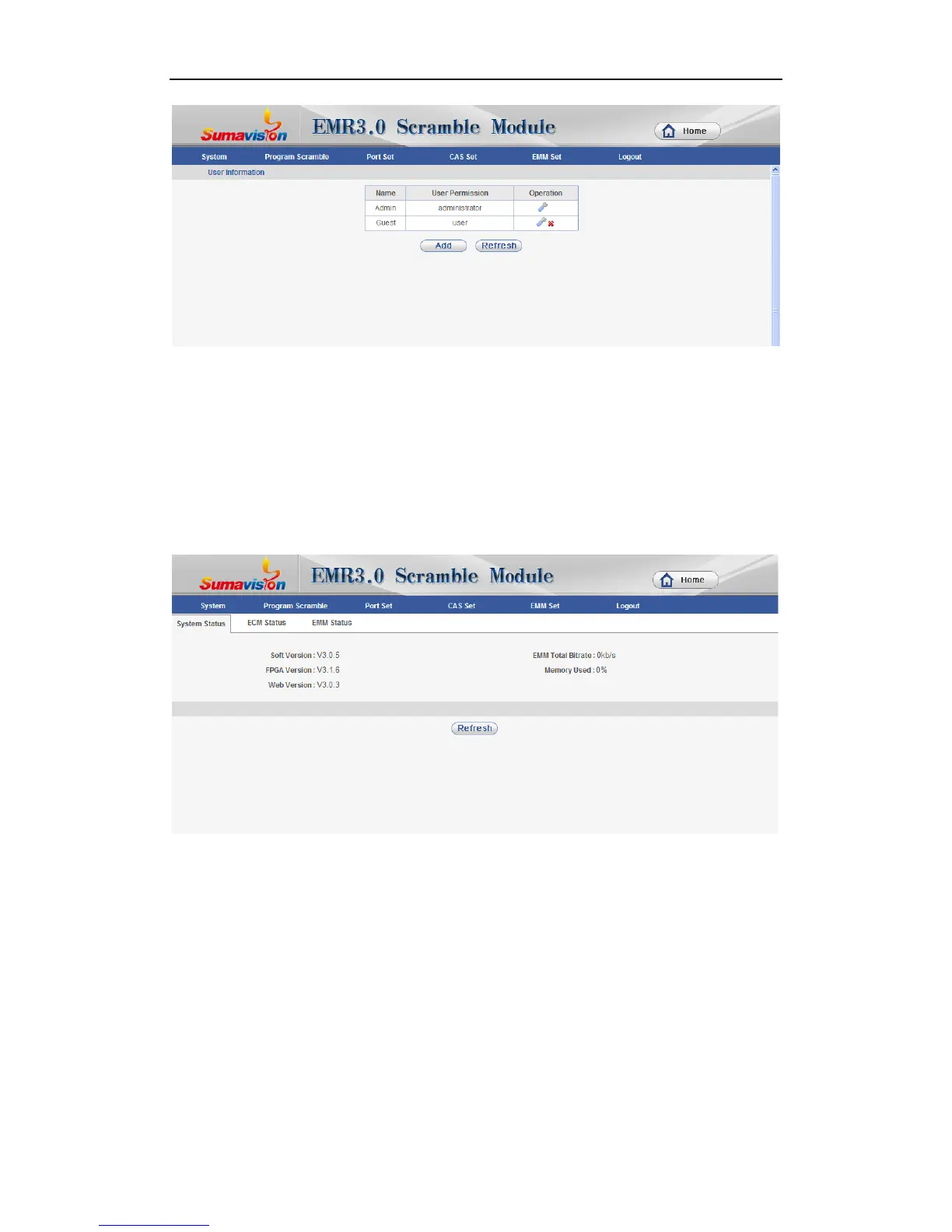

Fig. 5-5 User Information for Scrambling Web
 Status information: there are three sub pages: system status, ECM status
and EMM status. System status shows the version information of the system,
EMM’s total bit rate and EMM’s memory used percent,Fig. 5-; ECM status
shows the connect status of ECM, as shows in Fig. 5-7; EMM status shows
the connect status of EMM, as shows in Fig. 5-8.
Fig. 5-6 System Status
