FILLING THE RECHARGEABLE COLLAPSIBLE NEW
OIL CONTAINER
Types of oil: use only oils recommended by the manufacturer or by the car manufacturers.
Always refer to the information provided by the A/C system manufacturer. Never use waste oil.
Procedure:

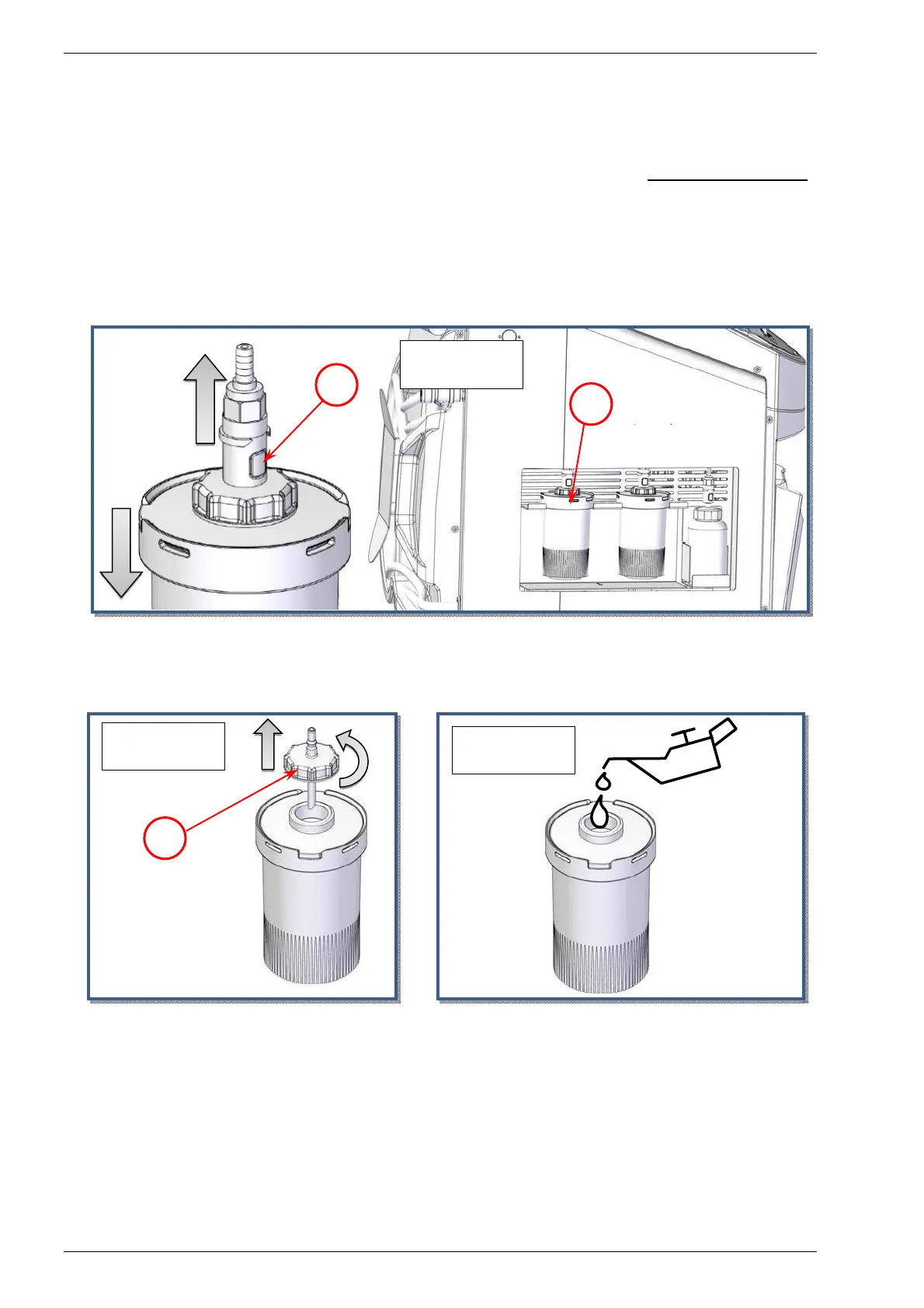

1. Press quick connection button (ref 1, Fig.29) to disconnect the oil container
OIL container (ref j, Fig.29);
2. Remove the container from its lodging
3. Hold the container and unscrew the cap (ref 2, Fig.30). Fill the container (Fig.31) with
the correct quantity (about 250-260ml) of oil for compressors, of suitable type and
grade.
NOTE: in order to reduce humidity and air contamination of new oil, the collapsible container
has to be filled almost to the brim.
4. Screw the cap (ref 2, Fig.30) back into the container.
5. Replace the container and hook it up to the quick connection taking care not to exert
pressure on the scale in order not to damage it.
