Sun Microsystems BLIZZARD Qtech III - Control Panel Overview; Light Signal Indicators

INSTRUCTIONS MANUAL
-18-
FIG. 5
4
2
3
5
1
6
CONTROL PANEL

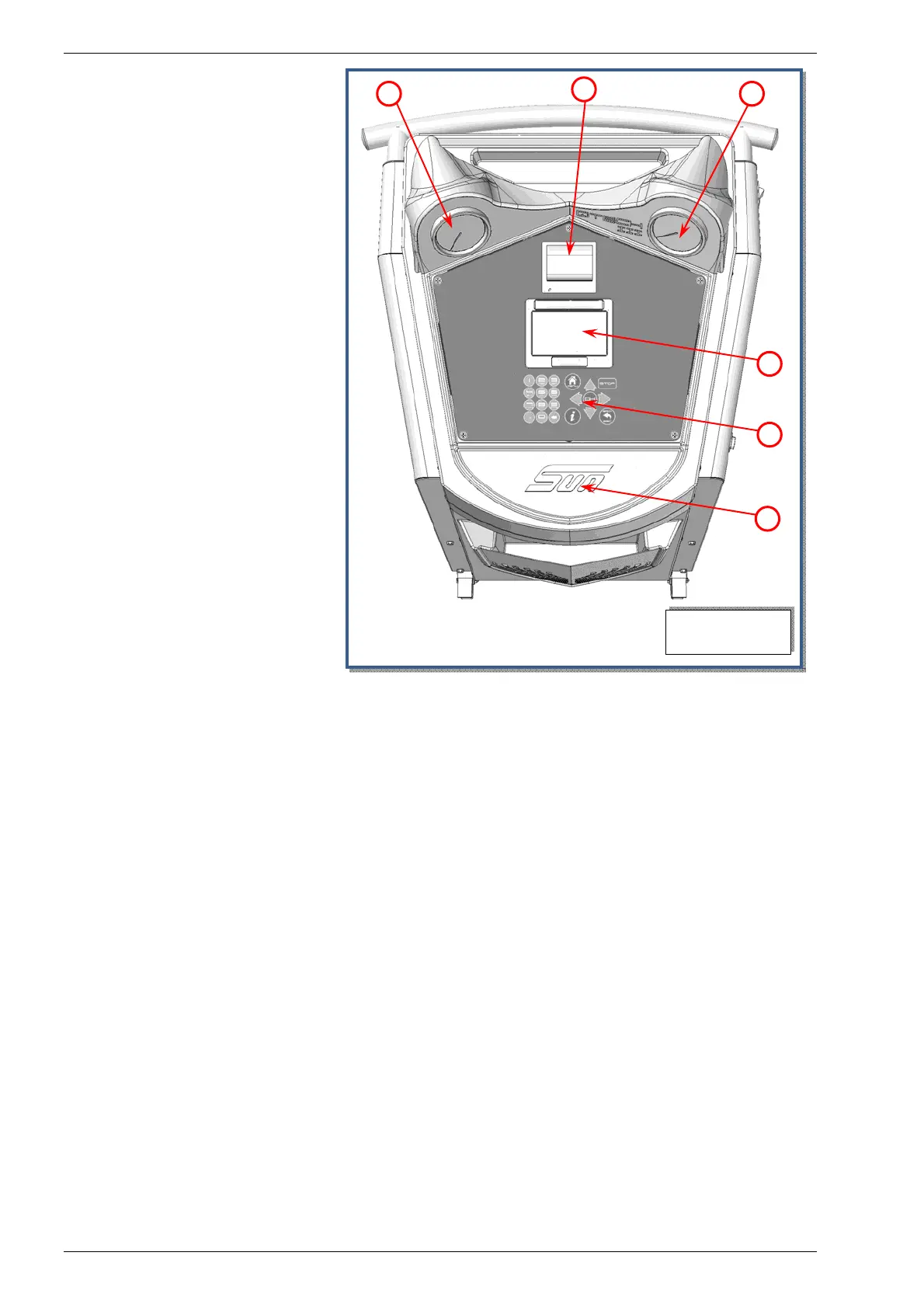

Refer to Fig.5 :
1) High pressure gauge
2) Low pressure gauge
3) Printer
4) 5” Graphic color display
5) Keypad
6) LED Light(*)
(*) if installed, depending on
machine model
LIGHT SIGNALS(*)
Only if the machine is provided with a LED Light (ref 6, Fig.5)
Light signals are the following:
 BLUE (STEADY): machine in stand by
 GREEN (STEADY): procedure running
 GREEN (FLASHING): procedure completed
 YELLOW (FLASHING): warning message
 RED (FLASHING): alarm message
