INSTRUCTIONS MANUAL
-33-
AUTOMATIC PROCEDURE
In the automatic mode, all the operations are performed automatically: recovery and recycling,
oil discharge, vacuum, new oil reintegration, and charging. The values for the quantity of gas
recovered, quantity of oil recovered, vacuum time, quantity of oil reintegrated, and quantity of
gas charged into the system are automatically printed at the end of each single operation.
Connect the hoses to the A/C system with the quick-connect couplings bearing in mind that
BLUE must be connected to the low-pressure side and RED to high pressure. If the A/C
system is equipped with a single quick-connect coupling for high or low pressure, connect only
the relative hose.

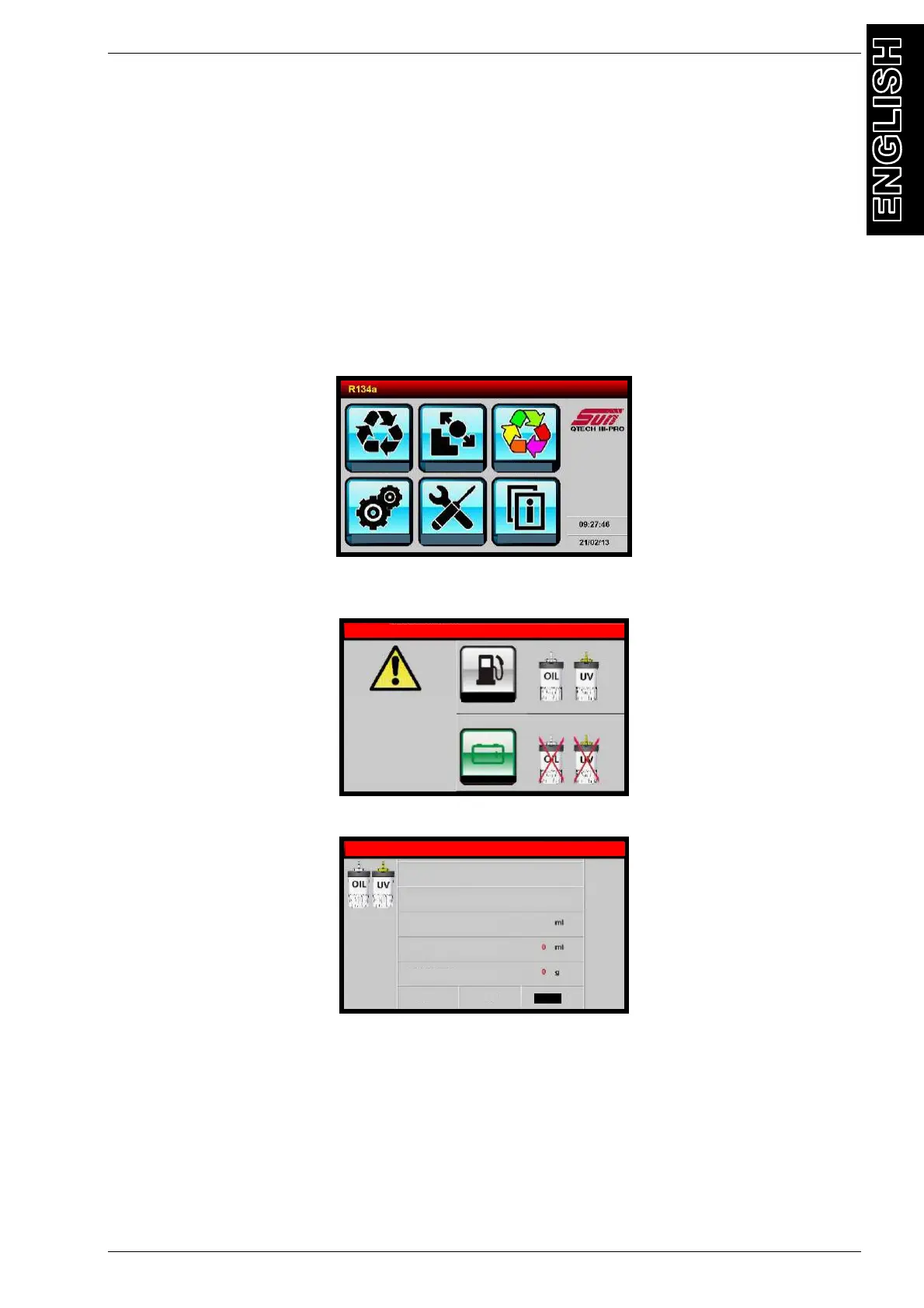

From the MAIN MENU:
Select the AUTOMATIC PROCEDURE, the following screen is displayed (only if the hardware
for hybrid vehicles is installed in the machine):
Select the STANDARD VEHICLE or HYBRID VEHICLE; the following screen will be displayed:
NOTE: When HYBRID VEHICLE is selected UV is disabled (except HYBRID UV).
NOTE: use arrows to scroll through menu items, then use the keypad to modify procedure
parameters
AUTOMATIC
MANUAL CUSTOM
SETUP
MAINTENANCE DATA
Hybrid Vehicle
Standard Vehicle
The use of PAG OIL or DYE
in hybrid cars is dangerous
for the safety of the operator.
Please use the
recommended oil with
specific device
R134a AUTOMATIC PROCEDURE
R134a AUTOMATIC PROCEDURE
LEAK CHEC
1 min
VACUUM TIME 10 min
U
GAS FILLING
HP
LP
HP+LP
OIL
