Sun Microsystems BLIZZARD Qtech III - Electrical and Hose Components

INSTRUCTIONS MANUAL
-24-

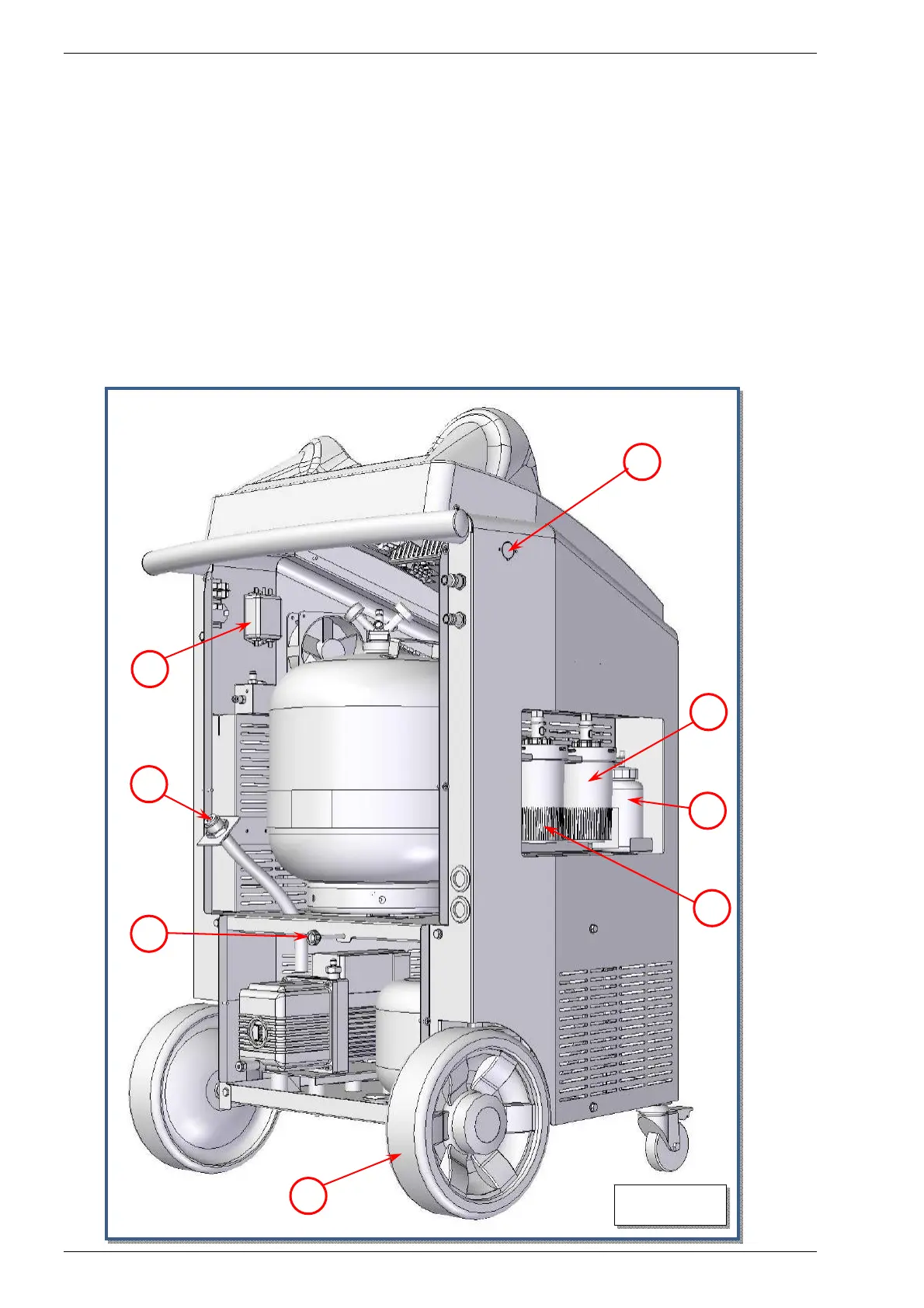

Refer to Fig. 9
q) Power supply filter
r) Oil pump filling cap
s) Refrigerant bottle lock knob
t) Rear wheel
u) New oil container
v) Used oil container
w) UV container
x) External analyzer connection (*)
(*) if installed, depending on machine model
