Product Description
2.1 System Introduction
The inverter is a transformerless 3-phase PV grid-connected inverter. As an integral compo-
nent in the PV power system, the inverter is designed to convert the direct current power
generated from the PV modules into grid-compatible AC current and to feed the AC current
into the utility grid.
Do not connect any local load between the inverter and the AC circuit breaker ex-
cept for the tracking axis.
The inverter is only applicable to the scenarios described in the manual and cannot
be used in other situations.
The intended usage of the inverter is illustrated in the following figure.

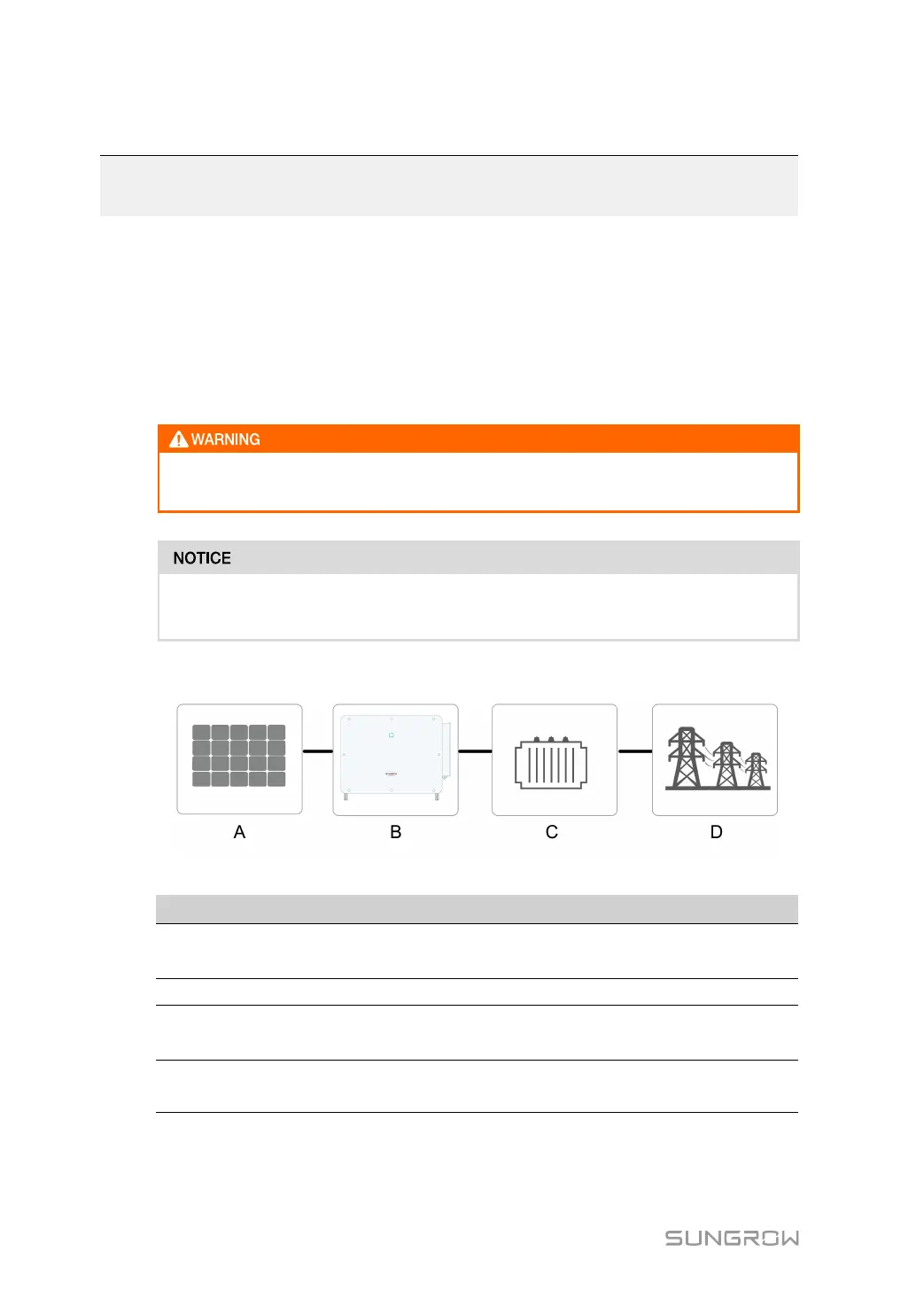

figure 2-1 Inverter Application in PV Power System
Item
Description
Note
A
PV strings
Monocrystalline silicon, polycrystalline silicon and thin-film
without grounding
B Inverter SG285HX / SG320HX / SG333HX / SG350HX
C Transformer
Raises the output voltage of the inverter to a level that meets
the requirements of the grid
D
Utility grid
The grid form supported by the inverter is shown in the figure
below
