Sungrow SG320HX - Wall-Mounted Installation

29

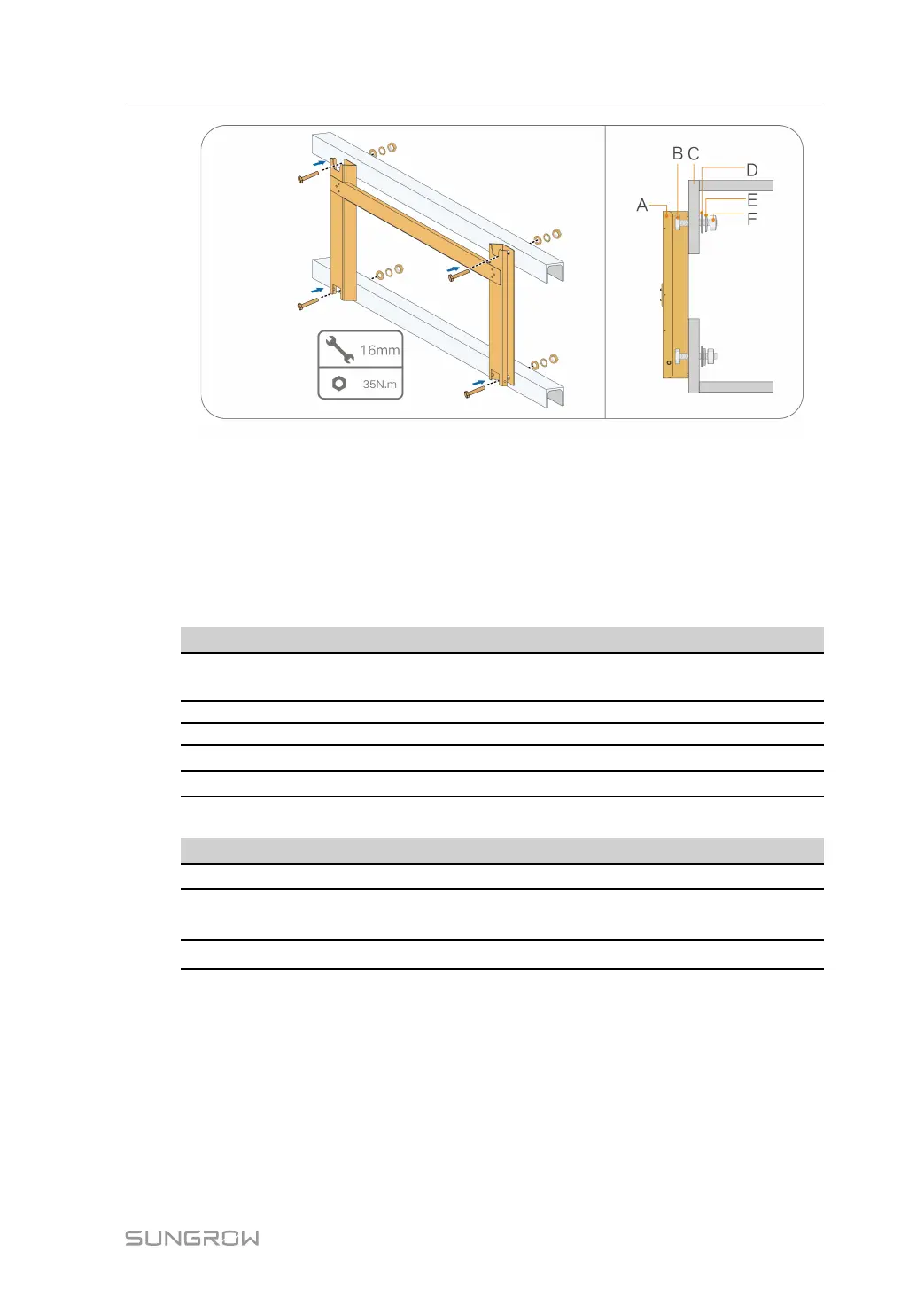

(A) Mounting-bracket (B) Full threaded bolt (C) Metal bracket
(D) Flat washer (E) Spring washer (F) Hex nuts
- - End
4.5.2 Wall-Mounted Installation
Tools
Item Specification
Phillips screwdriver / electric
screw driver
M4
Marker
-
Level
-
Hammer drill Drill bit: φ12
Wrench Opening: 16 mm
Spare parts
Item Quantity Specification Source
Grub screw 2 M4×10 Delivery scope
Expansion bolt
11 M10×95
(Recommended)
Self-prepared
Baffle plate
3
—
Self-prepared
step 1 Assemble the mounting-bracket by using the connecting bar.
User Manual 4 Mechanical Mounting
