65

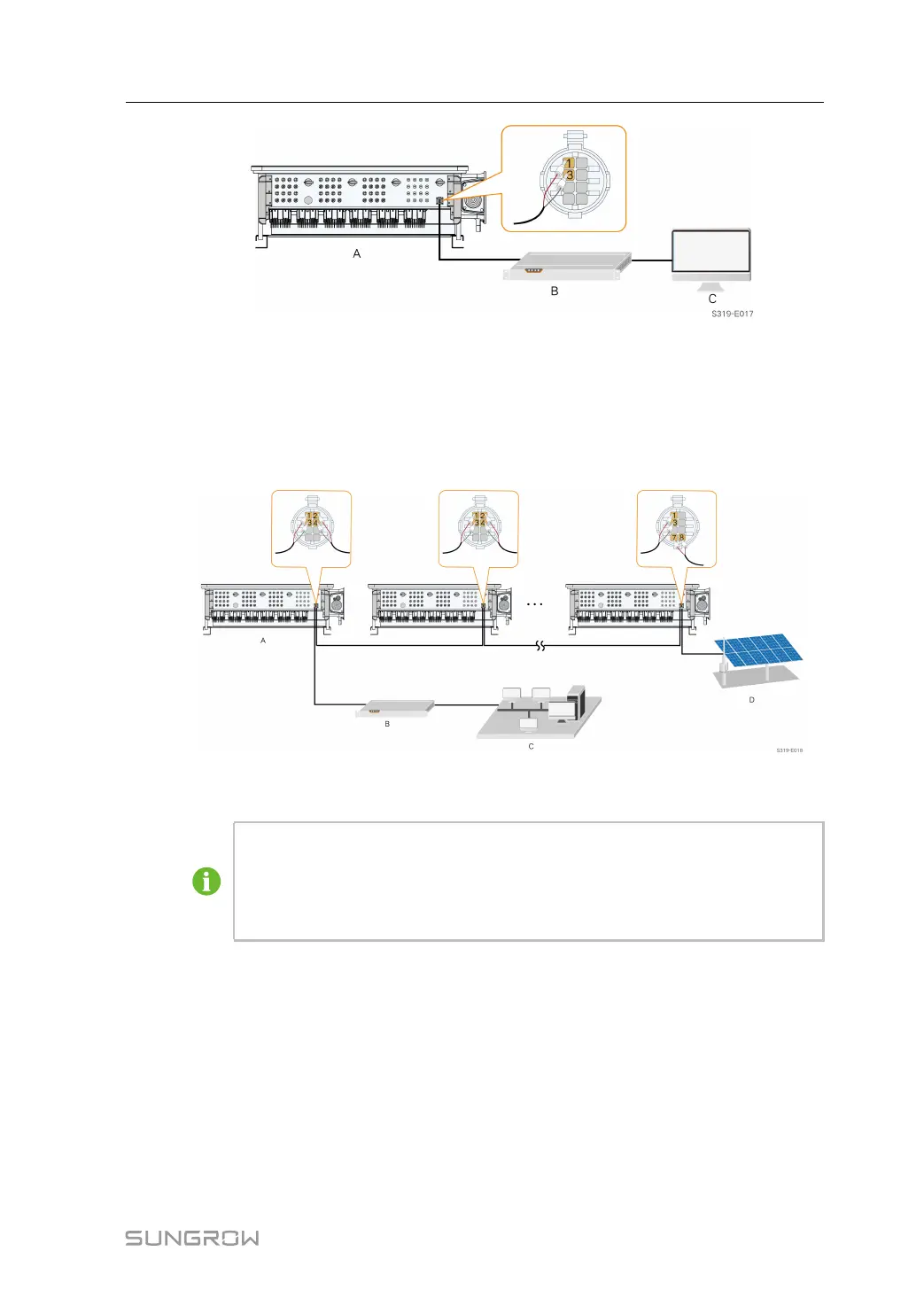

(A) Inverter (B) Data Logger (C) PC
Multi-inverter Communication System
In case of multiple inverters, all the inverters can be connected via RS485 cables in the
daisy chain manner. The communication cable of the tracking system can be connected to
the port RS485_2 of any inverter in the daisy chain.
(A) Inverter (B) Data Logger (C) PC (D) Tracking system
The length of the RS485 cable should be no longer than 1,000 m.
If multiple inverters are connected to the data logger, the number of permissible
daisy chains and the number of devices allowed to be connected should meet the
requirements (refer to the user manual for the data logger).
5.9.3 Connection Procedure
step 1 Unscrew the swivel nut from the communication terminal and take out the seal.
User Manual 5 Electrical Connection
