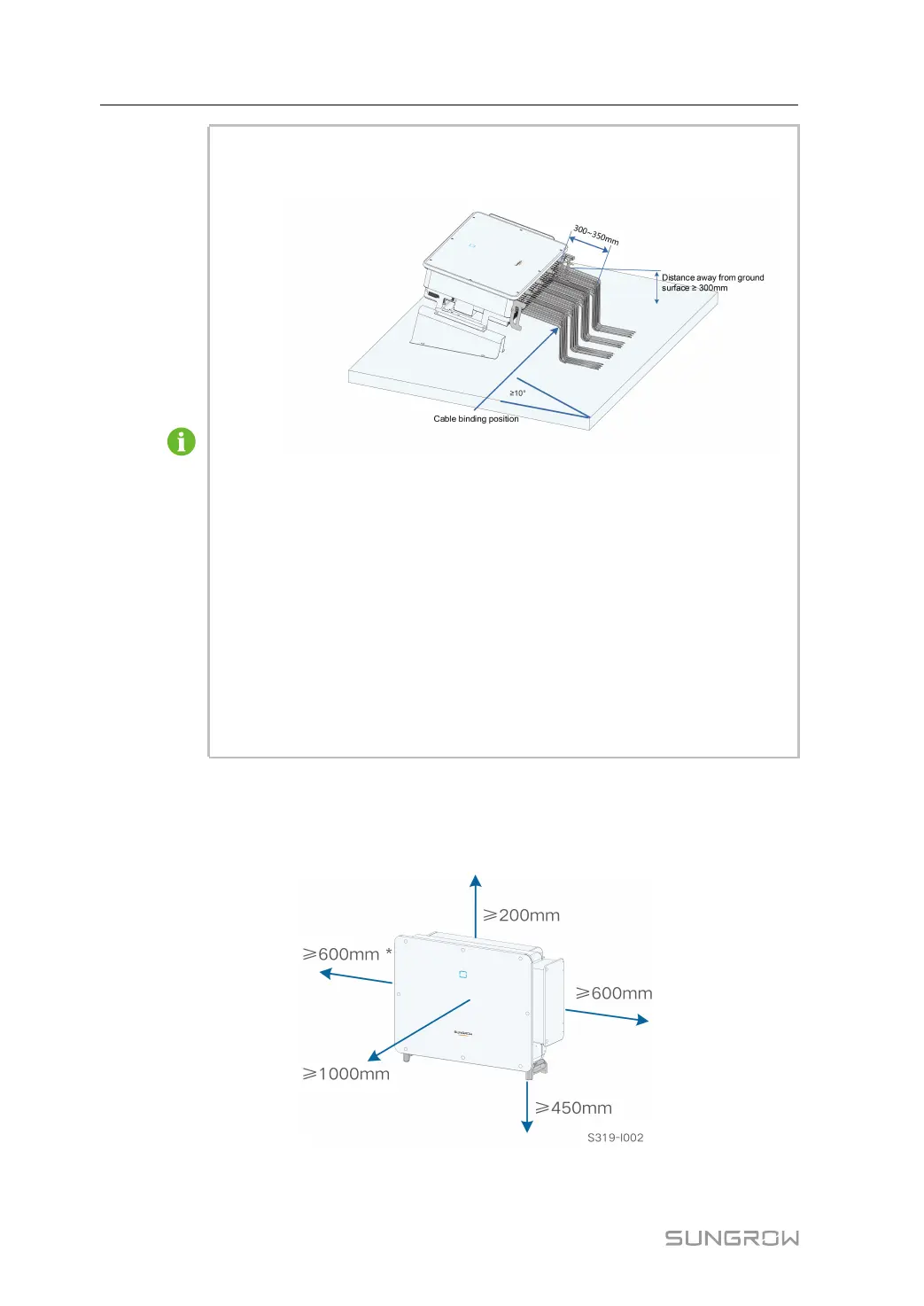

In case the installation site is a level surface, mount the inverter to the bracket to
meet the mounting angle requirements, as shown in the figure below.
Take the following items into account when designing the bracket scheme:
• Consider onsite climate conditions and take anti-snow and anti-rain measures
if necessary.
• Ensure that the waterproof connectors are at least 300 mm higher than the
ground surface.
• Bind the cables at the positions 300~350 mm away from the DC connector, AC
waterproof terminal, and communication waterproof terminal.
• The various waterproof terminals should be tightened in accordance with the
torque requirements in this manual to ensure that they are tight and sealed.
Contact SUNGORW if you have any question.
4.2.4 Clearance Requirements
Reserve enough clearance around the inverter to ensure sufficient space for heat
dissipation.
* In case this distance is less than the distance in the diagram, move the inverter from the
mounting-bracket or wall before maintaining fans.
4 Mechanical Mounting User Manual
