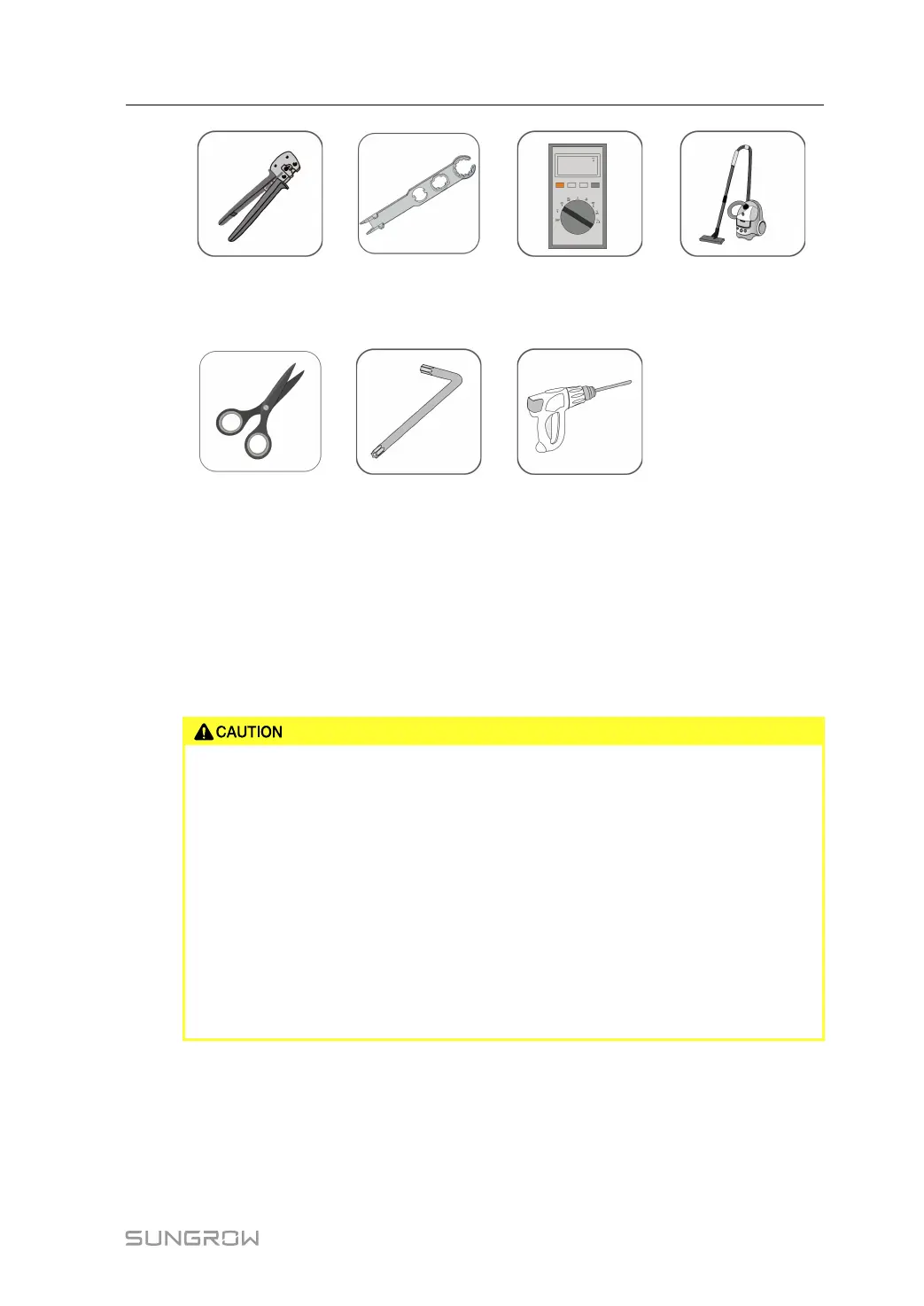

MC4–Evo2 terminal
crimping pliers
4–6mm
2
MC4–Evo2 terminal
wrench
Multimeter
(≥ 1500 Vdc)
Vacuum cleaner
Scissors Hexagon socket
wrench
(T30)
Electric drill
(φ12)
4.4 Moving the Inverter
Move the inverters by carrying them manually or using a hoisting tool based on site
conditions.
Improper handling may cause personal injury!
• Arrange an appropriate number of personnel to carry the inverter according to
its weight, and installation personnel should wear protective equipment such
as anti-impact shoes and gloves.
• Attention must be paid to the center of gravity of the inverter to avoid tilting dur-
ing handling.
• Placing the inverter directly on a hard ground may cause damage to its metal
enclosure. Protective materials such as sponge pad or foam cushion should be
placed underneath the inverter.
• Move the inverter by holding the handles on it. Do not move the inverter by
holding the terminals.
4.4.1 Manual Transport
Attach the four screw-in handles provided to the inverter lugs and base. Lift and move the in-
verter to its destination by means of the bottom handle and the four installed handles.
